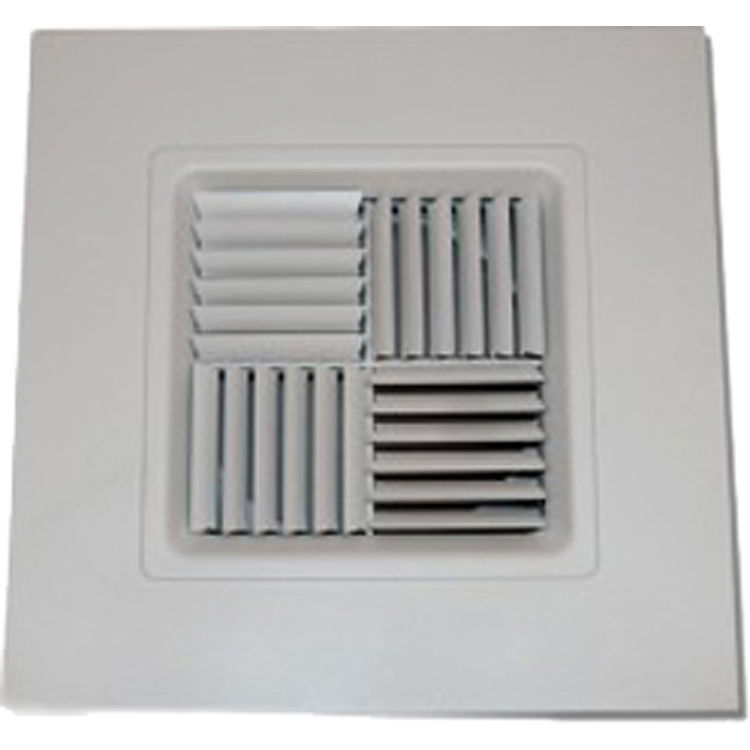

10" x 10" Modular Core Diffuser in T-Bar Panel w/ 7" Collar, White - Shoemaker 700MA-10X10-7

Name: 10" x 10" Modular Core Diffuser in T-Bar Panel w/ 7" Collar, White - Shoemaker 700MA-10X10-7
Brand: Shoemaker
SKU: 134760
Price: 188.00 USD
Availability: InStock

SKU: 134760

$ 188 .00 / ea

4 interest-free payments of $47 with Affirm. See if you qualify

local_shipping Free Shipping

block Non Refundable

Qty

remove

add

inventory_2 Unlimited Availability

add_shopping_cart Add To Cart

local_shipping Manufacturer stocks, ships quickly!

factory Orders from the Manufacturer

You are ordering a Non-Returnable Product

Please make sure you understand the item and the dimensions before ordering.

By Clicking "Add to Cart", you acknowledge that this product is not eligible for returns

Product Details

Manufacturer:	Shoemaker
Use:	Heating and A/C
	Ducting and Venting
Product:	Air Grille and Registers
Color:	Soft White
Mount Type:	Ceiling Mount
Material:	Steel
Type:	Air Diffuser
Shape:	Square
Air Flow Direction:	4-Way
Other Info:	Easy To Install
Mpn #	700MA-10X10-7
Weight	4.00 lbs.

About the Shoemaker 700MA-10X10-7

About the 10" x 10" Modular Core Diffuser in T-Bar Panel w/ 7" Collar, White - Shoemaker 700MA-10X10-7

Shop now for a bargain on the 10" x 10" Modular Core Diffuser in T-Bar Panel with 7" Collar in soft white (Shoemaker 700MA-10X10-7) here at PlumbersStock. The adjustable modular core uses fixed curved blades to maintain horizontal airflow. Standard collar diameter is the same as the diffuser size. It includes a 2-inch ADC compliant round collar with bead for much easier installation. Shoemaker is known for heating and cooling reliability and innovative solutions.

Product Features

Modular cores with fixed curved blade
2 x 2 steel panel with seismic support holes
Moveable cores provide multiple fixed air patterns
Diffuser available in sizes 6 inches x 6 inches through 20 inches x 20 inches
Square to round ADC compliant 2 inches No Labor Collar with roll formed retention bead
Standard collar diameter is the same as the diffuser size
Soft White
Optional Recessed screwdriver operated Opposed Blade Damper (700MA-0)
Optional Square Collar
Optional Non-standard size collar (available in 6 inches through 20 inches collar)
Optional TVB – Thermal Vapor Blanket: 1 inch thick 2 x 2 foil faced insulation blanket
Optional NGD – Narrow Ceiling Grid Dimples for 9/16 inch T-Bar grid applications. Dimples will keep T-Bar centered in narrow grid, improving installation quality and time (700MA-NGD).
Call us, if desired, to order optional designer colors Driftwood Tan, Almond, Black Velvet, Bronze, Camaro Silver, Coffee Tan, Navajo White, Vanilla, Aluminum Paint
