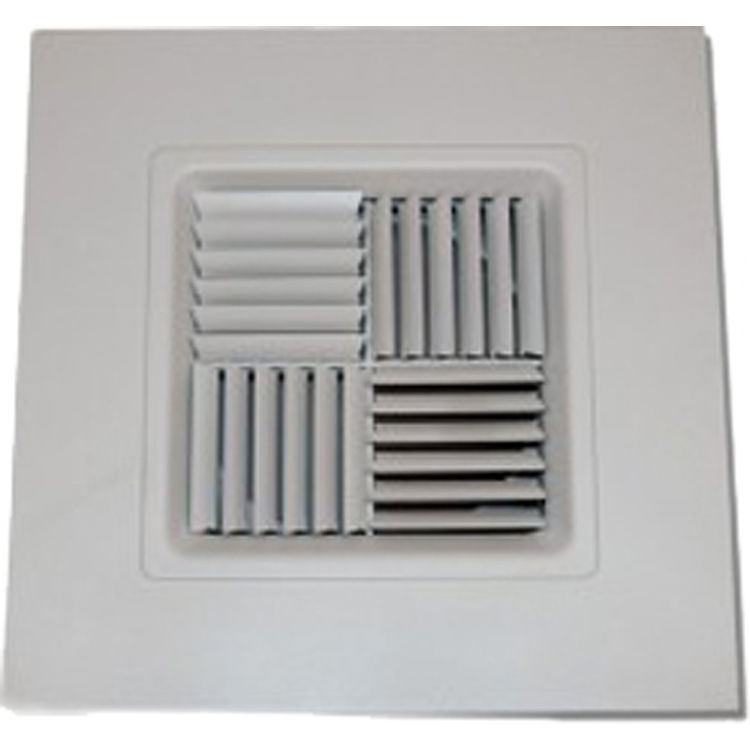

18" x 18" Modular Core Diffuser in T-Bar Panel, OB Damper, White - Shoemaker 700MA-0-18X18

SKU: 137376
$ 316.00 / ea
 Free Shipping!

Exception ocurred: "file_put_contents(../resources/views/storeblade/product_pricing_leadtime.blade.php): failed to open stream: Permission denied"!   Available to Ship in 2-3 weeks

This product is NON-RETURNABLE. Please make sure you understand the item and the dimensions before ordering. By Clicking "Keep in Cart" below you are acknowledging that you understand that this product can not be returned.

18" X 18" Modular Core Diffuser In T-bar Panel, Ob Damper, White - Shoemaker 700MA-0-18X18

SKU: 137376
$316.00/ea


Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks
$316.00/ea

About the Shoemaker 700MA0-18X18

Get a discount on the 18" x 18" Modular Core Diffuser in T-Bar Panel, Opposed Blade Damper in soft white (Shoemaker 700MA-0-18X18) at PlumbersStock.com, where you'll find we are industry leaders. The adjustable modular core uses fixed curved blades to maintain horizontal airflow. Operate the opposed blade damper with screwdriver by turning the recessed screw. Standard collar diameter is the same as the diffuser size. It includes a 2-inch ADC compliant round collar with bead for much easier installation. Shoemaker won't disappoint. Their products are made with integrity and will deliver.

Manufacturer: Shoemaker
Use: Heating and A/C
  Ducting and Venting
Product: Vents and Terminations
Color: White
Mpn # 700MA0-18X18
Weight 12.96 lbs.
  • Recessed screwdriver operated Opposed Blade Damper
  • Modular cores with fixed curved blade
  • 2x2 steel panel with seismic support holes
  • Moveable cores provide multiple fixed air patterns
  • Diffuser available in sizes 6 inches x 6 inches through 20 inches x 20 inches
  • Square to round ADC compliant 2 inches No Labor Collar with roll formed retention bead
  • Standard collar diameter is the same as the diffuser size
  • Soft White
  • Optional Square Collar
  • Optional Non-standard size collar (available in 6 inches through 20 inches collar)
  • Optional TVB – Thermal Vapor Blanket: 1 inch thick 2 x 2 foil faced insulation blanket
  • Optional NGD – Narrow Ceiling Grid Dimples for 9/16 inch T-Bar grid applications. Dimples will keep T-Bar centered in narrow grid, improving installation quality and time (700MA-NGD).
  • Call us, if desired, to order optional designer colors Driftwood Tan, Almond, Black Velvet, Bronze, Camaro Silver, Coffee Tan, Navajo White, Vanilla, Aluminum Paint
