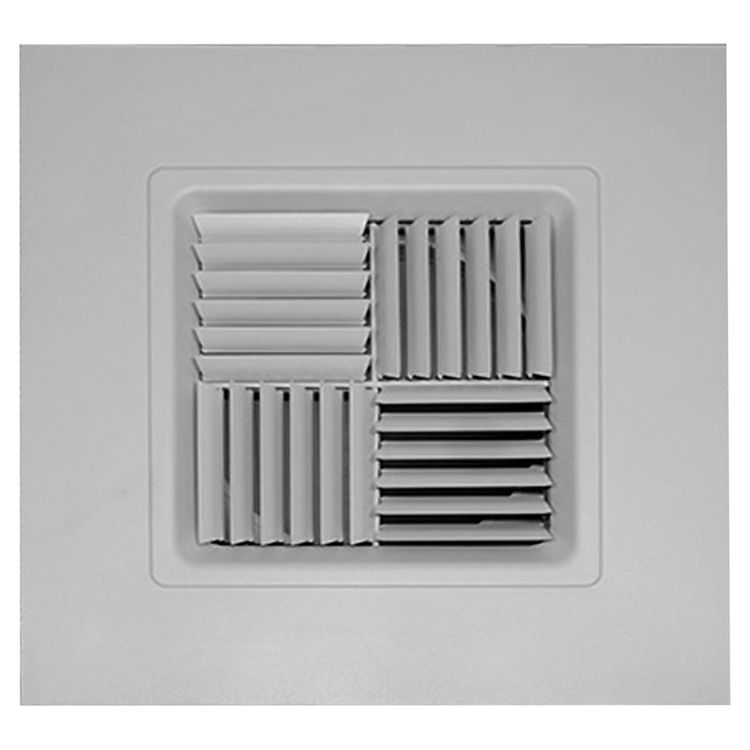

9X9 Soft White Modular Core Diffuser in T-Bar Panel Opposed Blade Damper- Shoemaker 700MA-0

SKU: 134614
Minimum Quantity: 1

$183.00/ea Free Shipping!

In Stock and Ready to Ship!

This product is NON-RETURNABLE. Please make sure you understand the item and the dimensions before ordering. By Clicking "Keep in Cart" below you are acknowledging that you understand that this product can not be returned.

9X9 Soft White Modular Core Diffuser in T-Bar Panel Opposed Blade Damper- Shoemaker 700MA-0

SKU: 134614

Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks

About the Shoemaker 700MA0-9X9

This Soft White 9"x 9" Shoemaker 700MA-0 Series is a modular core diffuser designed with curved blades. This modular core diffuser has a 2 x 2 steel panel with seismic support holes. It has moveable cores that provide multiple fixed air patterns. This modular core diffuser is available in sizes 6”x 6” through 20”x 20”. It has a recessed opposed blade damper operated by a screwdriver. This unique feature gives the user the ability to increase or decrease the air flow without having to worry about others tampering with the desired flow rate. It features a square-to-round ADC-compliant 2” no-labor collar with roll-formed retention beads. The standard collar diameter of this diffuser is the same as the diffuser size. The quality and simplicity of this diffuser are only two of the many reasons why Shoemaker Manufacturing leads the field in innovative air-grille design for real world applications. It guarantees that its products are free from defective materials. Please note that the size of this Shoemaker 700MA-0 shown here is the diffuser size (9"x 9"). Standard size collars (9") or non-standard size collars (6" to 20") are available. Refer to the Specification Sheet for more information.

Product Details

Product: Vents and Terminations
Manufacturer: Shoemaker
Use: Ducting and Venting
Material: Steel
Color: White
Mpn # 700MA0-9X9
Weight 3.24 lbs.

Product Features

  • Recessed screwdriver operated Opposed Blade Damper
  • Modular cores with fixed curved blade
  • 2 x 2 steel panel with seismic support holes
  • Moveable cores provide multiple fixed air patterns
  • Diffuser available in sizes 6 inches x 6 inches through 20 inches x 20 inches
  • Square to round ADC compliant 2 inches No Labor Collar with roll formed retention bead
  • Standard collar diameter is the same as the diffuser size
  • Soft White
  • Optional Square Collar
  • Optional Non-standard size collar (available in 6 inches through 20 inches collar)
  • Optional TVB Thermal Vapor Blanket: 1 inch thick 2 x 2 foil faced insulation blanket
  • Optional NGD Narrow Ceiling Grid Dimples for 9/16 inch T-Bar grid applications. Dimples will keep T-Bar centered in narrow grid, improving installation quality and time (700MA-NGD).
  • Call us, if desired, to order optional designer colors Driftwood Tan, Almond, Black Velvet, Bronze, Camaro Silver, Coffee Tan, Navajo White, Vanilla, Aluminum Paint
