Shoemaker 901-0-24X20 24

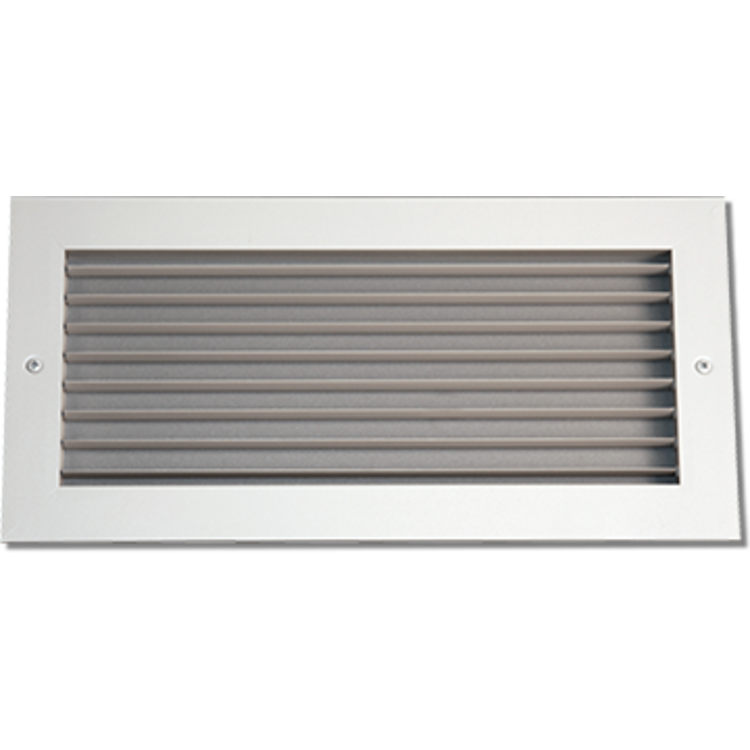

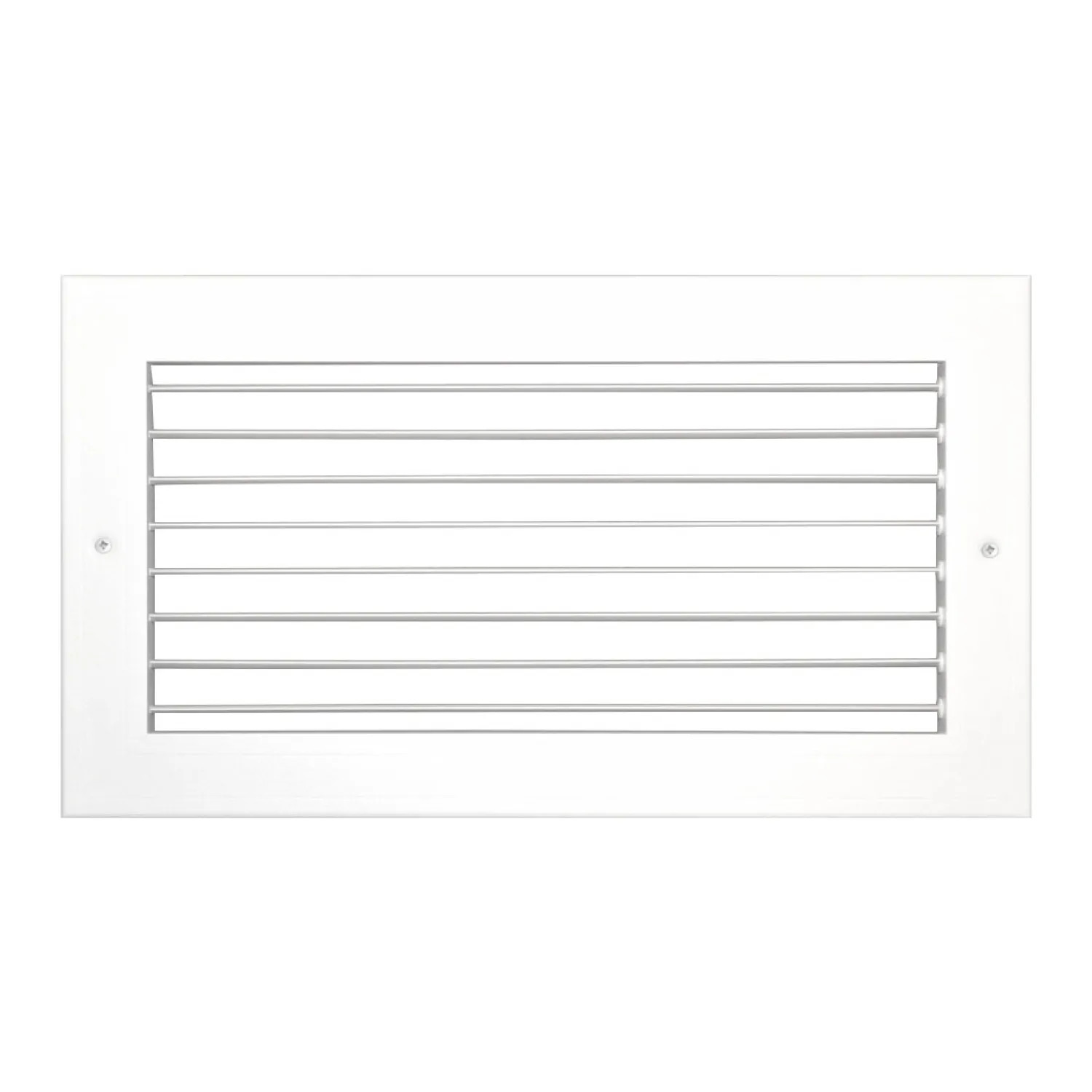

24" x 20" Single Deflection Adjustable Grille, Parallel to Long Dimension, Opposed Blade Damper, White - Shoemaker 901-0-24X20

SKU: 135728
$221.00/ea
 Free Shipping!

  Available to Ship in 2-3 weeks

This product is NON-RETURNABLE. Please make sure you understand the item and the dimensions before ordering. By Clicking "Keep in Cart" below you are acknowledging that you understand that this product can not be returned.

24" X 20" Single Deflection Adjustable Grille, Parallel To Long Dimension, Opposed Blade Damper, White - Shoemaker 901-0-24X20

SKU: 135728
$221.00/ea


Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks
$221.00/ea

About the Shoemaker 901-0-24X20

Enjoy bargain pricing on the 24" x 20" Single Deflection Adjustable Grille, Parallel to Long Dimension, Opposed Blade Damper in white (Shoemaker 901-0-24X20) with the experts at PlumbersStock. The airfoil aluminum blades are adjustable and run parallel to the longest dimension. It provides 2-way airflow on one plane. It runs quietly because of nylon bushings that prevent metal from rattling. The opposed blade damper is adjustable with the use of a screwdriver. Shoemaker manufactures heating and cooling solutions that are both innovative and practical.

The Shoemaker 901-0 Series vent cover comes with a recessed screwdriver-operated opposed blade damper. It is used to regulate the airflow through linked sections of adjacent blades that rotate in the opposite direction. Compared to other damper types, an opposed blade damper maintains a more even airflow. It also provides better control over the airflow in all operating positions. A recessed screwdriver-operated damper prevents any unnecessary adjustments of the damper setting. Be sure to measure the hole opening size instead of measuring the face plate of your old grille. This grille is designed to fit over a 24" x 20" existing hole or duct. Refer to the Specification Sheet for more information.

Manufacturer: Shoemaker
Material: Aluminum
Product: Air Grille and Registers
Style: Parts
Color: White
Mpn # 901-0-24X20
Weight 19.20 lbs.
  • Optional tamper-proof screws are available
  • Optional square to round ADC compliant 2 inches No Labor Collar with roll formed retention bead, available in square sizes only (901-NLC)
  • Optional heavy duty construction (901-HD)
  • Optional insect screen (901-IS)
  • Optional fractional I.D and O.D sizes available
  • Optional designer colors: almond, black velvet, bronze, Camaro silver, coffee tan, Navajo white, vanilla
  • Optional finishes available: satin anodized, mill
  • 901-O Recessed screwdriver operated opposed blade damper
  • Airfoil blades are parallel to longest dimension
  • Allows 2-way air deflection on one plane
  • Countersunk mounting holes for flush appearance with color matching Phillips posi-drive screws
  • Aluminum .055 T6 surface mount diffuser
  • Fractional sizes, inner dimension and outside dimension available
  • Nylon bushings for easy adjustment and quiet setting of airfoil blades
  • Isolated deflection diffuser with movable airfoil blades
