36X12 White Vent Cover (Aluminum) – Shoemaker 901 Series

SKU: 132413

$130.00/ea

In Stock and Ready to Ship! (May quick-ship direct from manufacturer)

Ships From	Price	Qty
Order From Manufacturer Available to Ship in 4-5 weeks	$130.00/ea	∞

About the Shoemaker 901-36X12

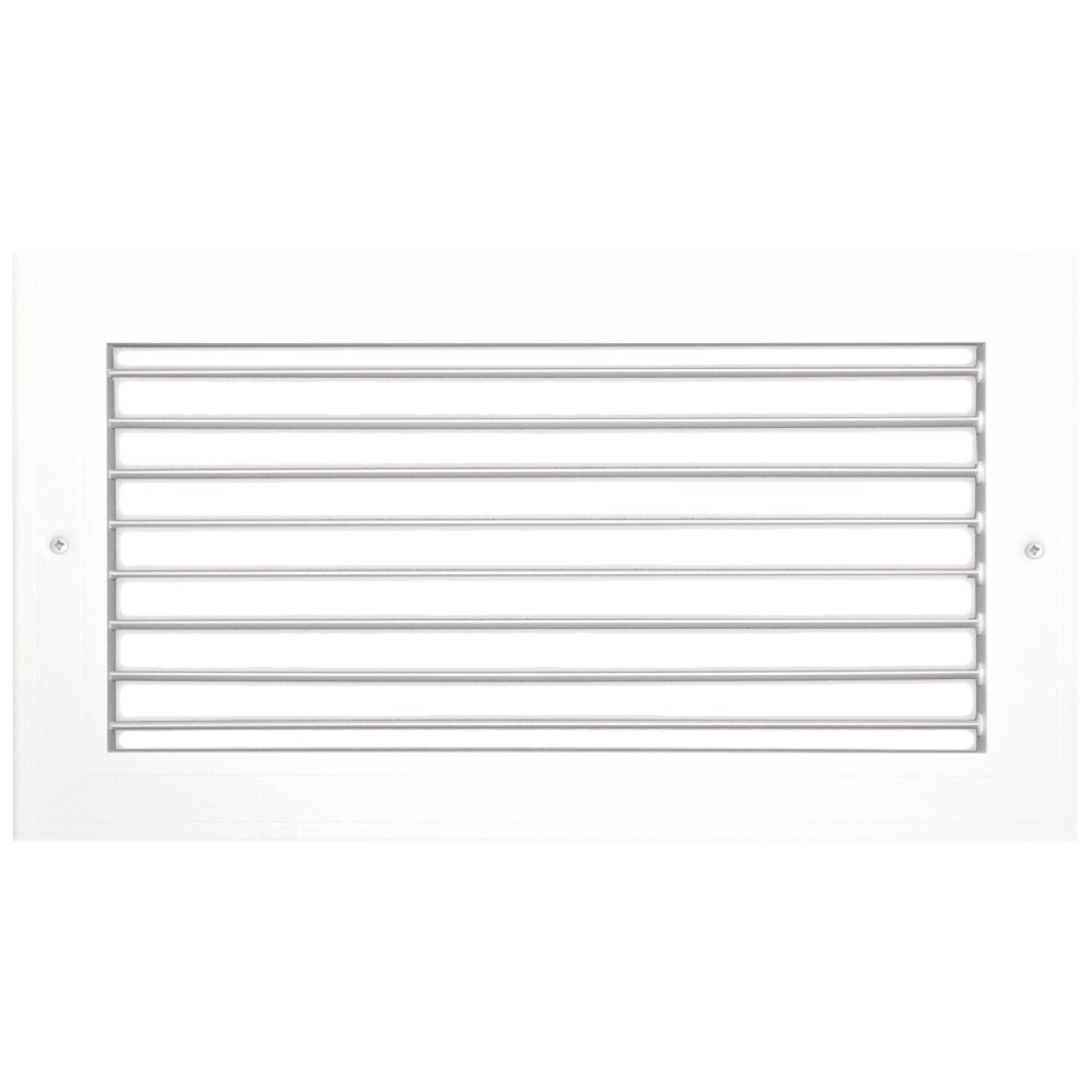

This White 36" x 12" Shoemaker 901 Series Vent Cover is designed to fit and cover a 36" wide by 12" high opening. Shoemaker has a complete line of products designed for homes, offices, stores, and many other commercial applications. The quality and simplicity of this airfoil blade single deflection diffuser are only two of the many reasons why Shoemaker Manufacturing leads the field in innovative air-grille design for real world applications. The Shoemaker 901 Series Aluminum Airfoil Blade Single Deflection Diffuser creates a 2-way air flow in a single plane. Its airfoil blades have nylon bushings for easy adjustment and quiet settings. The adjustable louvers on this particular air-grille run parallel to the longest dimension. Its aluminum frame is extruded with signature line marks. Normally, vent covers are mounted in walls but this diffuser can be mounted in ceilings as well. The standard color of this grille is soft white but it is also available in driftwood tan. Optional designer colors, satin anodized aluminum and plain mill finishes are also available. The Shoemaker 901 Series Aluminum Airfoil Blade Single Deflection can be ordered with "F" Torx center pin tamper-proof screws for added security. Be sure to measure the hole opening size instead of measuring the face plate of your old grille. This grille is designed to fit over a 36" x 12" existing hole or duct. Refer to the Specification Sheet for more information.

Product Details

Product:	Air Grille and Registers
Manufacturer:	Shoemaker
Use:	Ducting and Venting
Mpn #	901-36X12
Weight	17.28 lbs.

Product Features

Optional tamper-proof screws are available
Optional recessed screwdriver operated opposed blade damper (901-O)
Optional square to round ADC compliant 2 inches No Labor Collar with roll formed retention bead, available in square sizes only (901-NLC)
Optional heavy duty construction (901-HD)
Optional insect screen (901-IS)
Optional fractional I.D and O.D sizes available
Optional designer colors: almond, black velvet, bronze, Camaro silver, coffee tan, Navajo white, vanilla
Optional finishes available: satin anodized, mill
Airfoil blades are parallel to longest dimension
Allows 2-way air deflection on one plane
Countersunk mounting holes for flush appearance with color matching Phillips posi-drive screws
Aluminum .055 T6 surface mount diffuser
Fractional sizes, inner dimension and outside dimension available
Nylon bushings for easy adjustment and quiet setting of airfoil blades
Isolated deflection diffuser with movable airfoil blades
Soft white
