36" X 20" Single Deflection Adjustable Grille, Parallel To Long Dimension, White - Shoemaker 901-36X20
SKU: 135243
$203.00/ Free Shipping!
Save 36% · Retail: $316.02

   Available to Ship in 6-8 weeks

About the Shoemaker 901-36X20

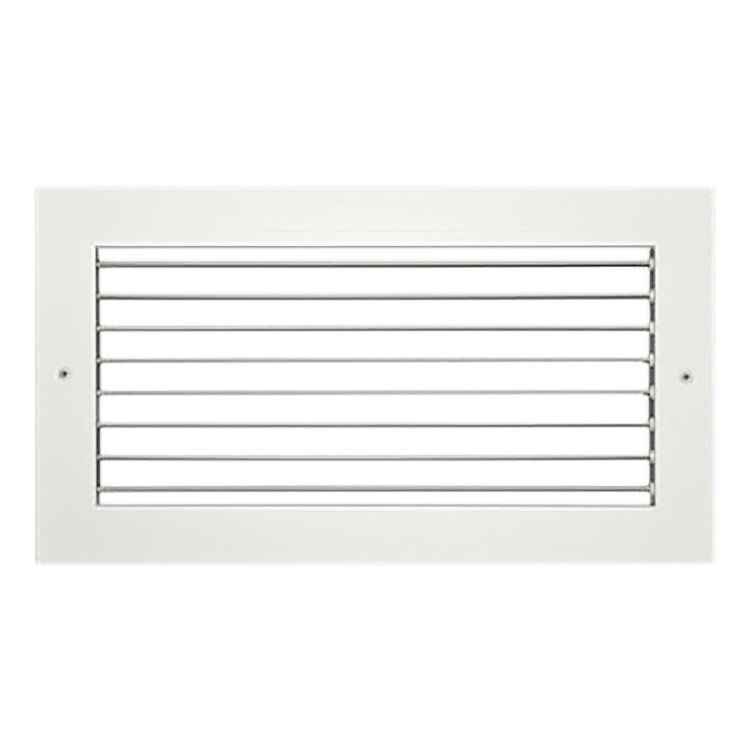

Shop now for a bargain on the 36" x 20" Single Deflection Adjustable Grille, Parallel to Long Dimension in white (Shoemaker 901-36X20) with the HVAC professionals at PlumbersStock. The 901 series airfoil aluminum blades are adjustable and run parallel to the longest dimension. It provides 2-way airflow on one plane. It runs quietly because of nylon bushings that prevent metal from rattling. The grille does not come with a damper, you need to look to the 901-O series. Shoemaker is a leader in the industry for obvious reasons. They make great HVAC solutions.

The Shoemaker 901 Series Aluminum Airfoil Blade Single Deflection can be ordered with "F" Torx center pin tamper-proof screws for added security. Be sure to measure the hole opening size instead of measuring the face plate of your old grille. This grille is designed to fit over a 36" x 20" existing hole or duct. Refer to the Specification Sheet for more information.

Product Details

Manufacturer: Shoemaker
Product: Air Grille and Registers
Color: Soft White
Mount Type: Ceiling/Wall
Material: Aluminum
Type: Air Deflector
Shape: Rectangle
Use: Ducting and Venting
Other Info: Easy To Install
Mpn # 901-36X20
Dimensions 0 " X 0 " X 0 "
Weight 28.8 lbs.

Product Features

  • Optional tamper-proof screws are available
  • Optional recessed screwdriver operated opposed blade damper (901-O)
  • Optional square to round ADC compliant 2 inches No Labor Collar with roll formed retention bead, available in square sizes only (901-NLC)
  • Optional heavy duty construction (901-HD)
  • Optional insect screen (901-IS)
  • Optional fractional I.D and O.D sizes available
  • Optional designer colors: almond, black velvet, bronze, Camaro silver, coffee tan, Navajo white, vanilla
  • Optional finishes available: satin anodized, mill
  • Airfoil blades are parallel to longest dimension
  • Allows 2-way air deflection on one plane
  • Countersunk mounting holes for flush appearance with color matching Phillips posi-drive screws
  • Aluminum .055 T6 surface mount diffuser
  • Fractional sizes, inner dimension and outside dimension available
  • Nylon bushings for easy adjustment and quiet setting of airfoil blades
  • Isolated deflection diffuser with movable airfoil blades
  • Soft white
