Shoemaker 901-48X12 48

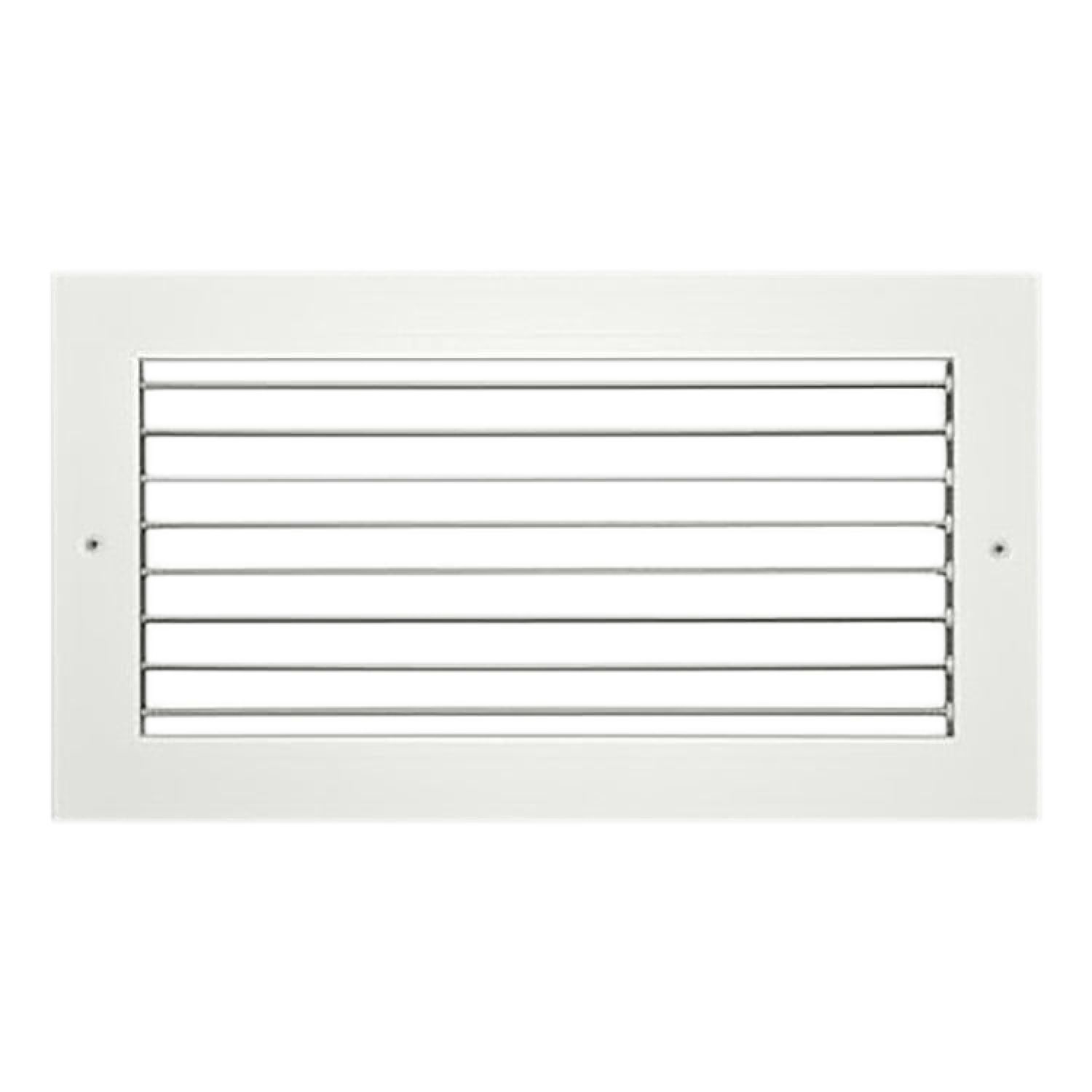

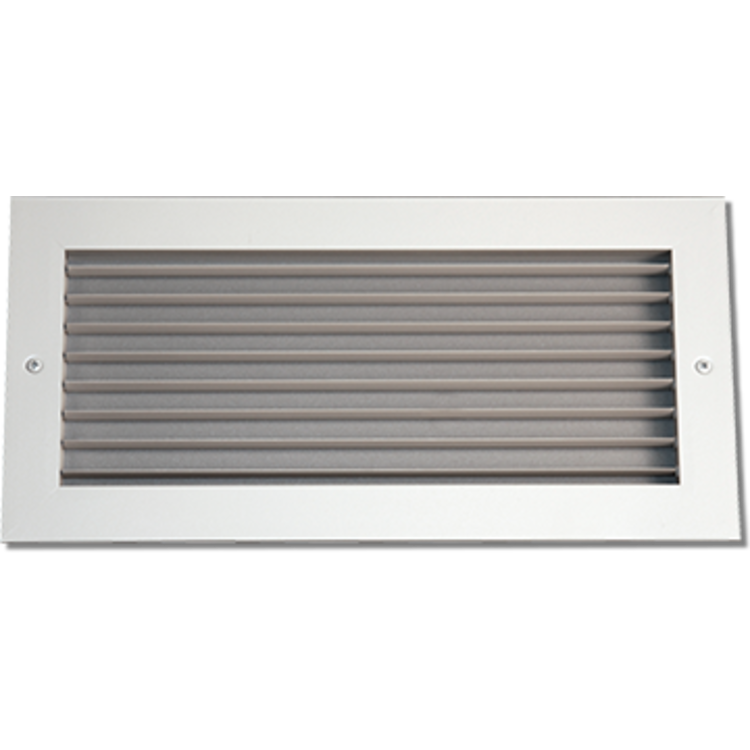

48" x 12" Single Deflection Adjustable Grille, Parallel to Long Dimension, White - Shoemaker 901-48X12

SKU: 134618
$ 183.00 / ea
 Free Shipping!

  Available to Ship in 2-3 weeks

This product is NON-RETURNABLE. Please make sure you understand the item and the dimensions before ordering. By Clicking "Keep in Cart" below you are acknowledging that you understand that this product can not be returned.

48" X 12" Single Deflection Adjustable Grille, Parallel To Long Dimension, White - Shoemaker 901-48X12

SKU: 134618
$183.00/ea


Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks
$183.00/ea

About the Shoemaker 901-48X12

Be sure to take advantage of this deal on the 48" x 12" Single Deflection Adjustable Grille, Parallel to Long Dimension in white (Shoemaker 901-48X12) here online at PlumbersStock. The 901 series airfoil aluminum blades are adjustable and run parallel to the longest dimension. It provides 2-way airflow on one plane. It runs quietly because of nylon bushings that prevent metal from rattling. The grille does not come with a damper, you need to look to the 901-O series. Shoemaker is known for heating and cooling reliability and innovative solutions.

The Shoemaker 901 Series Aluminum Airfoil Blade Single Deflection can be ordered with "F" Torx center pin tamper-proof screws for added security. Be sure to measure the hole opening size instead of measuring the face plate of your old grille. This grille is designed to fit over a 48" x 12" existing hole or duct. Refer to the Specification Sheet for more information.

Manufacturer: Shoemaker
Color: White
Material: Aluminum
Product: Air Grille and Registers
Mpn # 901-48X12
Weight 23.04 lbs.
  • Optional tamper-proof screws are available
  • Optional recessed screwdriver operated opposed blade damper (901-O)
  • Optional square to round ADC compliant 2 inches No Labor Collar with roll formed retention bead, available in square sizes only (901-NLC)
  • Optional heavy duty construction (901-HD)
  • Optional insect screen (901-IS)
  • Optional fractional I.D and O.D sizes available
  • Optional designer colors: almond, black velvet, bronze, Camaro silver, coffee tan, Navajo white, vanilla
  • Optional finishes available: satin anodized, mill
  • Airfoil blades are parallel to longest dimension
  • Allows 2-way air deflection on one plane
  • Countersunk mounting holes for flush appearance with color matching Phillips posi-drive screws
  • Aluminum .055 T6 surface mount diffuser
  • Fractional sizes, inner dimension and outside dimension available
  • Nylon bushings for easy adjustment and quiet setting of airfoil blades
  • Isolated deflection diffuser with movable airfoil blades
  • Soft white
