16X4 White Vent Cover (Aluminum) – Shoemaker 903-0 Series

SKU: 130474
$95.31/ea Free Shipping!

   Available to Ship in 8-10 days

This product is NON-RETURNABLE. Please make sure you understand the item and the dimensions before ordering. By Clicking "Keep in Cart" below you are acknowledging that you understand that this product can not be returned.

16X4 White Vent Cover (Aluminum) – Shoemaker 903-0 Series

SKU: 130474

Ships From Price Qty
Order From Manufacturer
Available to Ship in 8-10 days

About the Shoemaker 903-0-16X4

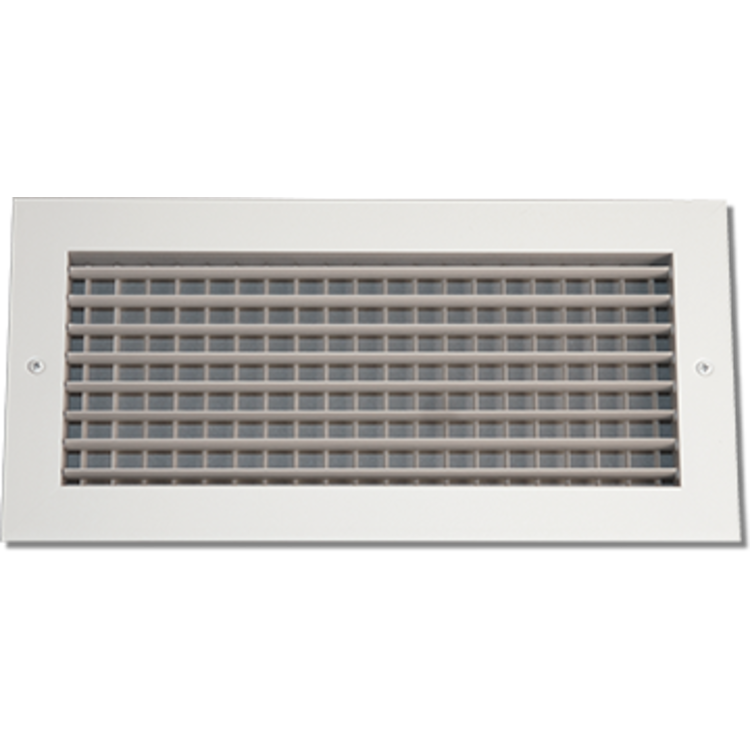

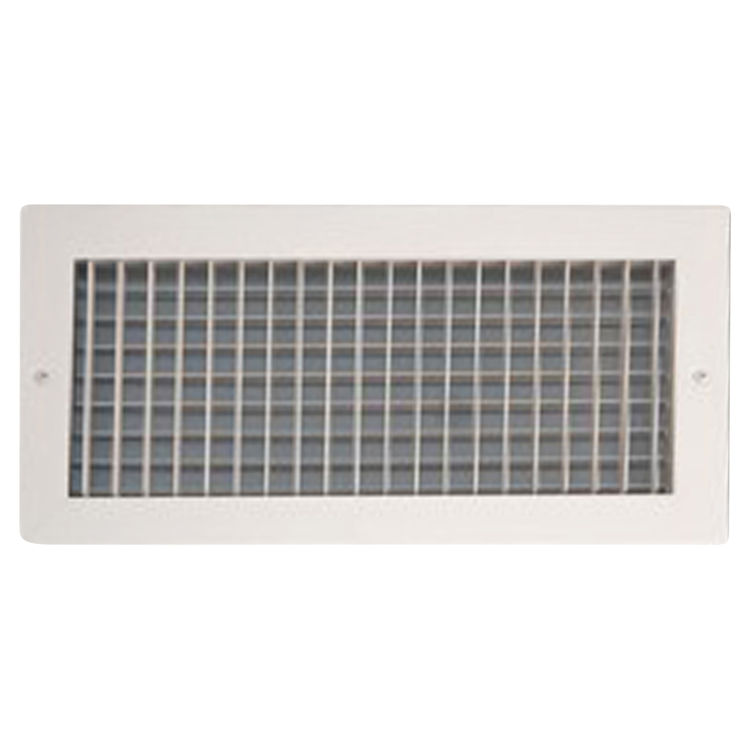

This White 16" x 4" Shoemaker 903-0 Series Vent Cover is designed to fit and cover a 16” wide by 4” high opening. Shoemaker has a complete line of products designed for homes, offices, stores, and many other commercial applications. The quality and simplicity of this airfoil blade double deflection diffuser are only two of the many reasons why Shoemaker Manufacturing leads the field in innovative air-grille design for real world applications. The Shoemaker 903-0 Series Aluminum Airfoil Blade Double Deflection Diffuser creates a 4-way air flow in a single plane. Its airfoil blades have nylon bushings for easy adjustment and quiet settings. The adjustable front louvers on this particular air-grille run parallel to the longest dimension while the adjustable back louvers run parallel to the shortest dimension. It has an extruded aluminum surface mount frame with signature line marks. For a smooth appearance, it has countersunk mounting holes with Phillips posi-drive screws with colors that match the vent cover The Shoemaker 903-0 Series vent cover comes with a recessed screwdriver-operated opposed blade damper. It is used to regulate the airflow through linked sections of adjacent blades that rotate in the opposite direction. Compared to other damper types, an opposed blade damper maintains a more even airflow. It also provides better control over the airflow in all operating positions. A recessed screwdriver-operated damper prevents any unnecessary adjustments of the damper setting. The standard color of this grille is soft white but it is also available in driftwood tan. Optional designer colors, satin anodized aluminum and plain mill finishes are also available. The Shoemaker 903-0 Series Aluminum Airfoil Blade Double Deflection Diffuser can be ordered with “F” Torx center pin tamper-proof screws for added security. Be sure to measure the hole opening size instead of measuring the face plate of your old grille. This grille is designed to fit over a 16" x 4" existing hole or duct. Refer to the Specification Sheet for more information.

Product Details

Product: Air Grille and Registers
Manufacturer: Shoemaker
Use: Ducting and Venting
Type: Air Grille
Material: Aluminum
Mpn # 903-0-16X4
Weight 2.56 lbs.

Product Features

  • Optional tamper-proof screws are available
  • Optional insect screen (903-IS)
  • Optional heavy duty construction (903-HD)
  • 903-O recessed screwdriver operated opposed blade damper
  • Optional square to round ADC compliant 2 inches No Labor Collar with roll formed retention bead, available in square sizes only (903-NLC)
  • Optional designer colors: almond, black velvet, bronze, Camaro silver, coffee tan, Navajo white, vanilla
  • Optional finishes available: satin anodized, mill
  • Optional fractional I.D and O.D sizes available
  • Rust-resistant precoat with durable powder finish
  • Front blades are parallel to longest dimension
  • Back blades are parallel to shortest dimension
  • Allows 4-way air deflection on one plane
  • Countersunk mounting holes for flush appearance with color matching Phillips posi-drive screws
  • Nylon bushings for easy adjustment and quiet setting of airfoil blades
  • Standard colors: soft white, driftwood tan
