Shoemaker 904-20X14 20

20" x 14" Double Deflection Adjustable Grille, Front Blades Parallel to Short Dimension, White - Shoemaker 904-20X14

SKU: 132551
$ 132.00 / ea
 Free Shipping!

Exception ocurred: "file_put_contents(../resources/views/storeblade/product_pricing_leadtime.blade.php): failed to open stream: Permission denied"!   Available to Ship in 2-3 weeks

This product is NON-RETURNABLE. Please make sure you understand the item and the dimensions before ordering. By Clicking "Keep in Cart" below you are acknowledging that you understand that this product can not be returned.

20" X 14" Double Deflection Adjustable Grille, Front Blades Parallel To Short Dimension, White - Shoemaker 904-20X14

SKU: 132551
$132.00/ea


Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks
$132.00/ea

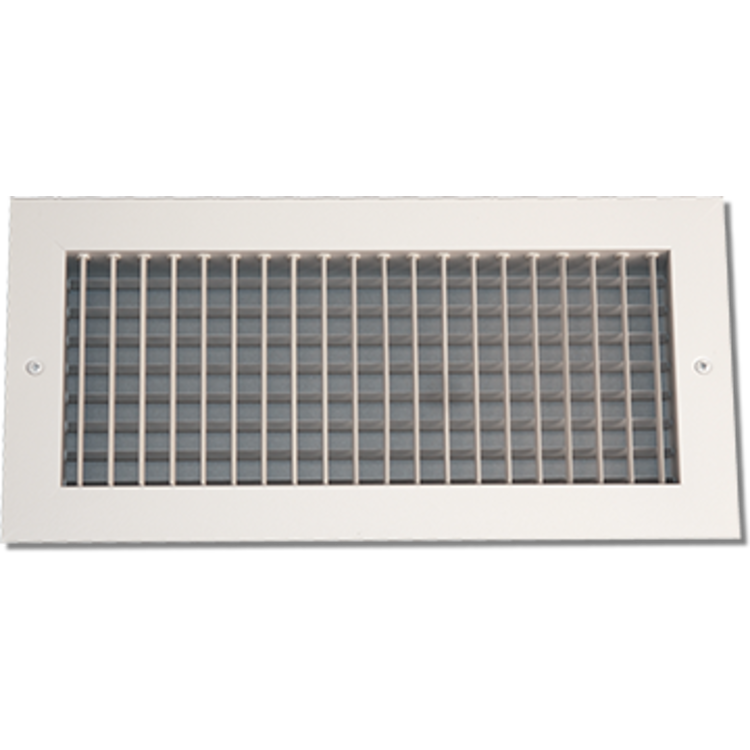

About the 20" x 14" Double Deflection Adjustable Grille, Front Blades Parallel to Short Dimension, White - Shoemaker 904-20X14

Shop now and get the 20" x 14" Double Deflection Adjustable Grille, Front Blades Parallel to Short Dimension in soft white (Shoemaker 904-20X14) here at our online store, PlumbersStock.com. The 904 series airfoil aluminum blades are adjustable so you can diffuse the air how you please. It provides 4-way airflow on one plane. It runs quietly because of nylon bushings that prevent metal from rattling. The front blades are parallel to the shortest dimension, and the back blades are parallel to the longest dimension. This grille does not come with a damper, you need to look to the 904-O series. Shoemaker won't disappoint. Their products are made with integrity and will deliver.

Manufacturer: Shoemaker
Color: White
Material: Aluminum
Product: Air Grille and Registers
Mpn # 904-20X14
Weight 11.20 lbs.
  • Optional tamper-proof screws are available
  • Optional insect screen (904-IS)
  • Optional heavy duty construction (904-HD)
  • Optional recessed screwdriver operated opposed blade damper (904-O)
  • Optional square to round ADC compliant 2 inches No Labor Collar with roll formed retention bead, available in square sizes only (904-NLC)
  • Optional fractional I.D and O.D sizes available
  • Optional finishes available: satin anodized, mill
  • Optional designer colors: almond, black velvet, bronze, Camaro silver, coffee tan, Navajo white, vanilla
  • Front blades are parallel to shortest dimension
  • Back blades are parallel to longest dimension
  • Allows 4-way air deflection on one plane
  • Aluminum .055 T6 surface mount diffuser
  • Fractional sizes, inner dimension and outside dimension available
  • Nylon bushings for easy adjustment and quiet setting of airfoil blades
  • Countersunk mounting holes for flush appearance with color matching Phillips posi-drive screws
  • Standard colors: soft white, driftwood tan
