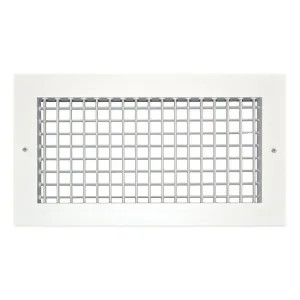

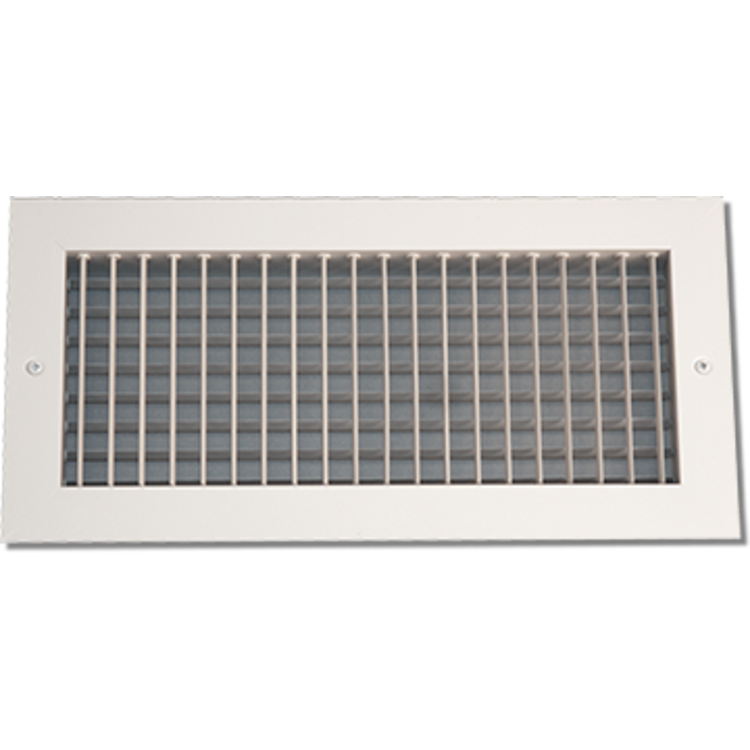

30" x 10" Double Deflection Adjustable Grille, Front Blades Parallel to Short Dimension, White - Shoemaker 904-30X10

Name: 30" x 10" Double Deflection Adjustable Grille, Front Blades Parallel to Short Dimension, White - Shoemaker 904-30X10
Brand: Shoemaker
SKU: 133686
Price: 158.00 USD
Availability: InStock

SKU: 133686

-26.7%

$ 158 .00 / ea

$ 215 .51 / ea

local_shipping Free Shipping

block Non Refundable

Qty

remove

add

inventory_2 Unlimited Availability

add_shopping_cart Add To Cart

local_shipping Manufacturer stocks, ships quickly!

factory Orders from the Manufacturer

You are ordering a Non-Returnable Product

Please make sure you understand the item and the dimensions before ordering.

By Clicking "Add to Cart", you acknowledge that this product is not eligible for returns

Product Details

Manufacturer:	Shoemaker
Product:	Air Grille and Registers
Color:	Soft White
Air Flow Direction:	4-Way
Mount Type:	Ceiling/Wall
Material:	Aluminum
Type:	Air Deflector
Shape:	Rectangle
Use:	Ducting and Venting
Other Info:	Easy To Install
Mpn #	904-30X10
Weight	12.00 lbs.

About the Shoemaker 904-30X10

About the 30" x 10" Double Deflection Adjustable Grille, Front Blades Parallel to Short Dimension, White - Shoemaker 904-30X10

Save on the 30" x 10" Double Deflection Adjustable Grille, Front Blades Parallel to Short Dimension in soft white (Shoemaker 904-30X10) while it's still available here at PlumbersStock.com. The 904 series airfoil aluminum blades are adjustable so you can diffuse the air how you please. It provides 4-way airflow on one plane. It runs quietly because of nylon bushings that prevent metal from rattling. The front blades are parallel to the shortest dimension, and the back blades are parallel to the longest dimension. This grille does not come with a damper, you need to look to the 904-O series. Shoemaker is a reputable heating and cooling manufacturer and we are so proud to carry their products.

Product Features

Optional tamper-proof screws are available
Optional insect screen (904-IS)
Optional heavy duty construction (904-HD)
Optional recessed screwdriver operated opposed blade damper (904-O)
Optional square to round ADC compliant 2 inches No Labor Collar with roll formed retention bead, available in square sizes only (904-NLC)
Optional fractional I.D and O.D sizes available
Optional finishes available: satin anodized, mill
Optional designer colors: almond, black velvet, bronze, Camaro silver, coffee tan, Navajo white, vanilla
Front blades are parallel to shortest dimension
Back blades are parallel to longest dimension
Allows 4-way air deflection on one plane
Aluminum .055 T6 surface mount diffuser
Fractional sizes, inner dimension and outside dimension available
Nylon bushings for easy adjustment and quiet setting of airfoil blades
Countersunk mounting holes for flush appearance with color matching Phillips posi-drive screws
Standard colors: soft white, driftwood tan
