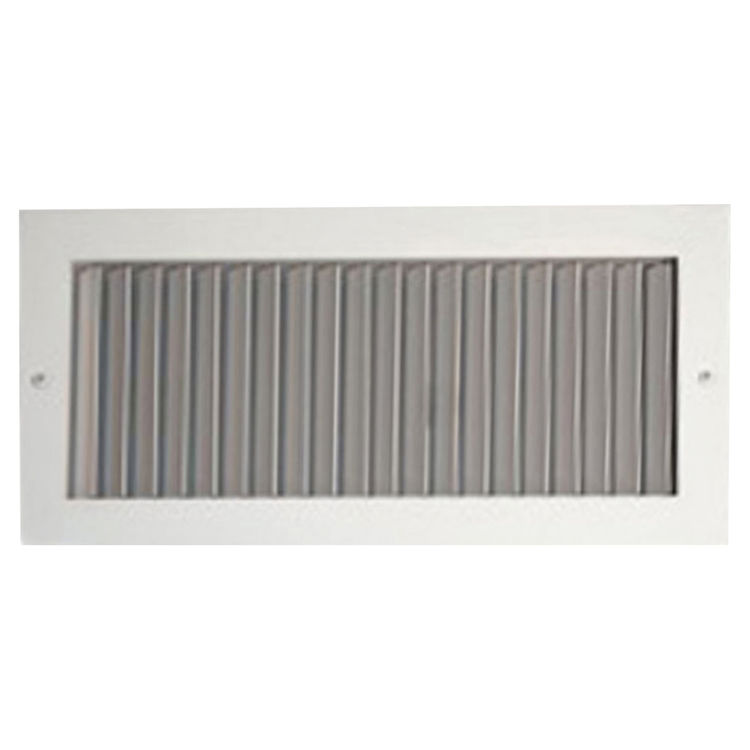

This White 30" x 8" Shoemaker 932-0 Series Vent Cover is designed to fit and cover a 30" wide by 8" high opening. Shoemaker has a complete line of products designed for homes, offices, stores, and many other commercial applications. The quality and simplicity of this airfoil blade single deflection diffuser are only two of the many reasons why Shoemaker Manufacturing leads the field in innovative air-grille design for real world applications. The Shoemaker 932-0 Series Steel Adjustable Blade Single Deflection Diffuser creates a 2-way air flow in a single plane. Its blades have nylon bushings for easy adjustment and quiet settings. The adjustable louvers on this particular air grille run parallel to the shortest dimension. For a smooth appearance, it has countersunk mounting holes with Phillips posi-drive screws with colors that match the vent cover. The Shoemaker 932-0 Series vent cover comes with a recessed screwdriver-operated opposed blade damper. It is used to regulate the airflow through linked sections of adjacent blades that rotate in the opposite direction. Compared to other damper types, an opposed blade damper maintains a more even airflow. It also provides better control over the airflow in all operating positions. A recessed screwdriver-operated damper prevents any unnecessary adjustments of the damper setting. The standard color of this grille is soft white. The Shoemaker 932-0 Series Steel Adjustable Blade Single Deflection Diffuser can be ordered with "F" Torx center pin tamper-proof screws for added security. Be sure to measure the hole opening size instead of measuring the face plate of your old grille. This grille is designed to fit over a 30" x 8" existing hole or duct. Refer to the Specification Sheet for more information.
|Product:||Vents and Terminations|
|Air Grille and Registers|
|Use:||Heating and A/C|
|Ducting and Venting|
