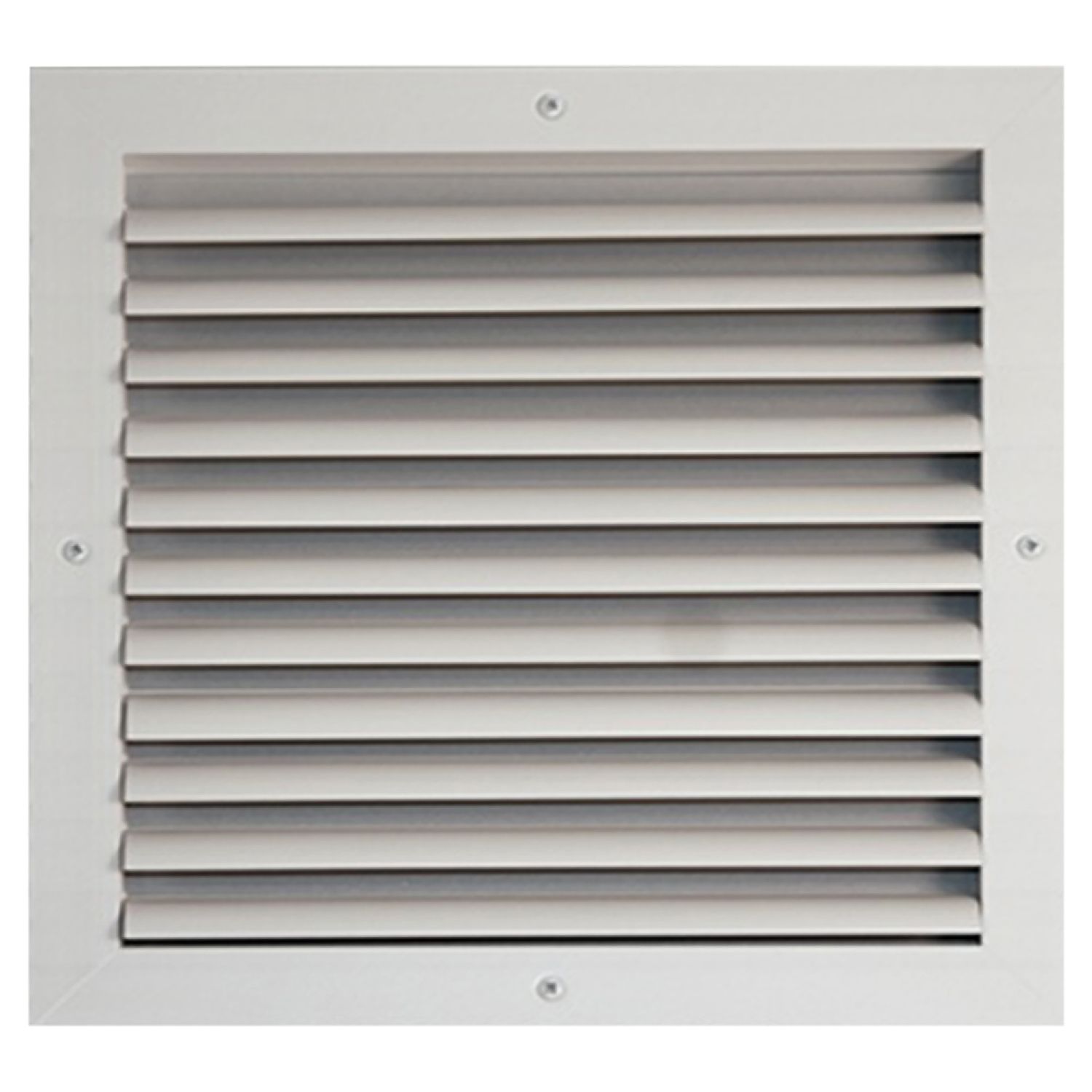

Shoemaker CB10-16X16 16X16 Soft White One-Way Adjustable Curved Blade Diffuser (Aluminum) - Shoemaker CB10
View 2 of Shoemaker CB10-16X16 16X16 Soft White One-Way Adjustable Curved Blade Diffuser (Aluminum) - Shoemaker CB10
View 3 of Shoemaker CB10-16X16 16X16 Soft White One-Way Adjustable Curved Blade Diffuser (Aluminum) - Shoemaker CB10

16X16 Soft White One-Way Adjustable Curved Blade Diffuser (Aluminum) - Shoemaker CB10

SKU: 131701
Manufacturer Image
-42.3%
$ 66 .93 / ea
$ 116 .00 / ea
visa mastercard american-express discover paypal crypto
local_shipping Free Shipping
block Non Refundable
Qty
inventory_2 1 in Stock
add_shopping_cart Add To Cart
local_shipping In Stock and Ready to Ship
warehouse Ships from Cedar City Utah Warehouse

About the 16X16 Soft White One-Way Adjustable Curved Blade Diffuser (Aluminum) - Shoemaker CB10

The Shoemaker CB10 Series offers a smooth and quiet air dispersion it comes with concealed mounting holes to give a sleek and subtle over all look.

Manufacturer: Shoemaker
Use: Heating and A/C
  Ducting and Venting
Color: Soft White
Type: Air Diffuser
Style: Parts
Product: Vents and Terminations
Mpn # CB10-16X16
Weight 10.24 lbs.
  • One-way air pattern (CB10)
  • Extruded aluminum surface mount frame with signature line marks
  • Adjustable aluminum curved blades set in nylon bushings for easy and quiet setting of blades
  • Designed for one-way air deflection
  • Countersunk mounting holes for flush appearance with color matching Philips posi-drive screws
  • Standard color is Soft White and Driftwood Tan
  • Optional air patterns 2-Way (CB20), 3-Way (CB30) and 4-Way (CB40)
  • Optional square air pattern (10A) and rectangular air patterns (10B and 10C)
  • Optional Recessed screwdriver operated Opposed Blade Damper (CB10-0)
  • Optional Square to round ADC compliant 2 inches No Labor Collar with roll formed retention bead (CB10-NLC), available in square sizes only
  • Optional T-Bar application (CBT)
  • Call us, if desired, to order optional Tamper Proof Screws F-Torx Center Pin
  • Call us, if desired, to order optional designer colors Almond, Black Velvet, Bronze, Camaro Silver, Coffee Tan, Navajo White, Vanilla, Aluminum Paint
