10X16 Soft White Stamped Face 1-inch Filter Grille (Steel) - Shoemaker FG1

About the Shoemaker FG1-10X16

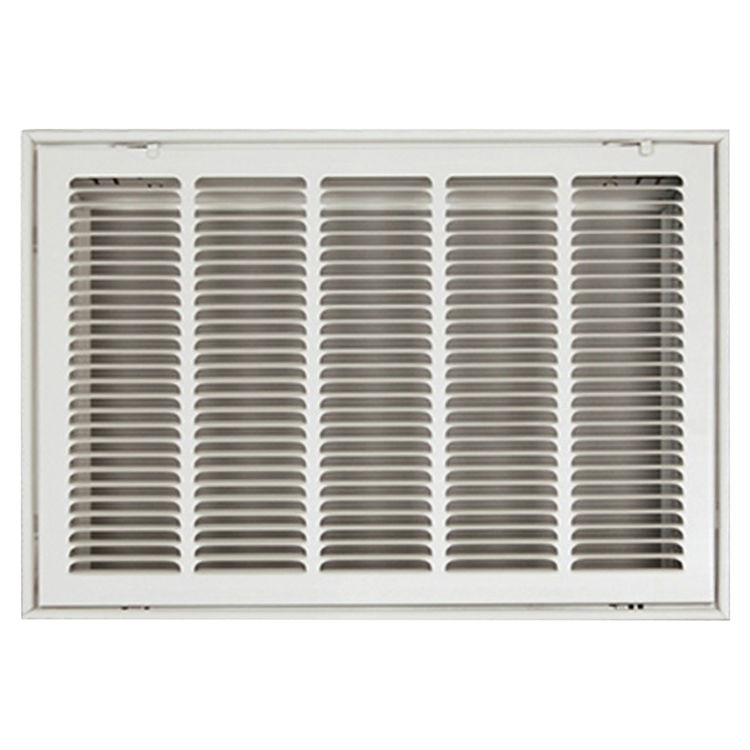

This Soft White 10"x16" Shoemaker FG1 Series stamped face 1" filter grille is designed with concealed mounting holes. It features a stamped steel construction with steel roll frame. It has dual angular louvers with a ½-inch spacing that adds strength and maximizes the free area of the grille. It features removable hinges that are parallel to the longest side of the grille. It can hold a filter with a maximum thickness of 1 inch (can be purchased separately). Square sizes are equipped with a 4-way reversible door while rectangular sizes have a 2-way reversible door. A hand-operated lever is provided for easy access to the filter. Retention tabs are provided to add security. The standard color of this grille is soft white but it is also available in driftwood tan. Optional designer colors and satin anodized finishes are also available. The Shoemaker FG1 is designed to fit and cover a 10" wide by 16" high opening. The quality and simplicity of filter grille are only two of the many reasons why Shoemaker Manufacturing leads the field in innovative air-grille design for real world applications. This Shoemaker FG1 grille has a complete line of products designed for homes, offices, stores, and many other commercial applications. The Shoemaker Manufacturing Company leads the field in innovative air-grille design and it guarantees that its products are free from defective materials. Unlike other products, Shoemaker grilles have a baked-on textured polyester powder coat that can resist scratches and does not wear or fade out easily. Please measure the hole opening size instead of measuring the face plate of your old grille. Please note that this grille is designed to fit over a 10"x16" existing hole or duct. Refer to the Specification Sheet for more information.
