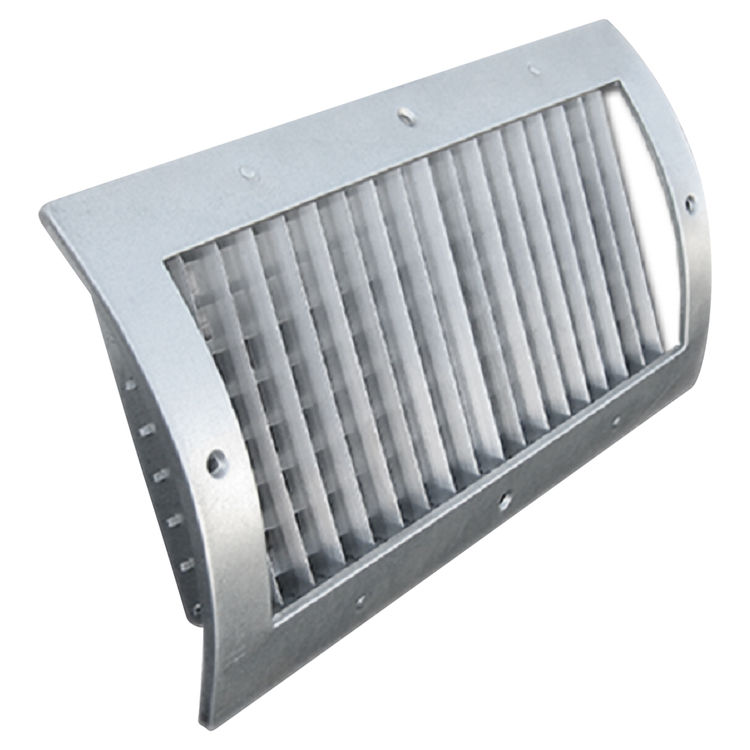

14X6 White Vent Cover (Galvanized)–Shoemaker RS34-GALV Series

SKU: 131908
   based on 1 Reviews
100% recommend this product
$120.00/ea Free Shipping!

   Available to Ship in 8-10 days

This product is NON-RETURNABLE. Please make sure you understand the item and the dimensions before ordering. By Clicking "Keep in Cart" below you are acknowledging that you understand that this product can not be returned.

14X6 White Vent Cover (Galvanized)–Shoemaker RS34-GALV Series

SKU: 131908

Ships From Price Qty
Order From Manufacturer
Available to Ship in 8-10 days

About the Shoemaker RS34-14X6G

This White 14" x 6" Shoemaker RS34-GALV Series Vent Cover is designed to fit and cover a 14” wide by 6” high opening. Shoemaker has a complete line of products designed for homes, offices, stores, and many other commercial and residential applications. The quality and simplicity of this double deflection diffuser are only two of the many reasons why Shoemaker Manufacturing leads the field in innovative air-grille design for real world applications. The Shoemaker RS34-GALV Radius Mount Spiral Pipe Diffuser (Double Deflection) is manufactured from galvanized steel that went through a chemical process to keep it from corroding. The same process also gave the steel a more durable, hard to scratch finish. This diffuser is designed with a single-piece curved frame that has a foam gasket for a tight seal. Its blades have nylon bushings for easy adjustment and quiet settings. The front louvers on this particular air-grille run parallel to the shortest dimension while the back louvers run parallel to the longest dimension. This diffuser is available in sizes that will fit spiral pipe diameters of 8” – 48”. (The spiral pipe’s diameter must be 4” larger than the width of the diffuser.) The standard color of this grille is soft white but it is also available in driftwood tan. Optional designer colors and aluminum paint finishes are also available. Unlike other products, Shoemaker grilles have a baked-on textured polyester powder coat that can resist scratches and does not wear or fade out easily. The Shoemaker Manufacturing Company leads the field in innovative air-grille design and it guarantees that its products are free from defective materials. Be sure to measure the hole opening size instead of measuring the face plate of your old grille. The Shoemaker RS34-GALV Series Grille is designed to fit over a 14" x 6" existing hole or duct. Refer to the Specification Sheet for more information.

Product Details

Product: Air Grille and Registers
Manufacturer: Shoemaker
Use: Ducting and Venting
Material: Steel
Type: Air Grille
Mpn # RS34-14X6G
Weight 3.36 lbs.

Product Features

  • Optional perforated radius spiral pipe diffuser (RSP)
  • Optional recessed screwdriver operated opposed blade damper (RS34-O)
  • Optional half-length screwdriver operated scoop extractor (RS34-SC)
  • Optional full-length screwdriver operated scoop extractor, 24 maximum length scoop (RS34-FS)
  • Optional designer colors: almond black velvet, bronze, Camaro silver, coffee tan, Navajo white, vanilla
  • Optional finish: Aluminum paint
  • RS-GALV galvanized finish
  • Double deflection transition box
  • 4-way airflow adjustment
  • Nylon bushing for easy adjustments
  • Single piece formed frame
  • Product sizes available to fit spiral pipe diameter within this range: 8 48
  • Spiral pipe diameter must be 4 larger than the diffusers width
  • Foam gasket for airtight fit
  • Front blades are parallel to shortest dimension
  • Back blades are parallel to longest dimension
  • Standard Colors: soft white, driftwood tan
