16" X 8" Transition Box Spiral Pipe Grille, Double Deflection, Opposed Blade Damper, Galvanized - Shoemaker SD34-0-GALV-16X8
SKU: 135507
$213.00/ Free Shipping!
Retail: $213.00

   Available to Ship in 6-8 weeks

About the Shoemaker SD34-0-16X8G

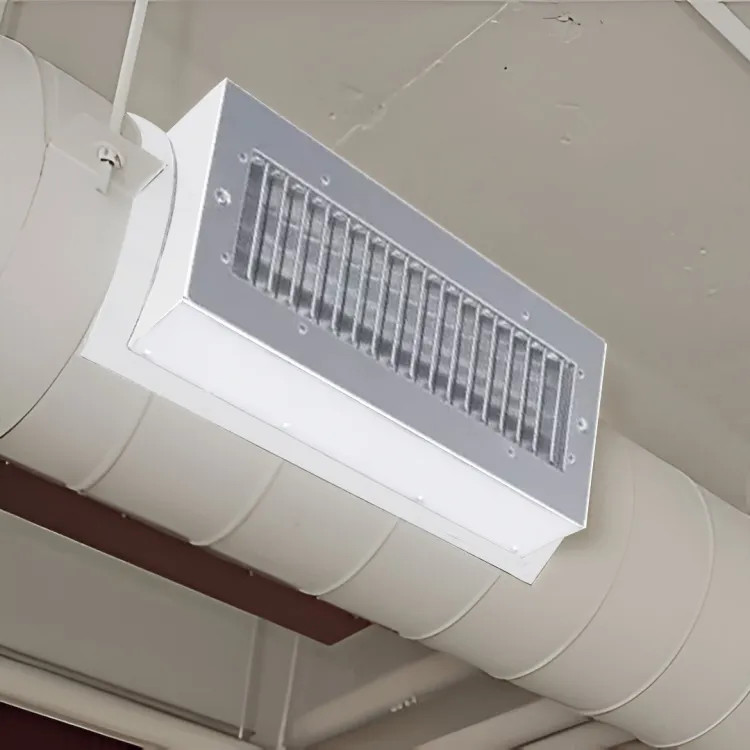

Order now and get the 16" x 8" Transition Box Spiral Pipe Grille, Double Deflection, Opposed Blade Damper, Galvanized (Shoemaker SD34-0-GALV-16X8) here at PlumbersStock. The SD34-O-GALV series features a galvanized finish double deflection transition box mount spiral pipe grille with front blades that are parallel to shorter dimension. It comes with a screwdriver operated opposed blade damper. This configuration allows for 4-way airflow adjustment and sound from metal rattling is reduced by the nylon bushings on the blades. The saddle fits with a gasket to provide an airtight fit to spiral pipe. Shoemaker has earned a strong reputation in the industry for good reason.

Product Details

Manufacturer: Shoemaker
Product: Air Grille and Registers
Color: Galvanized
Material: Galvanized Steel
Mount Type: Ceiling Mount
Air Flow Direction: 4-Way
Type: Air Deflector
Shape: Rectangle
Use: Ducting and Venting
Mpn # SD34-0-16X8G
Dimensions 0 " X 0 " X 0 "
Weight 5.12 lbs.

Product Features

  • Optional galvanized finish (SD34-GALV)
  • Optional linear bar face diffuser (SD-LSW)
  • Optional perforated face diffuser (SD-P)
  • Optional recessed screwdriver operated opposed blade damper (SD34-O)
  • Optional half-length screwdriver operated scoop extractor (SD34-SC)
  • Optional galvanized finish with half-length screwdriver operated scoop extractor (SD34-GALV-SC)
  • Optional linear bar face diffuser with half-length screwdriver operated scoop extractor (SD-LSW-SC)
  • Optional full-length screwdriver operated scoop extractor, 24” maximum length scoop (SD34-FS)
  • Optional galvanized finish with full-length screwdriver operated scoop extractor, 24” maximum length scoop (SD34-GALV-FS)
  • Optional linear bar face diffuser with full-length screwdriver operated scoop extractor, 24” maximum length scoop (SD-LSW-FS)
  • Optional designer colors: almond black velvet, bronze, Camaro silver, coffee tan, Navajo white, vanilla
  • Optional finish: Aluminum paint
  • SD34-GALV-O galvanized finish with recessed screwdriver operated opposed blade damper
  • Double deflection transition box
  • 4-way airflow adjustment
  • Nylon bushing to prevent metal rattle
  • Curved saddle with gasket
  • Product sizes available to fit spiral pipe diameter 8” – 48”
  • Spiral pipe diameter must be 4” larger than width diffuser
  • Open-cell gasketing for airtight fit
  • Front blades are parallel to shortest dimension
  • Back blades are parallel to longest dimension
