14X8 White Vent Cover (Galvanized)–Shoemaker SD34-GALV Series

SKU: 154091

$137.00/ea Free Shipping!

In Stock and Ready to Ship!

This product is NON-RETURNABLE. Please make sure you understand the item and the dimensions before ordering. By Clicking "Keep in Cart" below you are acknowledging that you understand that this product can not be returned.

14X8 White Vent Cover (Galvanized)–Shoemaker SD34-GALV Series

SKU: 154091
$137.00/ea


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$137.00/ea

About the Shoemaker SD34-14X8G

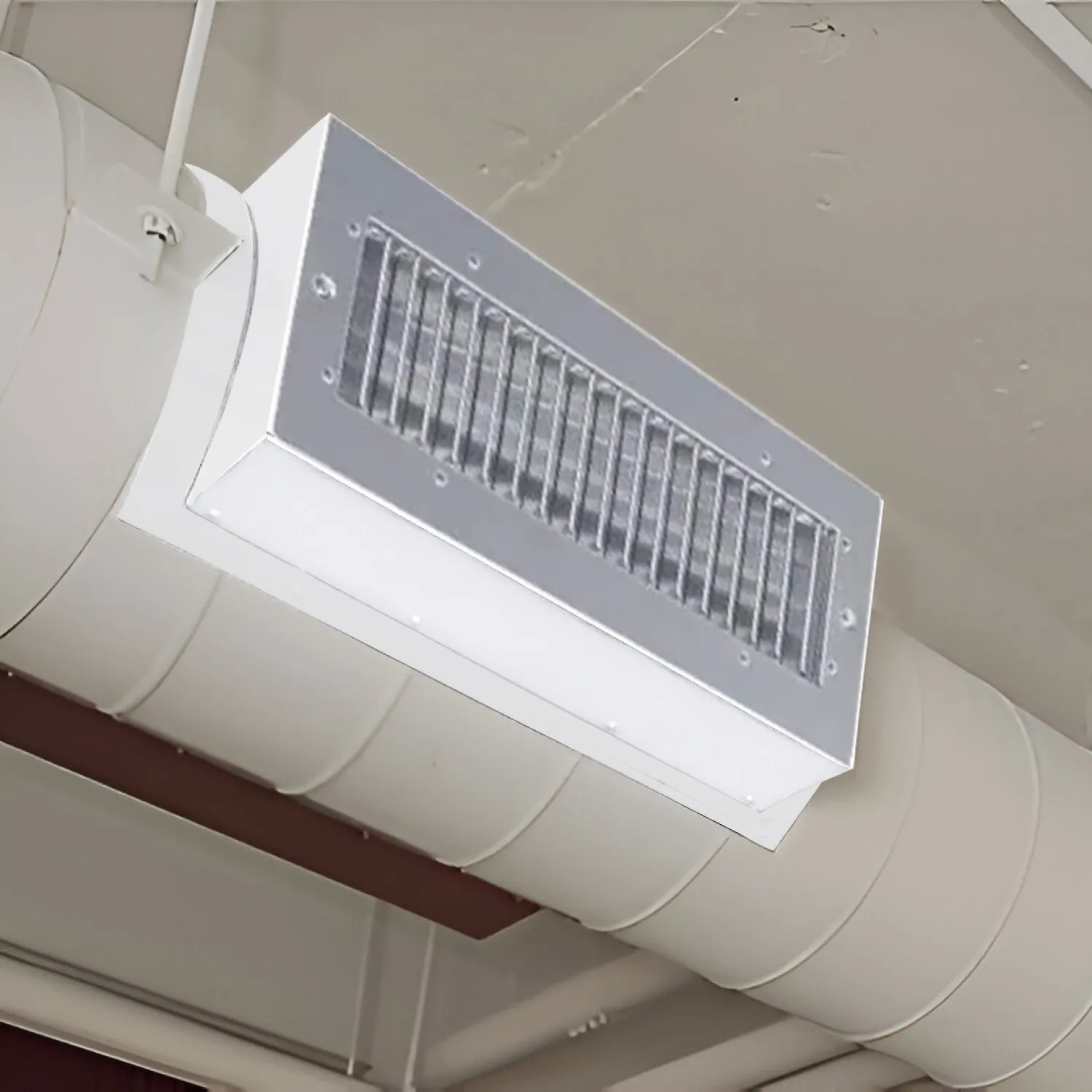

This White 14" x 8" Shoemaker SD34-GALV Series Vent Cover is designed to fit and cover a 14” wide by 8” high opening. Shoemaker has a complete line of products designed for homes, offices, stores, and many other commercial and residential applications. The quality and simplicity of this double deflection diffuser are only two of the many reasons why Shoemaker Manufacturing leads the field in innovative air-grille design for real world applications. The SD34-GALV Series Spiral Pipe Diffuser (Double Deflection) is manufactured from galvanized steel that went through a chemical process to keep it from corroding. The same process also gave the steel a more durable, hard to scratch finish. This diffuser is designed with a curved saddle that has a neoprene open-cell gasket for a tight seal. Its blades have nylon bushings for easy adjustment and quiet settings. The front louvers on this particular air-grille run parallel to the shortest dimension while the back louvers run parallel to the longest dimension. This diffuser is available in sizes that will fit spiral pipe diameters of 8” – 48”. (The spiral pipe’s diameter must be 4” larger than the width of the diffuser). The standard color of this grille is soft white. Optional designer colors and aluminum paint finishes are also available. Unlike other products, Shoemaker grilles have a baked-on textured polyester powder coat that can resist scratches and does not wear or fade out easily. The Shoemaker Manufacturing Company leads the field in innovative air-grille design and it guarantees that its products are free from defective materials. Be sure to measure the hole opening size instead of measuring the face plate of your old grille. This grille is designed to fit over a 14" x 8" existing hole or duct. Refer to the Specification Sheet for more information.

Product Details

Product: Air Grille and Registers
Manufacturer: Shoemaker
Use: Ducting and Venting
Material: Galvanized
Type: Air Grille
Mpn # SD34-14X8G

Product Features

  • Optional linear bar face diffuser (SD-LSW)
  • Optional perforated face diffuser (SD-P)
  • Optional recessed screwdriver operated opposed blade damper (SD34-O)
  • Optional galvanized finish with recessed screwdriver operated opposed blade damper (SD34-GALV-O)
  • Optional linear bar face diffuser with recessed screwdriver operated opposed blade damper (SD-LSW-O)
  • Optional half-length screwdriver operated scoop extractor (SD34-SC)
  • Optional galvanized finish with half-length screwdriver operated scoop extractor (SD34-GALV-SC)
  • Optional linear bar face diffuser with half-length screwdriver operated scoop extractor (SD-LSW-SC)
  • Optional full-length screwdriver operated scoop extractor, 24 maximum length scoop (SD34-FS)
  • Optional galvanized finish with full-length screwdriver operated scoop extractor, 24 maximum length scoop (SD34-GALV-FS)
  • Optional linear bar face diffuser with full-length screwdriver operated scoop extractor, 24 maximum length scoop (SD-LSW-FS)
  • Optional designer colors: almond black velvet, bronze, Camaro silver, coffee tan, Navajo white, vanilla
  • Optional finish: Aluminum paint
  • SD34-GALV galvanized finish
  • Double deflection transition box
  • 4-way airflow adjustment
  • Nylon bushing to prevent metal rattle
  • Curved saddle with gasket
  • Product sizes available to fit spiral pipe diameter 8 48
  • Spiral pipe diameter must be 4 larger than width diffuser
  • Open-cell gasketing for airtight fit
  • Front blades are parallel to shortest dimension
  • Back blades are parallel to longest dimension
  • Standard Colors: soft white
