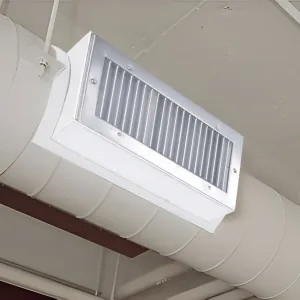

This White 16" x 8" Shoemaker SD52-GALV-SC Series Vent Cover is designed to fit and cover a 16" wide by 8" high opening. Shoemaker has a complete line of products designed for homes, offices, stores, and many other commercial and residential applications. The quality and simplicity of this single deflection diffuser are only two of the many reasons why Shoemaker Manufacturing leads the field in innovative air-grille design for real world applications. The Shoemaker SD52-GALV-SC Series Spiral Pipe Diffuser (Single Deflection) is manufactured from galvanized steel that went through a chemical process to keep it from corroding. The same process also gave the steel a more durable, hard to scratch finish. This diffuser is designed with a curved saddle that has a neoprene open-cell gasket for a tight seal. Its blades have nylon bushings for easy adjustment and quiet settings. The louvers on this particular air-grille run parallel to the shortest dimension. This diffuser is available in sizes that will fit spiral pipe diameters of 8" – 48". (The spiral pipe's diameter must be 4" larger than the width of the diffuser.) The SD52-GALV-SC comes with a half-length screwdriver-operated scoop extractor which covers the half length of the diffuser. The scoop extractor provides a controlled and balanced air intake. Achieving air balance in a facility is imperative to air quality, safety and energy efficiency. The standard color of this grille is soft white. Optional designer colors and aluminum paint finishes are also available. Unlike other products, Shoemaker grilles have a baked-on textured polyester powder coat that can resist scratches and does not wear or fade out easily. The Shoemaker Manufacturing Company leads the field in innovative air-grille design and it guarantees that its products are free from defective materials. Be sure to measure the hole opening size instead of measuring the face plate of your old grille. This grille is designed to fit over a 16" x 8" existing hole or duct. Refer to the Specification Sheet for more information.
| Product: | Vents and Terminations |
| Air Grille and Registers | |
| Manufacturer: | Shoemaker |
| Use: | Heating and A/C |
| Ducting and Venting | |
| Color: | Galvanized |
| Mpn # | SD52-SC-16X8G |
| Weight | 5.12 lbs. |
