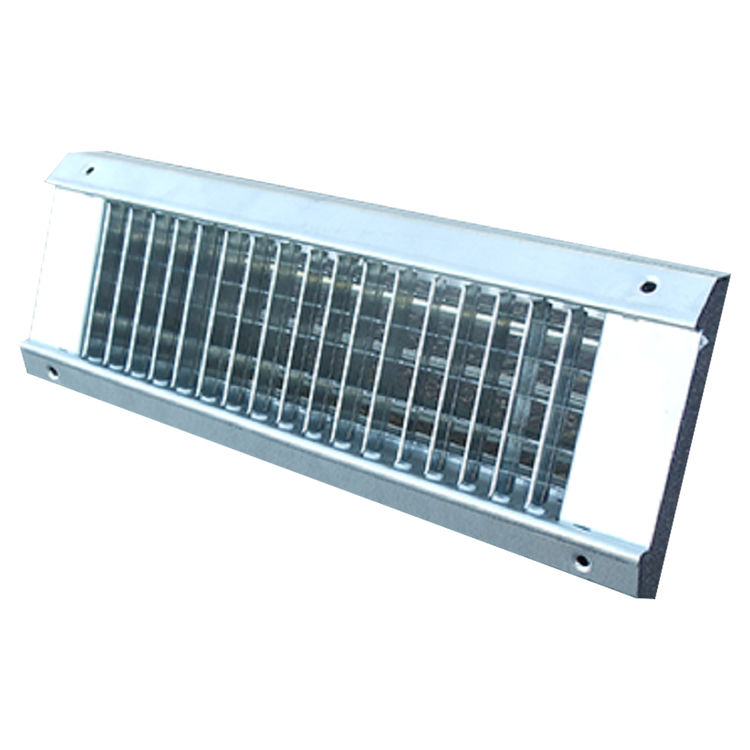

36X12 White Vent Cover (Galvanized Steel)–Shoemaker USR34-0 Series

SKU: 138405
Minimum Quantity: 1

$409.00/ea Free Shipping!

In Stock and Ready to Ship!

This product is NON-RETURNABLE. Please make sure you understand the item and the dimensions before ordering. By Clicking "Keep in Cart" below you are acknowledging that you understand that this product can not be returned.

36X12 White Vent Cover (Galvanized Steel)–Shoemaker USR34-0 Series

SKU: 138405
$409.00/ea


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$409.00/ea

About the Shoemaker USR34-0-36X12

This White 36" x 12" Shoemaker USR34-0 Series Vent Cover is designed to fit and cover a 36” wide by 12” high opening. Shoemaker has a complete line of products designed for homes, offices, stores, and many other commercial applications. The quality and simplicity of this double deflection diffuser are only two of the many reasons why Shoemaker Manufacturing leads the field in innovative air-grille design for real world applications. The Shoemaker USR34-0 Series Universal Spiral Diffuser (Double Deflection) is manufactured from galvanized steel that went through a chemical process to keep it from corroding. It also gives the steel a more durable, hard to scratch finish. This diffuser creates a 4-way air deflection. Its blades have nylon bushings for easy adjustment and quiet settings. The Shoemaker USR34-0 Series vent cover comes with a recessed screwdriver-operated opposed blade damper. It is used to regulate the airflow through linked sections of adjacent blades that rotate in the opposite direction. Compared to other damper types, an opposed blade damper maintains a more even airflow. It also provides better control over the airflow in all operating positions. A recessed screwdriver-operated damper prevents any unnecessary adjustments of the damper setting. The standard color of this grille is soft white but it is also available in driftwood tan. Optional designer colors are also available. Be sure to measure the hole opening size instead of measuring the face plate of your old grille. This grille is designed to fit over a 36" x 12" existing hole or duct. Refer to the Specification Sheet for more information.

Product Details

Product: Air Grille and Registers
Manufacturer: Shoemaker
Use: Ducting and Venting
Type: Air Grille
Material: Galvanized
Mpn # USR34-0-36X12
Weight 17.28 lbs.

Product Features

  • Adjustable Blades Allow For 4-Way Flow
  • Usr-34-Fs - Screwdriver Operated Full Length Scoop Extractor (Maximum Lenght 24")
  • Usr-34-O - Recessed Screwdriver Operated Opposed Blade Damper
  • Usr-34-Sc - Screwdriver Operated Spiral Scoop Extractor (1/2 Length)
  • A-Usr34 - Adjustable Airfoil Bldes
  • Back Blades Are Parallel To Longest Dimension
  • Double Deflection Blades With Nylon Bushings For Easy Adjustment
  • Front Blades Are Parallel To Shortest Dimension
  • Galvanized Finish Standard
  • Galvanized Steel Build
  • Open & Closed Cell Die Cut Foam Gasketing For Tight Seal With Duct
  • Standard Color (Soft White And Driftwood Tan) Or Designer Color Finish Available On This Product
