16X3 White Vent Cover (Galvanized Steel)–Shoemaker USR34-SC Series

SKU: 132890

$139.00/ea

In Stock and Ready to Ship! (May quick-ship direct from manufacturer)

Ships From	Price	Qty
Order From Manufacturer Available to Ship in 4-5 weeks	$139.00/ea	∞

About the Shoemaker USR34-SC-16X3

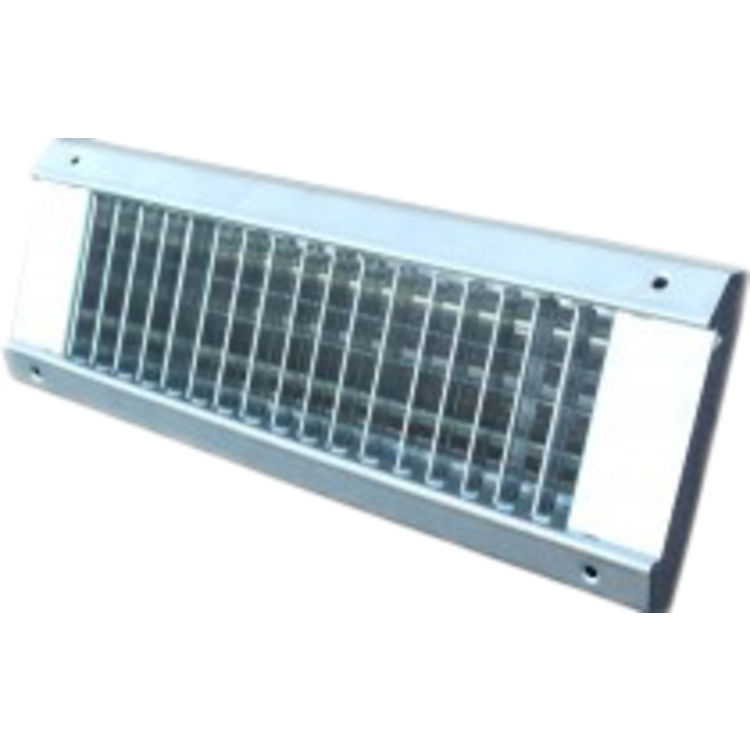

This White 16" x 3" Shoemaker USR34-SC Series Vent Cover is designed to fit and cover a 16" wide by 3" high opening. Shoemaker has a complete line of products designed for homes, offices, stores, and many other commercial applications. The quality and simplicity of this double deflection diffuser are only two of the many reasons why Shoemaker Manufacturing leads the field in innovative air-grille design for real world applications. The Shoemaker USR34-SC Series Universal Spiral Diffuser (Double Deflection) is manufactured from galvanized steel that went through a chemical process to keep it from corroding. It also gives the steel a more durable, hard to scratch finish. The diffuser creates a 4-way air deflection. Its blades have nylon bushings for easy adjustment and quiet settings. The USR34-SC comes with a half-length screwdriver-operated scoop extractor which covers the half length of the diffuser. The scoop extractor provides a controlled and balanced air intake. Achieving air balance in a facility is imperative to air quality, safety and energy efficiency. The standard color of this grille is soft white but it is also available in driftwood tan. Optional designer colors are also available. Be sure to measure the hole opening size instead of measuring the face plate of your old grille. This grille is designed to fit over a 16" x 3" existing hole or duct. Refer to the Specification Sheet for more information.

Product Details

Product:	Air Grille and Registers
Manufacturer:	Shoemaker
Use:	Ducting and Venting
Mpn #	USR34-SC-16X3
Weight	1.92 lbs.

Product Features

Optional adjustable airfoil blades (A-USR34)
Optional perforated universal spiral register (USRP)
Optional recessed screwdriver operated opposed blade damper (USR34-O)
Optional full-length screwdriver operated scoop extractor, 24 maximum length scoop (USR34-FS)
Optional adjustable airfoil blades with recessed screwdriver operated opposed blade damper (A-USR34-O)
Optional adjustable airfoil blades with half-length screwdriver operated scoop extractor (A-USR34-SC)
Optional adjustable airfoil blades full-length screwdriver operated scoop extractor, 24 maximum length scoop (A-USR34-FS)
Optional designer colors: almond black velvet, bronze, Camaro silver, coffee tan, Navajo white, vanilla
USR34-SC half-length screwdriver operated scoop extractor
Open and closed cell die cut foam gasketing for tight seal with duct
Front blades are parallel to shortest dimension
Back blades are parallel to longest dimension
Allows 4-way air deflection
Standard Colors: soft white and driftwood tan
