16" X 3" Universal Spiral Grille, Single Deflection, Full Scoop Extractor, White - Shoemaker USR52-FS-16X3
SKU: 132360
$129.00/ Free Shipping!
Save 41% · Retail: $218.30

   Available to Ship in 6-8 weeks

About the Shoemaker USR52-FS-16X3

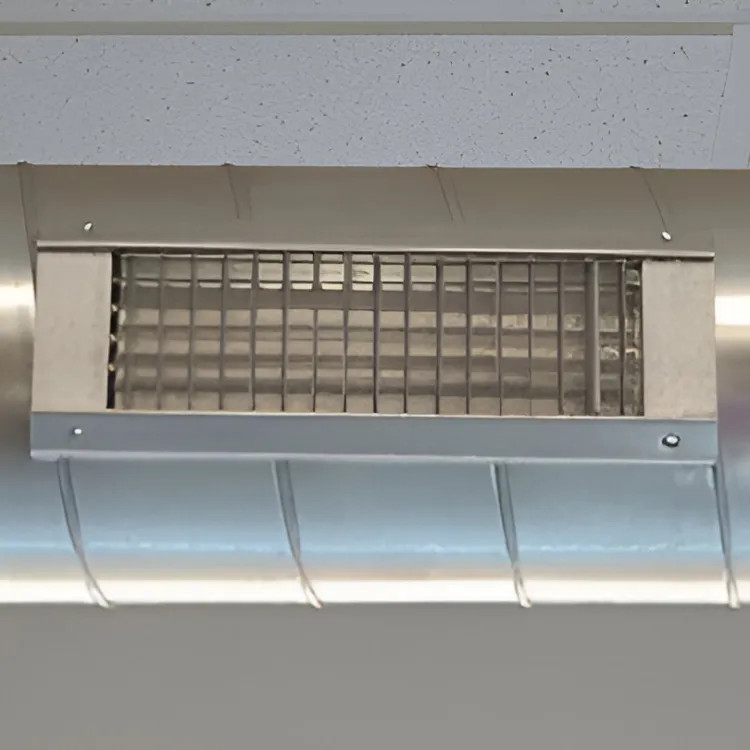

Act fast and order the 16" x 3" Universal Spiral Grille, Single Deflection, Full Scoop Extractor in soft white (Shoemaker USR52-FS-16X3) with the experts at PlumbersStock. The USR52-FS series universal spiral grilles are white and come with adjustable blades and a full-length scoop extractor. The single deflection configuration comes with blades that are parallel to shortest dimension which direct 2-way airflow. The nylon bushings prevent metal on metal rattling. The foam gasketing creates a tight seal with the ductwork. Shoemaker is a reputable heating and cooling manufacturer and we are so proud to carry their products.

Product Details

Manufacturer: Shoemaker
Style: Repair & Replacement
Mount Type: Ceiling/Wall
Air Flow Direction: 2-Way
Other Info: Easy To Install
Use: Heating and A/C
Material: Steel
Color: Galvanized
Product: Air Grille and Registers
Shape: Rectangle
Mpn # USR52-FS-16X3
Dimensions 0 " X 0 " X 0 "
Weight 1.92 lbs.

Product Features

  • Optional adjustable airfoil blades (A-USR52)
  • Optional perforated universal spiral register (USRP)
  • Optional recessed screwdriver operated opposed blade damper (USR52-O)
  • Optional half-length screwdriver operated scoop extractor (USR52-SC)
  • Optional adjustable airfoil blades with recessed screwdriver operated opposed blade damper (A-USR52-O)
  • Optional adjustable airfoil blades with half-length screwdriver operated scoop extractor (A-USR52-SC)
  • Optional adjustable airfoil blades full-length screwdriver operated scoop extractor, 24” maximum length scoop (A-USR52-FS)
  • Optional designer colors: almond black velvet, bronze, Camaro silver, coffee tan, Navajo white, vanilla
  • USR52-FS full-length screwdriver operated scoop extractor, 24” maximum length scoop
  • Open and closed cell die cut foam gasketing for tight seal with duct
  • Allows 2-way air deflection
  • Single deflection diffuser
  • Standard Colors: soft white and driftwood tan
