Sloan 3072601 Sloan Gem 2 186-1 Exposed Urinal Flush Valve (3072601)

Product Options

Sloan Gem 2 186-1 Exposed Urinal Flush Valve (3072601)

SKU: 92993
$ 92.78 / ea
Save 49% · Retail: $181.45

Exception ocurred: "file_put_contents(../resources/views/storeblade/product_pricing_leadtime.blade.php): failed to open stream: Permission denied"!   Available to Ship in 2-3 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks
$92.78/ea

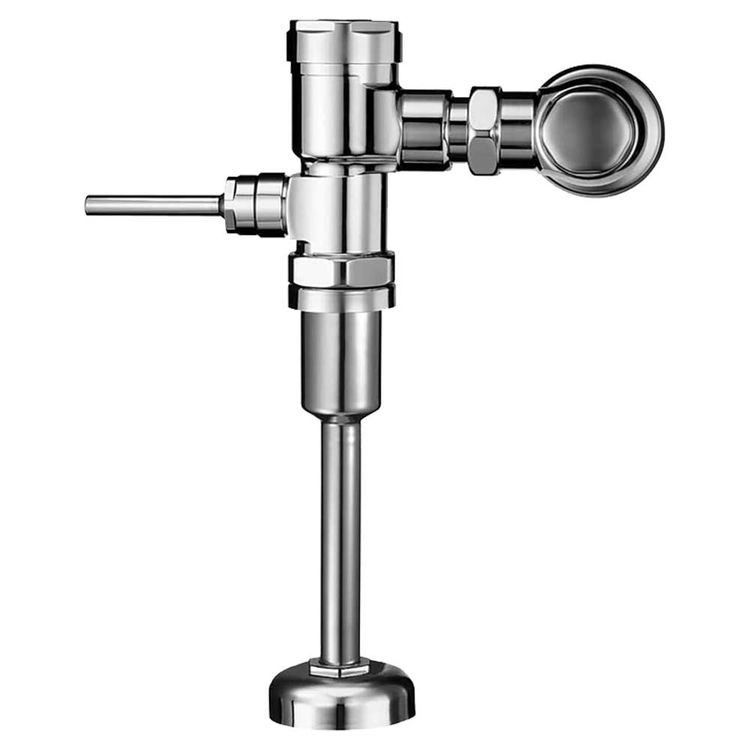

About the Sloan Gem 2 186-1 Exposed Urinal Flush Valve (3072601)

Sloan Gem 2 186-1 Exposed Urinal Flush Valve for Low Consumption 1.0 Gallon Per Flush Urinals with 3/4" Top Spud. The Sloan Gem 2 186-1 features a Fixed Volume Piston with Filtered O-Ring Bypass a 3/4" IPS Screwdriver Bak Check Stop Valve With Vandal Resistant Cap, and is Cast from High Copper and Low Zinc to Resist Dezincification. The Sloan Gem 2 186-1 Features a Non-hold Open Handle and has no External Volume Adjustmens to aid in Water Conservation. The Sloan Gem 2 186-1 uses PERMEX Rubber Compound in the Handle Packing, Main Seat, Stop Seat and Vacuum Breaker for increased Chloramine Resistance. Sloan Gem 2 186-1 Complies with ADA Requirements.

Flush Valve Type: Exposed
Faucet Features: ADA
Style: Manual
Manufacturer: Sloan
Product: Top Spud Flush Valve
Color: Chrome
Mpn # 3072601
Weight 5.53 lbs.
  • 11-1/2" Rough-In
  • Quiet, Exposed, Piston Type, Chrome Plated Urinal Flushometer
  • Fixed Volume Piston with Filtered O-ring Bypass
  • ADA Compliant Metal Oscillating Non-Hold-Open Handle
  • 3/4" I.P.S. Screwdriver Bak-Chek Angle Stop
  • Locking Vandal Resistant Stop Cap
  • Adjustable Tailpiece
  • Vacuum Breaker Flush Connection
  • Spud Coupling, Wall and Spud Flanges for 3/4" Top Spud
  • High Copper, Low Zinc Brass Castings for Dezincification Resistance
  • Non-Hold-Open Handle and No External Volume Adjustment to Ensure Water Conservation
  • Handle Packing, Stop Seat and Vacuum Breaker Molded from PERMEX Rubber Compound for Chloramine Resistance
  • Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi-Red Brass. Valve shall be in compliance to the applicable sections of ASSE 1037, ANSI/ASME A112.19.2.
