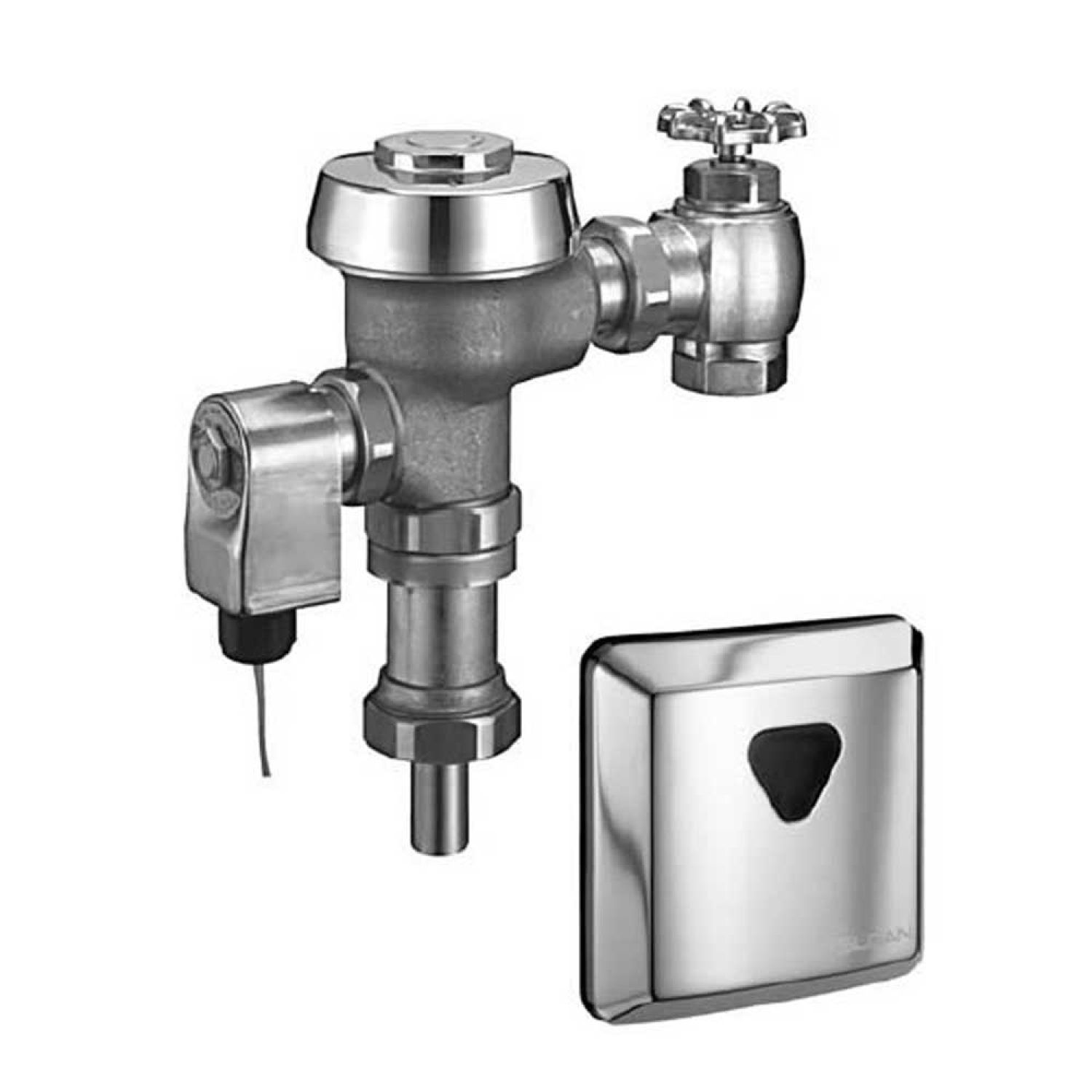

Sloan Royal Optima 194-0.5 ES-SM - Sensor-Activated Urinal Flushometer with Surface Mount Sensor

SKU: 93655

Save 35% · Retail: $845.45

  Available to Ship in 2-3 weeks

Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks

About the Sloan 3453052

Sloan Royal 194 is a Concealed, Surface Mount Sensor Activated Royal Model Urinal Flushometer I. P. S. Outlet for urinals and flushing rim floor drains. No Flush Connection. Adjustable from 2 3/4 In. to 10 3/4 In. center of valve to finished wall. 0. 5 Gpf and ADA Compliant. Sloan Royal 194 is a Quiet, Concealed, Diaphragm Type, Rough Brass Urinal Flushometer for either left or right hand supply.

Product Details

Product: Back Spud Flush Valve
Manufacturer: Sloan
Style: Sensor Operated
Mpn # 3453052
Weight 9.56 lbs.

Product Features

  • 2-3/4" -10-3/4" L Dimension
  • 0.5 gpf (1.9 Lpf)
  • Quiet, Concealed, Diaphragm Type, Rough Brass Urinal Flushometer for either left or right hand supply
  • PERMEX Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
  • OPTIMA EL-497 Water Resistant (NEMA 4) Infrared Sensor with Indicator Light and 36-Inch Cord with Modular Plug
  • Non-Hold-Open Integral Solenoid Operator w/15-Foot Cord and Modular Plug
  • Chrome Plated, Surface Mount Sensor Enclosure with Wall Gasket
  • 3/4" I.P.S. Wheel Handle Bak-Chek Angle Stop
  • Adjustable Tailpiece
  • High Back Pressure Vacuum Breaker
  • 3/4" Female I.P.S. Union Outlet (no flush connection)
  • Sweat Solder Adapter
  • High Copper, Low Zinc Brass Castings for Dezincification Resistance
  • Non-Hold-Open Integral Solenoid Operator, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
  • Flush Accuracy Controlled by CID Technology
  • Diaphragm, Stop Seat and Vacuum Breaker molded from PERMEX Rubber Compound for Chloramine Resistance
