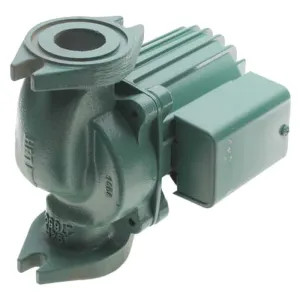

Taco 0010-F3-1IFC Taco 1-Phase Circulator Pump w/ Integral Flow Check, 1/8 HP, 30 GPM, 115V, Cast Iron, Flange - 0010-F3-1IFC

Taco 1-Phase Circulator Pump w/ Integral Flow Check, 1/8 HP, 30 GPM, 115V, Cast Iron, Flange - 0010-F3-1IFC

SKU: 399615
$ 420.73 / ea
 Free Shipping!

Exception ocurred: "file_put_contents(../resources/views/storeblade/product_pricing_leadtime.blade.php): failed to open stream: Permission denied"!   Available to Ship in 1-2 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 1-2 weeks
$420.73/ea

About the Taco 1-Phase Circulator Pump w/ Integral Flow Check, 1/8 HP, 30 GPM, 115V, Cast Iron, Flange - 0010-F3-1IFC

Save on the Taco 1-Phase Circulator Pump with an integral check valve, 1/8 HP, 30 GPM, 115V, Cast Iron, Flange (0010-F3-1IFC) at PlumbersStock. The cast iron body is built to last. Connect your new single-stage pump using the flange system. This recirculating pump operates with a 1/6 horsepower motor and a flow rate of 30 gallons per minute. Taco makes wonderful pumps for various applications, including HVAC, radiant heating, and plumbing.

Connection Type: Flanged
Material: Cast iron
Flow Rate: 30 GPM
Use: Heat Only
Motor Size: 1/8 HP
Pump Features: 1 Phase
Type: Pumps
Electrical Voltage: 115 Volt
Product: Circulating Pump
Manufacturer: Taco
Pump Type: Circulator Pump
Mpn # 0010-F3-1IFC
Shipping Dimensions 8.0" x 7.0" x 6.0"
Weight 10.10 lbs.
  • Part Number: 0010-F3-1IFC
  • Item Weight: 13 pounds
  • Product Dimensions: 1 x 1 x 1 inches
  • Item model number: 0010-F3-1IFC
  • Material: Cast Iron
  • Voltage: 115 volts
  • Item Package Quantity: 1
  • Price For: Each Pump Mount: In Line Standards: UL-CUS Phase: 1 Connection Style: Flanged Drive Type: Direct Manufacturers Warranty Length: 3 yr. Item: Hot Water Circulator Pump Voltage: 115 Housing Material: Cast Iron Flange/Union Included: No Shaft Material: Ceramic Mechanical Seal: No Includes: Flange Gaskets Features: wet rotor, maintenance free HP: 1/8
  • Amps: 1.10 RPM: 3250 Impeller Material: Polypropylene Thermal Protection: Impedance Max. Temp.: 230 Degrees F Length: 8-3/8" Min. GPM @ Head: 7 gpm @ 10 ft. Series: 0010-f3-3ifc Max. GPM @ Head: 19 gpm @ 1 ft. Best Efficiency GPM @ Head: 14 gpm @ 6.5 ft. Pump Type: In Line, Wet Rotor Face to Face Dimension: 6-3/8" Max. Operating Pressure: 125 psi Width: 5-3/8" Shut-Off: 10.5 ft.
  • Loop Configuration: Closed Number of Speeds: 1 Country of Origin (subject to change): United States
