Please make sure you understand the item and the dimensions before ordering.
By Clicking "Add to Cart", you acknowledge that this product is not eligible for returns
| Product: | Tank |
| Use: | Water Heater |
| Style: | Expansion Tank |
| Connection Type: | Threaded |
| Manufacturer: | Watts |
| Mpn # | PLT-5 |
| Shipping Dimensions | 8.5" x 8.5" x 13.8" |
| Weight | 5.50 lbs. |
| Shipping Dimensional Weight | 5.63 lbs. |

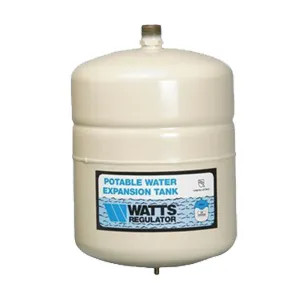

Save big on the Watts PLT-5 Potable Water Expansion Tank, 2 Gallon from PlumbersStock. This 2.1-gallon potable water expansion tank has a 3/4-in male connection and it's easy to install. Watts replacement parts can be hard to find, so contact us if you have any problems.
As the manufacturer describes it, This potable water expansion tank is used on gas, oil, or electric, direct-fired, residential water heater and hot water storage tank applications to absorb the increased volume of water created by thermal expansion. It also maintains balanced pressure throughout the water supply system by keeping system pressure below the T&P relief valve setting.
Expansion Tanks are generally installed for the specific purpose of accommodating natural expansion and air/volume disbursement in Water Heating Systems. Designed to eliminate "water logging" and to ensure consistent water pressure of a water supply system. This steel diaphragm tank is pre-pressurized and uses a heavy-duty rubber membrane to permanently separate the air and water within the tank to maintain consistent pressure without the loss of air to the water.
If you would like to be notified when we answer your question please log in or enter your email below. If not please leave the email blank and press submit thank you.
Thank you for asking help from the PlumbersStock team. An expansion tank (such as this Watts PLT-5) is used as an overflow for a hot water system. It is a one-way system which means that water can't flow back into the main hot water tank once it gets into the expansion tank. It needs to be drained to be an effective overflow. If your expansion tank is full of water, it is possible that the pre-charge is set too low, allowing the water pressure to “defeat” the diaphragm too easily and letting too much water into the tank. It could also be due to a ruptured diaphragm so there's nothing to keep the water out. If you need further technical assistance, please contact Watts at 1-978-689-606. Thank you for visiting PlumbersStock.com!
Hello! Thank you for posting your question here on PlumbersStock concerning the Watts PLT-5 Potable Water Expansion Tank. Yes, improper service or maintenance on this expansion tank can cause property damage, serious bodily injury that may result in death. A professional plumber should check the complete system, including the expansion tank, yearly and more frequently as the system ages. Checking the precharge allows a small quantity of air to escape and can result in an insufficient air charge. Always check the precharge while the tank is isolated and empty of water, and be sure to maintain the proper precharge whenever the tank is inspected. You may check this Video for more information about water heater and expansion tank maintenance if you would like. We hope that this helps. Please don't hesitate to contact us if you have any further question or concern about this expansion tank. We thank you for choosing PlumbersStock.com. We are always happy to serve you.
Hi, there! Thank you for asking us with regards to the Watts PLT-5 water expansion tank. This water expansion tank is made to work with hot water only and is designed to stabilize water pressure due to heat. The best we can recommend you is to get a water hammer arrestor. Arrestors work by absorbing the sudden pressure changes that cause the banging sound on the pipes. It also helps retain the integrity of your plumbing system. If you have further question, please don't hesitate to ask us. Thank you and we hope to see you again here at PlumbersStock.com!
Hello there! Thank you for posting your question about the Watts PLT-5 expansion tank. Don't worry, though the usual installation of the expansion tank is near the water heater, it will still work even if it's installed away from the water heater tank. After all, the purpose of the expansion tank is to accommodate natural expansion, air/volume disbursement in-line systems, eliminate waterlogging and to ensure consistent water pressure of a water supply system. Should you have further questions. Don't hesitate to ask. PlumbersStock.com is happy to assist you. Have a great day
