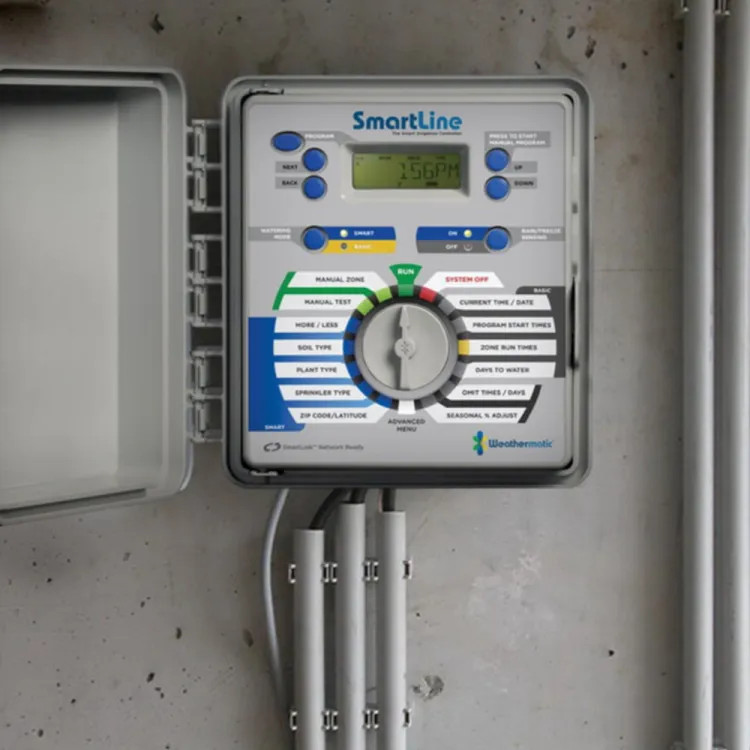

Weathermatic Smartline 4-Station Sprinkler System Controller Bundle With Weather Monitor Station And 4-Station Expansion Module - SL1600
SKU: 45040
$482.14/ea
Save 40% · Retail: $805.42

   Available to Ship in 6-8 weeks

About the Weathermatic Smartline 4-Station Sprinkler System Controller Bundle With Weather Monitor Station And 4-Station Expansion Module - SL1600

Weathermatic SL1600 Water System Controller Bundle. Weathermatic is the undisputed leader in smart irrigation controllers and they've built their entire water management business based around the Smartline SL1600. If you are interested in using "smart" irrigation technologies to reduce your water bill by as much as 50% then Smartline is the right choice. Weathermatic products are designed with efficiency in mind. The typical A-acre commercial property uses about one million gallons of landscape water per year.

Product Details

Manufacturer: Weathermatic
Dimensions 0 " X 0 " X 0 "
Weight 13 lbs.

Product Features

  • 4-zone base model, expandable to 16 zones using SLM4 4-zone hot-swappable modules (Indoor/Outdoor rated)
  • Watering day selections of custom days of the week, odd/even, or interval days
  • Omit settings: omit time of day window, omit day(s) of week, and omit up to 7 calendar dates
  • Seasonal % adjust by program, by month for simple year round water budgeting (monthly percentages overridden in Auto Adjust mode)
  • Input: 120VAC/60Hz @ 400mA for 3 valves
  • Output: 28VAC, 1.0A maximum
  • Fuse: 1.0A, slow blow
  • Dimensions: 9-1/8" W x 10-1/2" H x 4" D (23,2 cm x 25,7 cm x 10,2 cm)
  • ZIP Code input (5 digit) or Latitude input (+/-60 degrees from EQUATOR) establish location of site for solar radiation calculation
  • Sprinkler type input allows selection for zone sprinkler type (SPRAY, ROTOR, DRIP, BUBBLER) with preset precipitation rate or specific input of the zone precipitation rate (.2 - 3.0" per hour)
  • Plant type input allows selection for zone plant type (COOL TURF, WARM TURF, SHRUBS, ANNUALS, TREES, NATIVE) with preset crop factors or specific input of the zone crop factor (10 - 300%)
  • Internal 120VAC/230VAC transformer with plug and play pre-installed 6' line cord (removable for conduit-wired installations)
  • Soil type input allows selection for the soil type (CLAY, SAND, LOAM) and slope (0 - 25 degrees) for the purpose of automatically calculating a run/soak period to virtually eliminate run off
  • Large backlit LCD display
  • 2 run modes: Standard mode runs user input zone run times; Auto Adjust mode requires SLW Series On-Site Weather Station to calculate weather based run times that override user input zone run times
  • Rain/Freeze sensor bypass/active button located on face panel displays sensor status with tri-color LEDs (red indicates sensor is prohibiting irrigation; orange indicates an extended rain delay after weather station rain sensor permits irrigation; green indicates normal operation)
  • 4 programs: A, B, C; program D can operate concurrently
  • 8 start times per program
  • Nonvolatile memory and real time clock/calendar circuit to retain programs as well as correct date and time - with no battery required
  • Zone run times settable from 1 min. to 9 hrs. 55 min. with operation countdown displayed in hours, minutes, and seconds (zone run times overridden by weather based calculated values in Auto Adjust mode)
