Chicago Faucets EQ-D11A-KJKABCP EQ Chrome 243.145.AB.1 0.5 GPM (1.9 L/min) Non-Aerating Spray Cache Outlet EQ Curved Electronic Integral Spout Assembly
$ 0.00
Chicago Faucet EQ-D11A-KJKABCP Chicago Faucets EQ-D11A-KJKABCP EQ Chrome 243.145.AB.1 0.5 GPM (1.9 L/min) Non-Aerating Spray Cache Outlet EQ Curved Electronic Integral Spout Assembly

Printer friendly page

Chicago Faucets EQ-D11A-KJKABCP EQ Chrome 243.145.AB.1 0.5 GPM (1.9 L/min) Non-Aerating Spray Cache Outlet EQ Curved Electronic Integral Spout Assembly

SKU: 515155

$151.58/ea
Save 34% · Retail: $230.94

  Available to Ship in 2-3 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks
$151.58/ea

About the Chicago Faucet EQ-D11A-KJKABCP

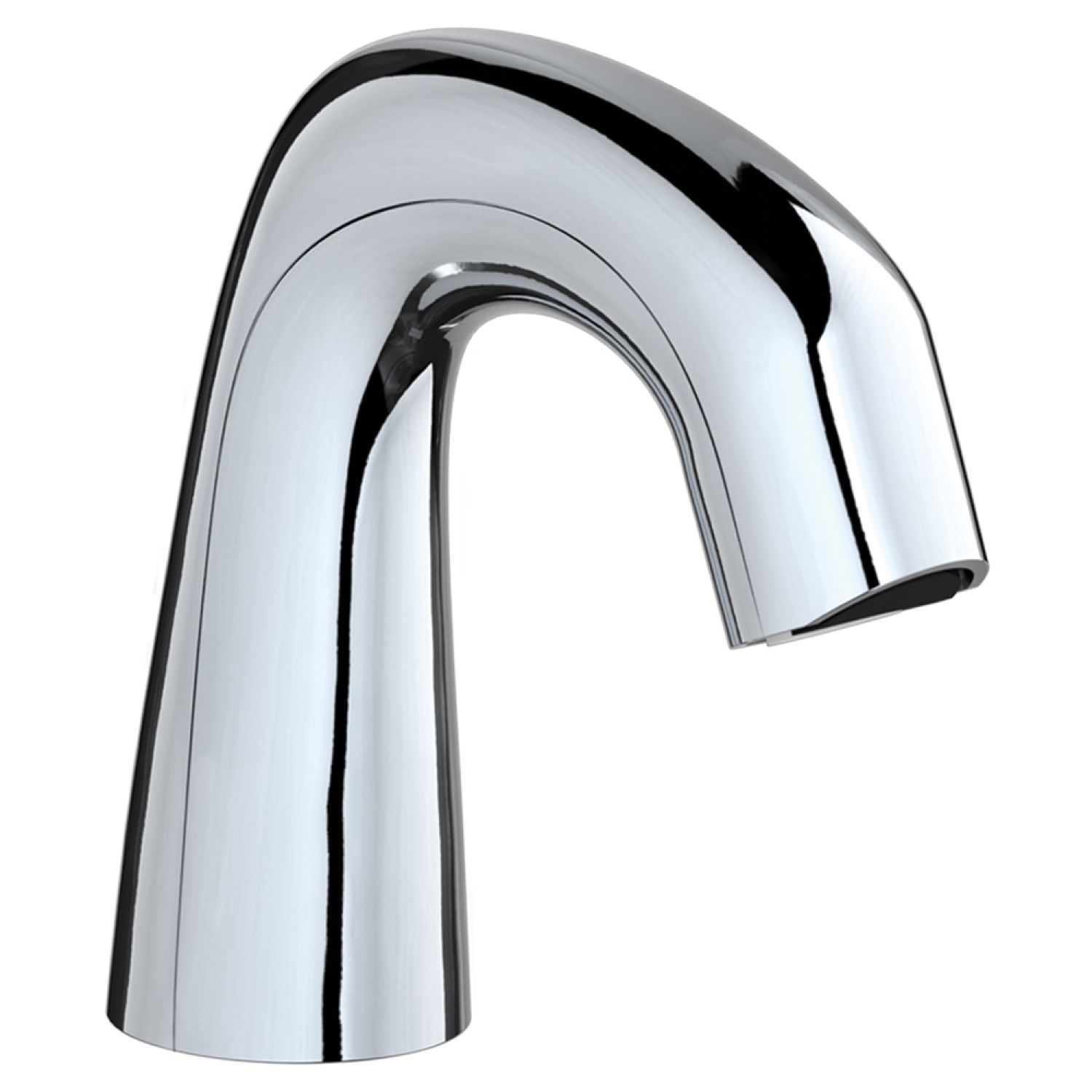

The EQ-D11A-KJKABCP Curved Chrome electronic spout assembly, from Chicago. This modern take on commercial lavatory service provides infrared detection for on demand actuation and maximizes water preservation. The standard maximum run time of 20 seconds automatically drops to 10 seconds in high use environments to increase water savings. The EQ-D11A-KJKABCP is a die-cast zinc spout with a sleek Chrome finish and features a 0.5 GPM pressure compensating Econo-Flo non-aerating spray Neoperl Cache outlet with 0.17 maximum gallons per consumption cycle. Combine the EQ-D11A-KJKABCP with any EQ control box and an optional Cover Plate assembly. The Chicago EQ-D11A-KJKABCP Curved Chrome electronic spout assembly includes a spout, stainless steel braided waterway, electronics module with cable and waterproof connector, outlet, and mounting hardware.

Product Details

Color: Chrome
Manufacturer: Chicago
Spout Style: Curved
Mpn # EQ-D11A-KJKABCP
Weight 1.00 lbs.

Product Features

  • EQ Curved Electronic Integral Spout Assembly Design
  • 5-7/8 in (150mm)
  • 3 in (76mm) Height to Outlet
  • 4-1/2 in (114mm) Inlet to Outlet Projection
  • Weight: 1.000lbs
  • CFNow! - this item ships 3 business days from order acknowledgement
  • Eligible to ship within 24 hours after order acknowledgement (customer pays freight)
  • \"\"\"On-Off\"\" hands-free actuation\"
  • Maximum run time 10 seconds in high use enviroments
  • 0.17 GPC (0.6 LPC) maximum
  • Combine with EQ Control box assemblies (sold seperately)
  • Die-cast zinc spout body
  • \"Includes spout, waterway, electronics module with cable and connector, outlet, and mounting hardware\"
  • ECAST construction with equal to or less than 0.25% lead content by weighted average
  • Chrome Plated Finish
