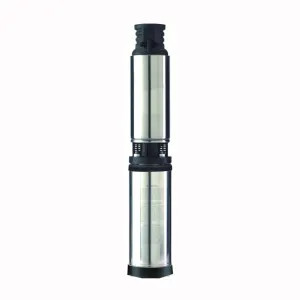

Pentair Flotec 4"Submersible Well Pump, 2-Wire, 1 HP, 10 GPM, 230V, 1-1/4" NPT Discharge - FP2232

Hey there! Thank you for your interest in the Pentair FP2232 submersible pump. When selecting the right pump, it's important to consider factors such as the required flow rate, pressure, and application type. This pump delivers a 10 GPM flow rate and is designed for 4" wells or larger, capable of pumping from depths up to 200 feet, making it ideal for residential and agricultural uses. It features a 1 HP motor operating at 230V, so you'll need to ensure it matches your system's power requirements. Also, consider the pump's durability and maintenance needs; this model is designed for low-maintenance, energy-efficient performance, which helps lower operating costs while providing reliable, long-term operation. To purchase this two-wire submersible well pump, simply click ”Add to Cart,” provide the required information, and we’ll take care of the rest. Thank you for trusting PlumbersStock. Have a great day!

Hello there! Thank you for your question about the Pentair FP2232 submersible well pump. Yes, there are specific installation guidelines for this well pump. To install, inspect the pump for damage and ensure the well is clear of sand and debris. Position the pump 15-20 feet below the drawdown water level and at least 5 feet above the well bottom. Ground the pump, motor, and control box, ensuring the power supply matches the motor's specifications. Use teflon tape for plastic pipe joints, install a pressure relief valve (75 PSI for air-over-water tanks, 100 PSI for pre-charged tanks), and protect the system from freezing. During startup, partially open the discharge valve to prevent sand-locking and confirm all connections are secure and code-compliant. For pre-charged tanks, set the air pre-charge 2 PSI below the pump's cut-in setting. For more detailed instruction, refer to pages 2 to 7 of its user manual. We hope this helps. To purchase this 1-HP submersible well pump, simply click ”Add to Cart,” provide the required information, and we’ll take care of the rest. Thank you for visiting PlumbersStock! Have a great day!

Hi! Thank you for your question about the Pentair FP2232 submersible pump. Yes, this pump features a floating stack impeller design that offers sand resistance and reduces sand locking. You can refer to its Specification Sheet for more information. To purchase this well pump, simply click "Add to Cart," fill out the required information, and we’ll take care of the rest. Thank you for trusting PlumbersStock! Have a great day!
