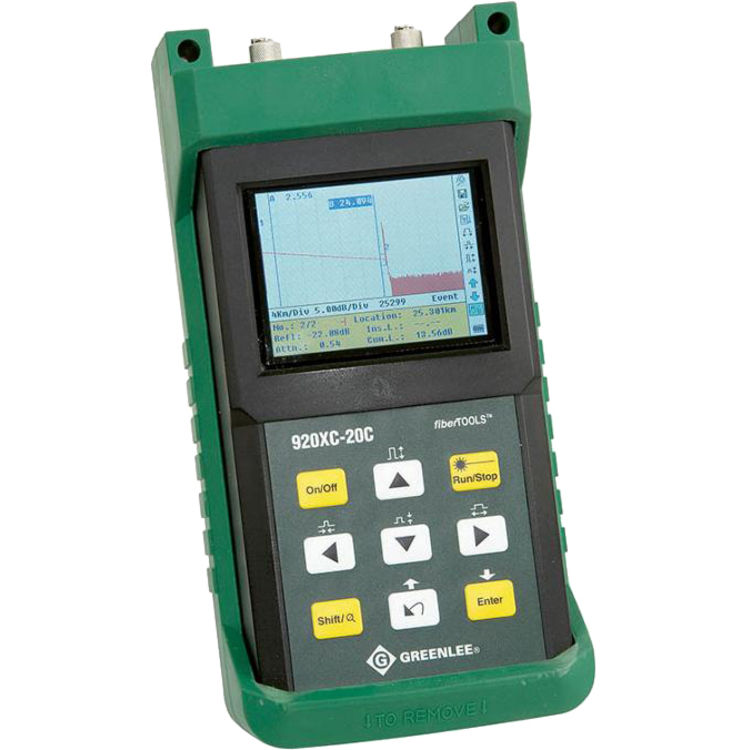

Greenlee 920XC-20C APC FC Handheld Optical Time Domain Reflectometer

SKU: 274223

$3,502.18/ea Free Shipping!
Save 25% · Retail: $4,695.00

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$3,502.18/ea

About the Greenlee 920XC-20C APC FC

The Greenlee 920XC-20C APC FC Handheld Optical Time Domain Reflectometer (1310/1550nm, FC/APC) is part of Greenlee's premium collection of tools and accessories. This handheld optical time domain reflectometer is designed with a dynamic range up to 38dB, a large backlight LCD display, a fiber analysis software for data management and report generalization, and 1625nm operation. It measures length and defects of coiled fiber, and features an RS-232/USB interface.

Product Details

Product: Specialty Tools
Manufacturer: Greenlee
Use: Testing
Type: Electric
Mpn # 920XC-20C APC FC
Weight 0.12 lbs.

Product Features

  • Up to 38db dynamic range
  • Average Time : 15 S/30 S/1 MINT/2 MINT/3 MINT
  • Battery Life : Support Over 8 HR Operating On One Charge Or Over 20 HR Standby
  • Connector interface : Interchangeable FC, SC, ST
  • Connector Type : PC Or APC (Interchangeable FC, SC, ST)
  • Data transmission : RS-232/USB port
  • Dimensions : 2.400 IN Length (64.000 MM) X3.900 IN Width (100.000 MM) X7.700 IN Height (196.000 MM)
  • Distance measurement accuracy : Plus Or Minus (1 M + 5 X 105 X Distance + Sampling Space)
  • Dynamic Range : 35 DB
  • Emitter Type : Laser
  • Event Deadzone : 2.500 MR
  • Large backlight LCD display
  • Measurement data storage : 1000 Test curves
  • Model : 920XC
  • Peak Power Output : 3 MILW
  • Power : Nickel Metal Hydride Chargeable Battery/AC Adapter
  • Pulse Width ns : 5 NS, 10 NS, 30 NS, 100 NS, 300 NS, 1US, 2.5 US, 10 US, 20 US
  • Reflection Detect Accuracy : Plus Or Minus 4 DB
  • Relative Humidity : 0 To 95 PCT Non-Condensing
  • Replacement Part : 20989, USB Cable For OTDR 20990, RS-232 Cable 920XC-QR, Quick Reference Guide - UN 20999, NiMH Battery (9.6V)
  • Selectable Ranges : 0.300/1.300/2.500/5.000/10.000/20.000/40.000/80.000/120.000/160.000/240.000 KM
  • Storage/Operating Temperature : -10 To 50 DEG C-20 To 60 DEG C
  • Measure length and defectsof coiled fiber
  • Type : Optical Time Domain, HandheldSinglemode
  • Wavelength Range : 1310/1550 NMTR
  • Wavelength Visual Fault Locator : 650 NMTR
  • Weight : 1.900 LB (0.870 KG)
  • Fiber analysis software fordata management and report generation
  • 1625 nm operation for livefiver testing
  • RS-232/USB interface
  • Accessory : 946, Cleaning Wand 10/PK 948, REEL Cleener CONN Cleaner 20998, Soft Carrying Case AC-CONN-FC-L2, FC Connector (For UPC And APC) AC-CONN-ST-L2, ST Connector (For UPC Only) AC-CONN-SC-L2, SC Connector (For UPC And APC) AC-ADPT-20-UNIV, Power Supply Un
  • Attenuation Deadzone : 14.000 MTR
  • Attenuation Detect Accuracy : Plus Or Minus 0.05 DBDB
