Product Details
Manufacturer:
Honeywell
Use:
Gas
Mpn #
VR8200H1251
Weight
1.90 lbs.
About the Honeywell VR8200H1251

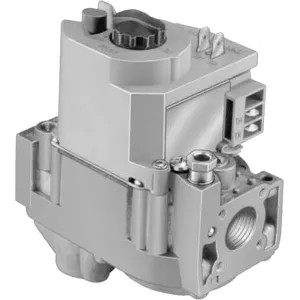

About the Honeywell VR8200H1251 24 Vac Dual Standing Pilot Gas Valve
Honeywell VR8200H1251 24Vac Dual Standing Pilot Gas Valve. The Combination gas controls for use in 24 Vac, gas-fired, standing pilot appliances with capacities from 20 to 200 cfh.
Product Features
Controls include manual valve, two automatic operators, servo pressure regulator and pilot adjustment.
Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure.
Compatible with ECO connector.
Compact size.
Provide two automatic valves.
Solenoid-operated first automatic valve opens on thermostat call for heat; closes when call for heat ends.
Diaphragm-operated second automatic valve opens under control of regulator; closes if gas or power supply is interrupted.
Meet codes requiring dual safety shutoff.
Natural to LP and LP to Natural conversion kits available for standard and slow opening gas valves.
LITE-RITE (OFF-PILOT-ON) lighting sequence.
All adjustments, wiring connections and pilot outlet are accessible from top of control.
