Hydro-Rain HRZ-100-MM-30 Drip Control Zone 30 PSI Regulator

SKU: 180155

$25.81/ea

Save 43% · Retail: $45.00

Available to Ship in 4-5 weeks

Ships From	Price	Qty
Order From Manufacturer Available to Ship in 4-5 weeks	$25.81/ea	∞

About the Hydro-Rain HRZ-100-MM-30

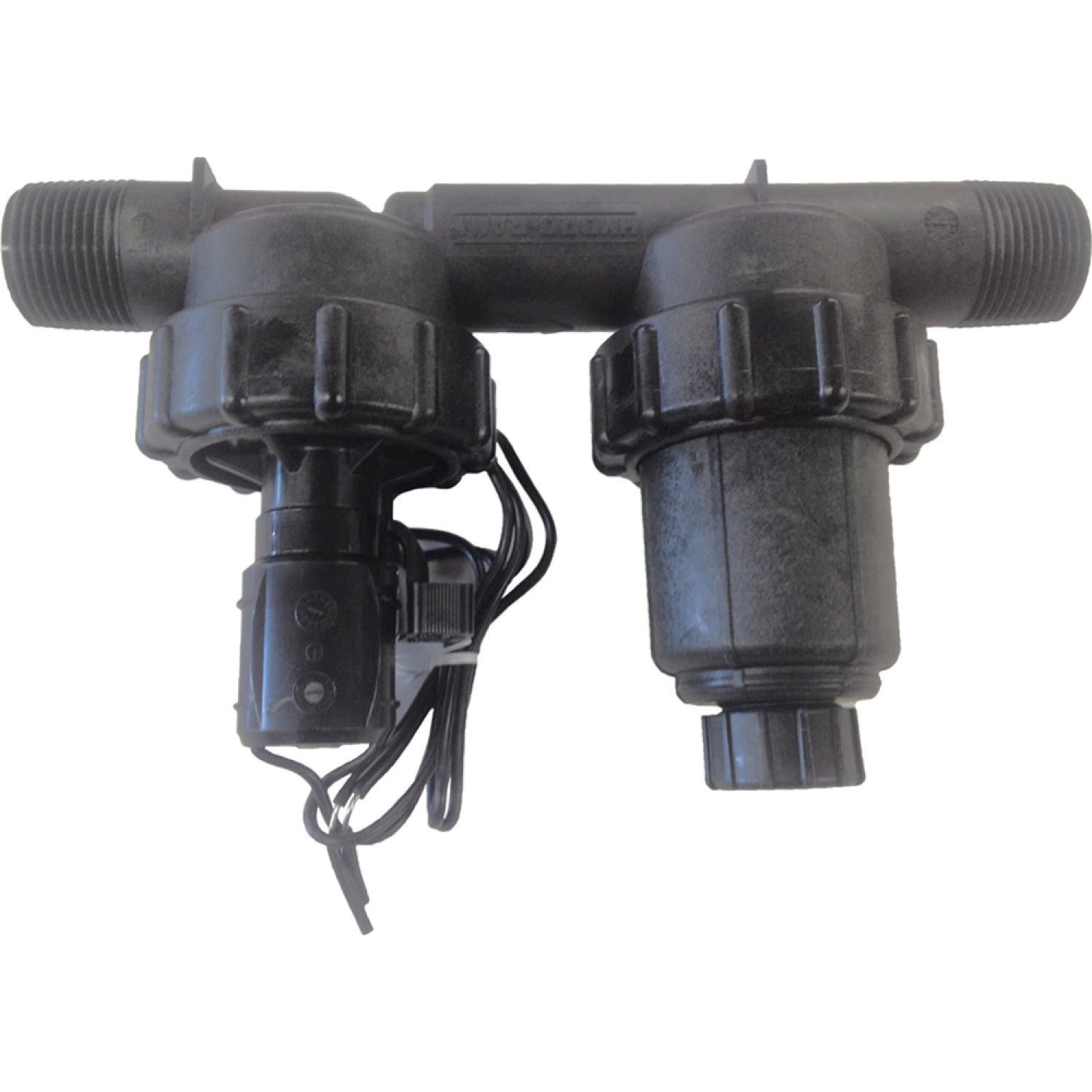

The Hydro-Rain HRZ-100-MM-30 The HRZ100 Pressure Regulater is a "one piece" low flow irrigation zone valve, filter, and regulator combination, featuring the strength and durability of commercial ready glassfilled nylon. The HRZ100MM30 is designed to handle water flow from as low as .1 gpm(gallon per minite) and pressure as high as 120 psi and includes 20, 30, and 40 psi pressure regulation with mesh filter. For use with any sprinkler system designs

Product Details

Use:	Water
Faucet Part Feature:	Electrical and Sensors
Mpn #	HRZ-100-MM-30
Weight	1.00 lbs.

Product Features

One-piece construction-Combines a low-flow irrigation valve, a 200 mesh filter, and a pressure regulator, effectively reducing installation time and parts inventory.
Durable-Glass-filled nylon construction for years of reliable operation.
Flow: 0.1 to 5.0 GPM (0,4 to 18,9 LPM)
Inlet Pressure: 20 to 120 PSI (1,4 to 8,3 BAR)
Regulated Pressure: 20 PSI (1,5 BAR), 30 PSI (2,1 BAR), 40 PSI (2,7 BAR)
Filtration: 200 mesh filter
24 VAC 50/60 HZ (Cycles/Sec) Solenoid
Inrush Current: .30 A (7.2VA) at 60 HZ
Holding Current: .19 A (4.6VA) at 60 HZ
Coil Resistance: 4255 OHMS
Dimensions: - Height 5 1/2" (13,9 cm) - Length 9 3/8" (23,8 cm) (without optional .700 adapter) - Width 3" (7,6 cm)
Accessibility-"Jar-Top" valve and filter are easily maintained; no tools are required for service with no valve bonnet screws or bolts to drop into the mud.
Internal manual bleed-Operate HRZ 100 manually with no external bleed stream or use external bleed option for effective "blow out" during seasonal system shut-down.
Compact-HRZ 100 is easily contained in a 6" round valve box and up to four will sit nicely in a standard size box.
1" Low-flow valve-HRZ 100 operates efficiently from 0.1 to 5 GPM, perfect for residential or light commercial drip or micro watering.
Water management-Features pressure regulation at 20, 30, or 40 PSI for use in a range of low-flow applications.
Filtration-Removable 200 mesh filter with top-loaded service cap makes flushing fast and simple.
Drip tubing ready-.700 .710 quick-release tubing adapter included for easy out-of-the-package installation.
Stainless steel metering-Design ensures optimal diaphragm performance.

Reviews

4.5 out of 5 rating is our rating for PlumbersStock, we got that rating because we have lots of experience and great people with expertise in plumbing. BUT WE WANT YOUR HELP. This product doesn't have any reviews yet, and we don't want to write our own reviews. It is more valuable to us that the customers get to share their experience with our products. Please, if you have any experience with this product, take a moment to share and help someone else who is trying to make a decision. Thank you!

Questions & Answers

Anonymous asked:

What is the little hole in the side of the outlet side for and why does it leak after the second or third year?

*PLUMBERSSTOCK EXPERT* responded:

Hi! We value your inquiry about our Hydro-Rain HRZ-100-MM-30 drip control zone 30 PSI regulator. According to Hydro-Rain, the little hole on the side is for pressure release. It should leak out of there every once in a while. If it's constantly leaking, then it will likely need to be replaced. Hydro-Rain wants to ask you some information because they might be able to get you a replacement sent out if your item is still under the warranty. You can contact them @ 888.HYDRORAIN or via e-mail @ customerservice@hydrorain.com. Thank you for visiting PlumbersStock.com!
