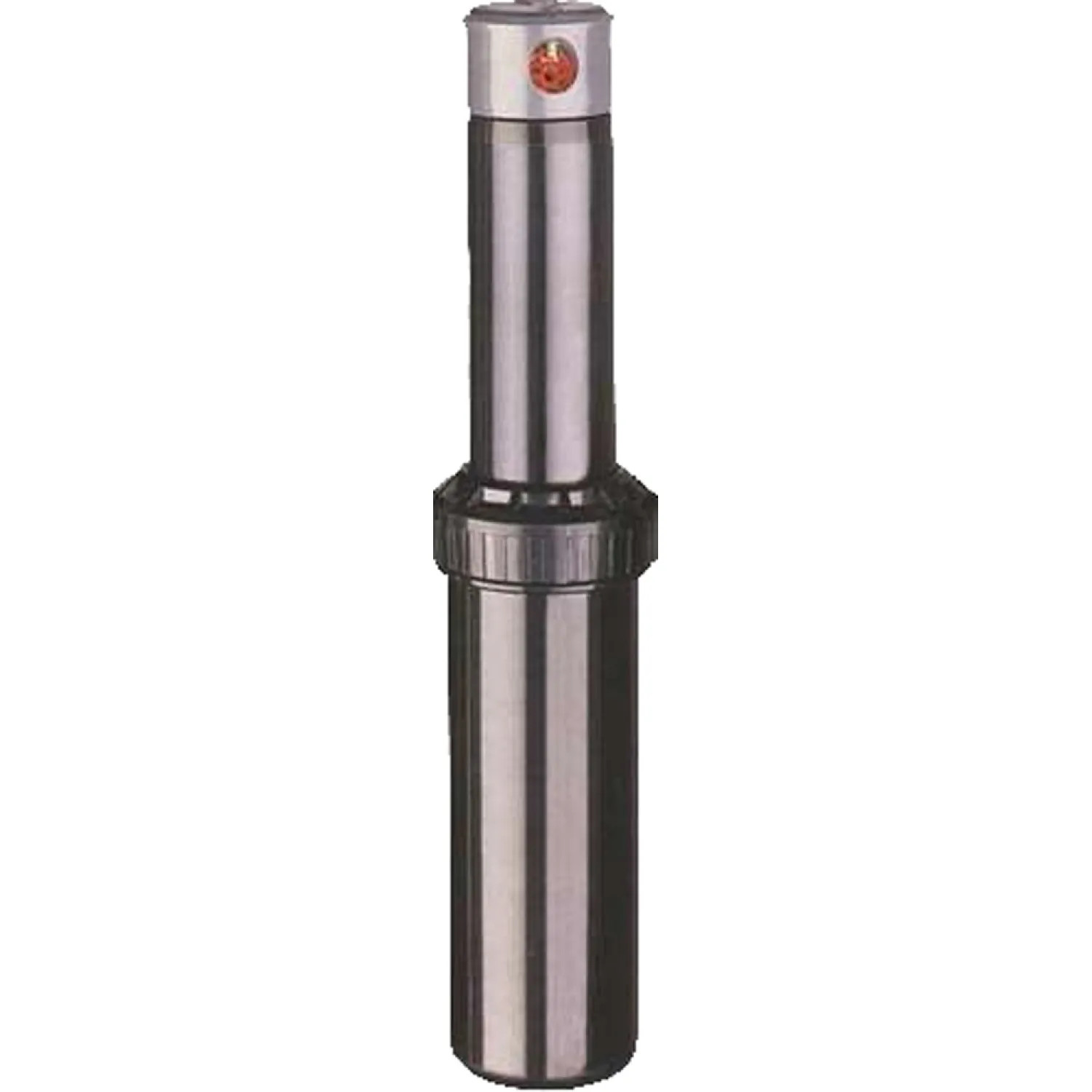

K-Rain 11003 ProPlus 5" Popup Rotor W/ Easy Arc Set, 3/4" FNPT Inlet

SKU: 7463


In Stock and Ready to Ship
More Buying Options

Ships From Price Qty
Nevada Warehouse
Available to Ship in 3-5 days
$18.99/ea 243
Order From Manufacturer
Available to Ship in 1-2 weeks

About the K-Rain 11003

The K-Rain 11003 ProPlus 5" pop-up gear-driven rotor is simple to fine-tune either wet or dry with 2N1 Adjustable or Continuous Rotation from 40 degrees through a full 360-degree circle. Current watering patterns are clearly displayed with patented Easy-Arc-Set degree markings on the K-Rain 11003; and if the nozzle turret is forced beyond its stop, whether by inexperienced users or vandals, the Arc Memory Clutch prevents damage to the internal gears and returns the rotor to its previous setting. Continuous reverse and return are assured by a patented, time-tested reversing mechanism; and the left starting position can be easily adjusted with a quick turn of the ratcheting riser. ProPlus rotors have a 3/4" female threaded NPT inlet and replace all standard rotors. K-Rain provides a wide variety of standard and low-angle nozzles, allowing a great deal of flexibility in the design of the irrigation system. A rubber cover keeps dirt and debris out to help maintain the reliability of this K-Rain 11003 ProPlus 5" pop-up rotor, which is also protected by a 5-year limited warranty. With more than 95 patents and over 40 years proving their products in the harshest of real-world environments, K-Rain has become an industry leader for commercial and residential irrigation in manufacturing gear-driven rotors, sprinklers, sprays, valves, and controllers that are easy to install, set, and use.

Product Details

Product: Rotor
Manufacturer: K-Rain
Style: Riser
Connection Type: Threaded
Degree: 40-360 Degrees
Use: Irrigation
Mpn # 11003
Shipping Dimensions 7.5" x 2.8" x 2.8"
Weight 0.70 lbs.

Product Features

  • **Revolutionary, patented easy-arc set: Simplified arc-set allows for wet or dry adjustment in seconds.
  • 5-inch riser is perfect for taller grass with thick thatch.
  • 3/4-inch Female threaded NPT inlet replaces all standard rotors.
  • 2N1 Adjustable or Continuous Rotation provides a full range of adjustment from 40 degrees to a 360-degree continuous circle.
  • Patented arc-set degree markings clearly indicate the current watering pattern and simplify arc-set adjustment.
  • Arc memory-clutch prevents internal gear damage and returns rotor to its prior setting automatically if nozzle turret is forced past its stop.
  • Time-proven (over a 20-year history), patented reversing-mechanism assures continuous reverse and return.
  • Ratcheting riser allows for easy adjustment of your left starting position with a simple turn of the riser.
  • Rubber cover seals out dirt and increases product durability.
  • Wide selection of nozzles, including standard and low-angle, provides flexibility in system design.
  • Optional check valve prevents low-head drainage.
  • Flow range is 0.5 to 10 gpm.
  • Pressure rating is 20 to 70 psi.
  • Precipitation rate is 0.06 to 0.5 inches per hour (depending on spacing and nozzle).
  • Overall height (popped down) is 7-1/2 inches, and 17 inches for the high-pop.
  • 5-Year Limited Warranty
  • Revolutionary, patented easy-arc set: Simplified arc-set allows for wet or dry adjustment in seconds.
