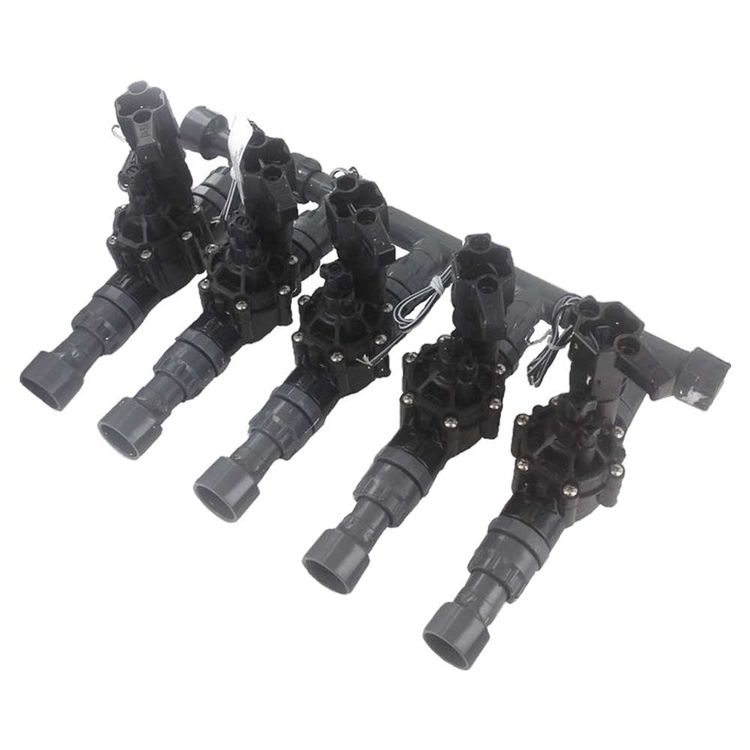

Rain Bird 100DVF-DMF5 1" Dura Manifold 5 Valve Set-Up with Rainbird 100DVF Valves

SKU: 108547

$116.30/ea
Save 45% · Retail: $213.35

In Stock and Ready to Ship
More Buying Options


Ships From Price Qty
Nevada Warehouse
Available to Ship in 3-5 days
$116.30/ea 6
Order From Manufacturer
Available to Ship in 3-4 weeks
$116.30/ea

About the Pstock MANIFOLD5100DVF

Expand your sprinkler zones with this Rain bird 100DVF valve with the Dura DMF5 1" manifold in a 5-valve setup. With this setup, you don't have to stress yourself in choosing a valve and a manifold separately.

Rain bird's 100DVF series comes with features beneficial to your sprinkler system and, along with the Dura 1" manifold, will surely increase the lifespan and decrease maintenance of your sprinkler system. The Rain bird 100DV offers a low-power encapsulated solenoid which improves energy-efficiency without decreasing performance and a balanced-pressure diaphragm (Buna-N) for added durability. It's Buna-N diaphragm comes with a 200-micron self-cleaning water filter pilot and captive spring which reduces downtime due to dirt in the system. Dirt and debris can easily be removed thanks to its external bleed flushing capabilities. Optimum reliability is assured by a double-filtered pilot-flow design, an internal bleed for spray-free manual operation, and can even operate in Xerigation and low-flow applications when the RBY filter is installed upstream.

The DVF Series also enjoys Rain bird's latest innovations like the patented easy-to-turn pressure assisted flow control mechanism which is designed for optimal flow control, giving you more options in setting up your sprinkler system.

Rain bird and Dura are both tested and proven products in their respected field, and PlumbersStock has seen it fit to pair those products together to create a ready-to-use, already-assembled sprinkler valve manifold for you. No hustle and less trouble.


Product Details

Product: Manifold
Type: Valve Set
Trade Tools: Landscape & Garden
Color: Black
Mpn # MANIFOLD5100DVF
Weight 10.50 lbs.

Product Features

  • Makes installing and/or repairing valves easy
  • Eliminates need to cut and re-glue sections of pipe to rebuild damaged manifolds or valves
  • All fittings include o-rings so there is no need to use teflon or pipe dope on each connection
  • 5-valve manifold setup
  • 1 in. (26/34) standard in-line configuration
  • Unique, easy-to-turn patented pressure assisted flow control mechanism
  • Double-filtered pilot-flow design for maximum reliability
  • Balanced-pressure diaphragm for long life
  • External bleed to manually flush system of dirt and debris during installation and system start-up
  • Internal bleed for spray-free manual operation
  • Energy-efficient, low-power encapsulated solenoid with captured plunger and 90-mesh (200 micron) solenoid filter
  • Works with any standard sprinkler timer
  • Buna-N diaphragm with self-cleaning 90 mesh (200 micron) pilot water filter and captive spring
  • Operates in low-flow and Xerigation applications when the RBY filter is installed upstream
  • 1.25 in. (3,2 cm) stainless steel phillips head screws
  • Accepts latching solenoid for use with Rain Bird battery-operated controllers
  • 0.2 to 40 gpm
  • Unique, easy-to-turn patented pressure assisted flow control mechanism (DVF models only)

Reviews

4.5 out of 5 rating is our rating for PlumbersStock, we got that rating because we have lots of experience and great people with expertise in plumbing. BUT WE WANT YOUR HELP. This product doesn't have any reviews yet, and we don't want to write our own reviews. It is more valuable to us that the customers get to share their experience with our products. Please, if you have any experience with this product, take a moment to share and help someone else who is trying to make a decision. Thank you!

Questions & Answers

*PLUMBERSSTOCK EXPERT* responded:

Thank you for your interest in our product! The answer to your questions is yes. According to the manufacturer, this manifold and valve set-up has manual flow control. It is the center knob on the top of the valve. The “ F “ in DVF indicates a flow control. The manifold assembly is offered as both slip and FNPT. We hope this helps! Please refer to the specification sheet if you have more questions about the Rainbird 100DVF valve. Once you’ve made your selection, always remember to click Add to Cart to confirm your order, enter your zipcode and you’ll be all set! For availability inquiries, or to better understand lead and ship times, please contact one of our knowledgeable customer service representatives @ 435-868-4020 between 8:00 AM to 7:00 PM MT or through e-mail @ support@plumbersstock.com. You can also sign up for our Newsletter!

*PLUMBERSSTOCK EXPERT* responded:

Hi there! Thank you for posting your question here on PlumbersStock.com concerning the Manifold5 100DVF Valve. This manifold valve has a pressure rating (psi) of 15 to 150. You can check page 1 of this Technical Specification to view the information if you would like. We hope that this helps. Please don't hesitate to contact us if you have any further question about this product. We thank you for choosing PlumbersStock.com. Have a good day!

*PLUMBERSSTOCK EXPERT* responded:

Hello there! We appreciate you seeking our opinion regarding our Manifold 5 100DVF 1" Dura Manifold 5-Valve Set-up. Regarding this manifold, customers have attested to its superior quality and high performance. One customer considered this a perfect solution to his system and would buy this valve again should he endeavor on another project where he needs it. He would even recommend it to his family and friends. Another customer lauded this manifold not only for its affordability but also for its reasonable quality. Hope this will help you make your choice. If you decide to place an order, just click Add To Cart and fill in the required fields and you're good to go! Should you have further questions, please let us know. Feel free to view the technical specifications as well for more information on this manifold valve set-up. We are eager to help you better your home and partner with you in all your plumbing needs. If you need assistance in creating an efficient irrigation system for your lawn and garden, PlumbersStock is offering that for FREE! Simply visit our Sprinkler Design Center to get started.

*PLUMBERSSTOCK EXPERT* responded:

Good day! In response to your inquiry about the Dura 1" Manifold and RainBird 100DVF valve set, yes, it will fit. There should be plenty of room in that size of a box. If you're interested in purchasing the Manifold5 100DVF, simply click "Add to Cart" and enter the required information and you'll be all set. If you have any further questions or concerns, please do not hesitate to contact us. We're glad that you chose PlumbersStock.com to get answers for your plumbing questions. We wish you a joyful day!
