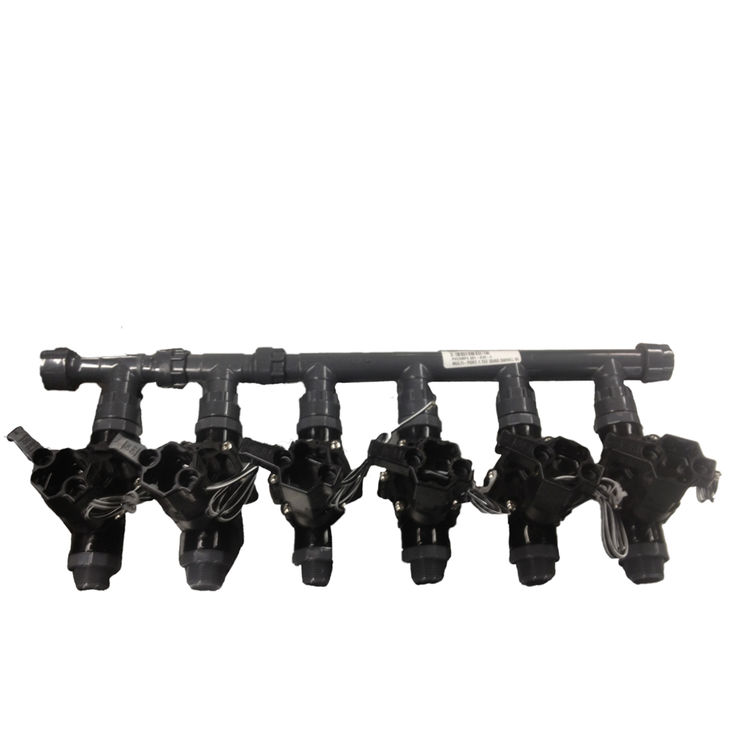

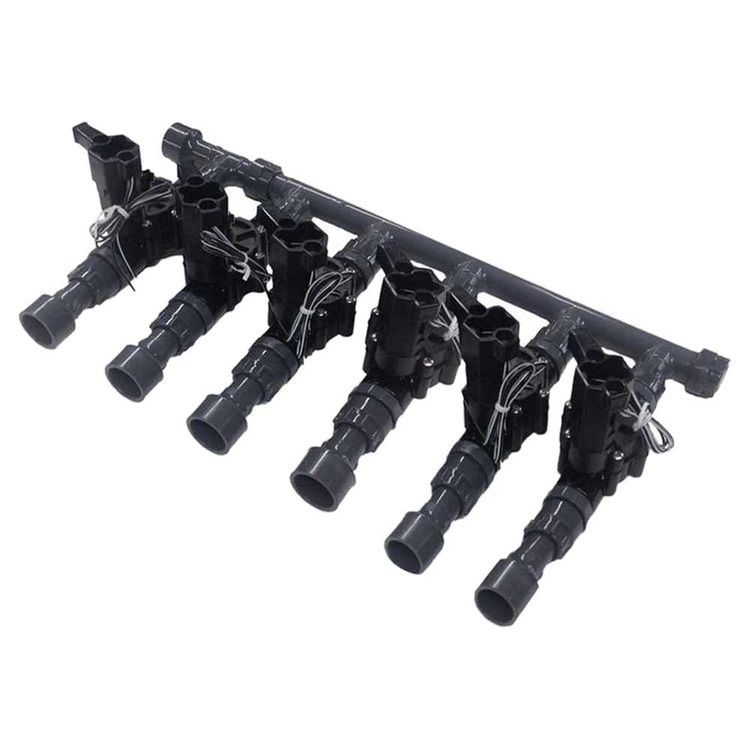

Rainbird 100DVF-DMF6 Valve with Dura 1" Manifold

SKU: 108548

$133.50/ea
Save 48% · Retail: $255.85

In Stock and Ready to Ship
More Buying Options


Ships From Price Qty
Nevada Warehouse
Available to Ship in 3-5 days
$133.50/ea 4
Order From Manufacturer
Available to Ship in 3-4 weeks
$133.50/ea

About the Pstock MANIFOLD6100DVF

Expand your sprinkler zones with this Rainbird 100DVF valve with the Dura DMF6 1" manifold in a 6-valve setup. With this setup, you don't have to stress yourself in choosing a valve and a manifold separately.

Rainbird's 100DVF series comes with features beneficial to your sprinkler system and, along with the Dura 1" manifold, will surely increase the lifespan and decrease maintenance of your sprinkler system. The Rainbird 100DV offers a low-power encapsulated solenoid which improves energy-efficiency without decreasing performance and a balanced-pressure diaphragm (Buna-N) for added durability. It's Buna-N diaphragm comes with a 200-micron self-cleaning water filter pilot and captive spring which reduces downtime due to dirt in the system. Dirt and debris can easily be removed thanks to its external bleed flushing capabilities. Optimum reliability is assured by a double-filtered pilot-flow design, an internal bleed for spray-free manual operation, and can even operate in Xerigation and low-flow applications when the RBY filter is installed upstream.

The DVF Series also enjoys Rainbird's latest innovations like the patented easy-to-turn pressure assisted flow control mechanism which is designed for optimal flow control, giving you more options in setting up your sprinkler system.

Rainbird and Dura are both tested and proven products in their respected field, and PlumbersStock has seen it fit to pair those products together to create a ready-to-use, already-assembled sprinkler valve manifold for you. No hustle and less trouble.


Product Details

Product: Manifold
Trade Tools: Landscape & Garden
Type: Valve Set
Color: Black
Mpn # MANIFOLD6100DVF
Weight 12.50 lbs.

Product Features

  • Makes installing and/or repairing valves easy
  • Eliminates need to cut and re-glue sections of pipe to rebuild damaged manifolds or valves
  • All fittings include o-rings so there is no need to use teflon or pipe dope on each connection
  • 6-valve manifold setup
  • 1 in. (26/34) standard in-line configuration
  • Unique, easy-to-turn patented pressure assisted flow control mechanism
  • Double-filtered pilot-flow design for maximum reliability
  • Balanced-pressure diaphragm for long life
  • External bleed to manually flush system of dirt and debris during installation and system start-up
  • Internal bleed for spray-free manual operation
  • Energy-efficient, low-power encapsulated solenoid with captured plunger and 90-mesh (200 micron) solenoid filter
  • Works with any standard sprinkler timer
  • Buna-N diaphragm with self-cleaning 90 mesh (200 micron) pilot water filter and captive spring
  • Operates in low-flow and Xerigation applications when the RBY filter is installed upstream
  • 1.25 in. (3,2 cm) stainless steel phillips head screws
  • Accepts latching solenoid for use with Rain Bird battery-operated controllers
  • 0.2 to 40 gpm
  • Unique, easy-to-turn patented pressure assisted flow control mechanism (DVF models only)

Reviews

4.5 out of 5 rating is our rating for PlumbersStock, we got that rating because we have lots of experience and great people with expertise in plumbing. BUT WE WANT YOUR HELP. This product doesn't have any reviews yet, and we don't want to write our own reviews. It is more valuable to us that the customers get to share their experience with our products. Please, if you have any experience with this product, take a moment to share and help someone else who is trying to make a decision. Thank you!

Questions & Answers

*PLUMBERSSTOCK EXPERT* responded:

Hi, there! Thank you for taking interest in our Dura 100DVF Manifold with Rainbird 100DVF valves. Yes, the inlets can be either end and the valve does have slip joint connections. If you need to install a new sprinkler system, we can design it for you - for free! Visit our sprinkler design page for more details. Hope this helps. Thank you and we hope to see you again here at PlumbersStock.com

*PLUMBERSSTOCK EXPERT* responded:

Good day! Thank you for taking interest in our Dura 100DVF Manifold with Rainbird 100DVF valves. Yes, you can take off the end cap and add a new connection (manifold tee) for another valve. Just click on Add to Cart if this manifold valve set-up is what you're looking for. If you need assistance in creating an efficient irrigation system for your lawn and garden, PlumbersStock is offering that for FREE! Simply visit our Sprinkler Design Center to get started. Thanks for choosing PlumbersStock.com as your online shopping buddy. Have a great day!

*PLUMBERSSTOCK EXPERT* responded:

Hi, good day! Thank you for asking assistance from the PlumbersStock team. The distance between the valves is 3.75". We hope that this helps. You may check this Installation Manual for your reference. Thank you for choosing PlumbersStock.com. Have a great day!

*PLUMBERSSTOCK EXPERT* responded:

Hi, there! Thank you for asking assistance from the PlumbersStock team. If we look at length of the manifold of Rainbird 100DVF-DMF6 it reaches to 22.5”, it would fit on the VB-SPR series of valve boxes. We have it on the PlumbersStock, the Super Jumbo Valve Box. If you are all set to purchase this item, simply add it to your cart to start placing your order. Have a great day!
