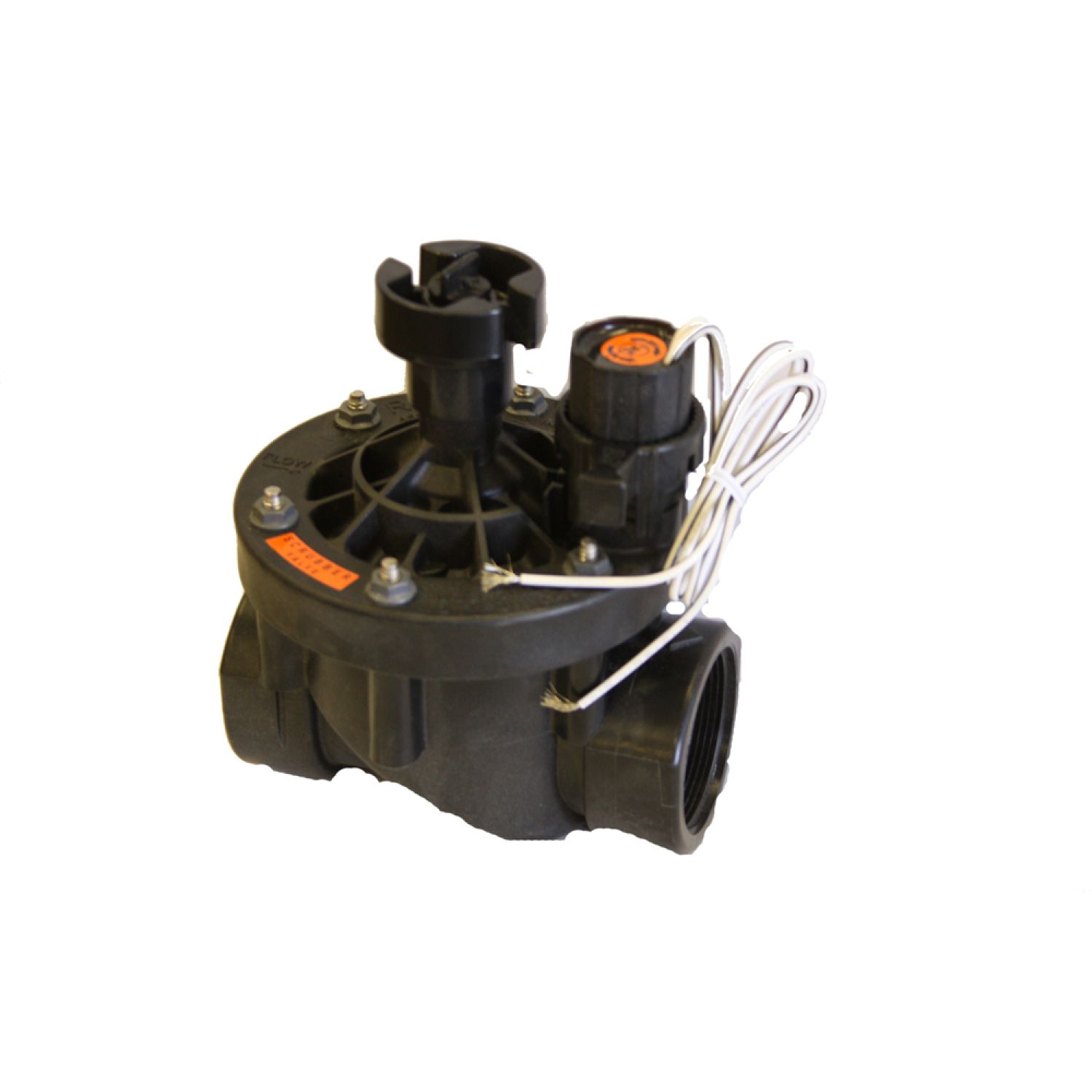

Rainbird 200PESB 24 VAC 2-Inch Scrubber Solenoid Valve

SKU: 11006

$129.61/ea
Save 49% · Retail: $251.69

In Stock and Ready to Ship!
More Buying Options


Ships From Price Qty
Nevada Warehouse
Ships in 3-4 Days
$129.61/ea 6
Order From Manufacturer
Available to Ship in 2-3 weeks
$129.61/ea

About the Rainbird 200PESB

Rainbird 200PESB 2 Scrubber Solenoid Valve. The Rain Bird 200PESB is a 2" 24V-AC Commercial Electric Control Valve. This valve set features a durable glass-filled nylon construction with fabric-reinforced rubber diaphragm for long-lived reliability, a globe configuration, closed, forward flow design, slow closing for preventing the water hammer and subsequent system damage, and a low-flow capability for a wide range of applications. It also features a single-piece solenoid design with captured plunger and spring for easy servicing; flow control handle adjusts water flows as needed; a manual internal bleed that manually operates the valve without allowing water into the valve box, allowing the pressure regulator to be adjusted without turning the valve on at the controller first; a manual external bleed that permits flushing debris from the system, most recommended for system start up and after repairs; stainless steel studs that are molded into the body, making the bonnet more easily attached and removed with less of a chance of damaging any threads; and a nylon scrubber that scrapes a stainless steel screen to clean and break down any grit and plant material, preventing debris build-up and clogging.

Product Details

Manufacturer: Rainbird
Style: Repair & Replacement
Mpn # 200PESB
Weight 3.11 lbs.

Product Features

  • 0.28 A (6.7 VA) holding current
  • Flow control handle adjusts water flows as needed.
  • Flow with PRS-D option: 5 to 200 GPM (1,14 to 45 m3/h; 0,32 to 12,60 l/s)
  • Flow without PRS-D option: 0.25 to 200 GPM (0,06 to 45 m3/h; 0,02 to 12,60 l/s)
  • Globe configuration.
  • Low flow capability for a wide range of applications.
  • Manual external bleed permits flushing debris from the system. Recommended for system start up and after repairs.
  • Manual internal bleed manually operates the valve without allowing water into the valve box; allows pressure regulator to be adjusted without turning the valve on at the controller first.
  • Normally closed, forward flow design.
  • Nylon scrubber scrapes a stainless steel screen to clean and break down grit and plant material. Prevents debris build-up and clogging (PESB Series only).
  • One-piece solenoid design with captured plunger and spring for easy servicing. Prevents loss of parts during field service.
  • 0.41 A (9.8 VA) inrush curren
  • Optional purple flow control handle for non-potable water applications PEB-NP-HAN1 (1"); PEB-NP-HAN2 (1 1/2" and 2").
  • Pressure: 20 to 200 psi (1,4 to 13,8 bar)
  • Slow closing to prevent water hammer and subsequent system damage.
  • Solenoid coil resistance: 24 Ohms, nominal
  • Stainless steel studs molded into the body. Bonnet can be attached and removed more easily and more often without damaging threads.
  • Temperature: Up to 150 Degrees F (66 Degrees C)
  • 100-PEB: 6 1/2" x 4" x 4" (16,5 cm) x (10,2 cm) x (10,2 cm)
  • 150-PEB: 8" x 6" x 6" (20,3 cm) x (15,2 cm) x (15,2 cm)
  • 200-PEB: 8" x 6" x 6" (20,3 cm) x (15,2 cm) x (15,2 cm) Note: The PRS-D option adds 2" (5,1 cm) to the valve height.
  • 24 VAC 50/60 Hz (cycles per second) solenoid power requirement: 0.41 A (9.8 VA) inrush curren 0.28 A (6.7 VA) holding current
  • Accepts latching solenoid for use with Rain Bird battery-operated controllers.
  • Accommodates optional, field-installed PRS-D pressure regulating module to ensure optimum sprinkler performance.
  • Durable glass-filled nylon construction with fabric-reinforced rubber diaphragm for long life and reliable performance.

Reviews

4.5 out of 5 rating is our rating for PlumbersStock, we got that rating because we have lots of experience and great people with expertise in plumbing. BUT WE WANT YOUR HELP. This product doesn't have any reviews yet, and we don't want to write our own reviews. It is more valuable to us that the customers get to share their experience with our products. Please, if you have any experience with this product, take a moment to share and help someone else who is trying to make a decision. Thank you!

Questions & Answers

*PLUMBERSSTOCK EXPERT* responded:

There are a few different ways to flush a scrubber valve. The two easiest are external bleeding and internal bleeding. To activate the valve using the internal manual bleed feature, turn the solenoid handle counter clockwise until you hear water flowing through the valve. After you hear it run for a while you can turn the solenoid to close it off. (hand tighten only). The internal bleed is good for pushing small debris through the valve to insure leak free operation. If there is concern of larger debris or sand (which is often the case with scrubber valves) an External Bleed is recommended. Turn the bleed screw on the top of the valve counter clockwise. Water will leak externally into the valve box torelieve bonnet pressure opening the valve which should clear line. Turn the bleed screw clockwise to stop water flow and seal the valve making it ready for use once again.

*PLUMBERSSTOCK EXPERT* responded:

Hello! Thank you for visiting PlumbersStock.com. We are delighted that you're interested in our Rainbird 200PESB 24 VAC 2" scrubber solenoid valve. No, the solenoid is not sold separately. This scrubber solenoid valve comes with a solenoid. If you want to purchase this product, just click Add to Cart, enter your zip code and you're all set. If you have other inquiries, just contact one of our customer support specialists at 435-868-4020 or through e-mail @ support@plumbersstock.com. Have a fantastic day!

*PLUMBERSSTOCK EXPERT* responded:

Hello! Yes, it can. According to the manufacturer, you can overhaul or rebuild this Rainbird 200PESB 2" Scrubber Solenoid Valve. The RainBird 20PESBDIBO is a kit that includes its valve replacement diaphragm assembly and bonnet assembly. To order this scrubber solenoid valve, simply click on Add to Cart and enter your information in the required fields. If you need the RainBird 20PESBDIBO replacement kit, please have the product number ready and contact one of our customer service representatives at 435-868-4020 between 8:00 AM and 7:00 PM MT or through e-mail at support@plumbersstock.com. Thank you for choosing PlumbersStock!

*PLUMBERSSTOCK EXPERT* responded:

Hi! Thank you for posting a question regarding our Rainbird 200PESB 24 VAC 2-Inch Scrubber Solenoid Valve. To turn the valve on manually - turn the solenoid 1/4 turn counterclockwise. Do not turn past 1/4 turn or the solenoid may come loose and release pressurized water. Please check page 7 of this Troubleshooting and Maintenance Guide. Also, here is the Installation and Operating Instructions for detailed proper guidelines. If you'd like to know more about the PESB Series Valves and its features, here is the Specification Sheet. If you're interested in purchasing the Rainbird 200PESB, just click the "Add to Cart" button, enter your zip code and you'll be all set. Thank you for visiting PlumbersStock.com. Have a great day!
