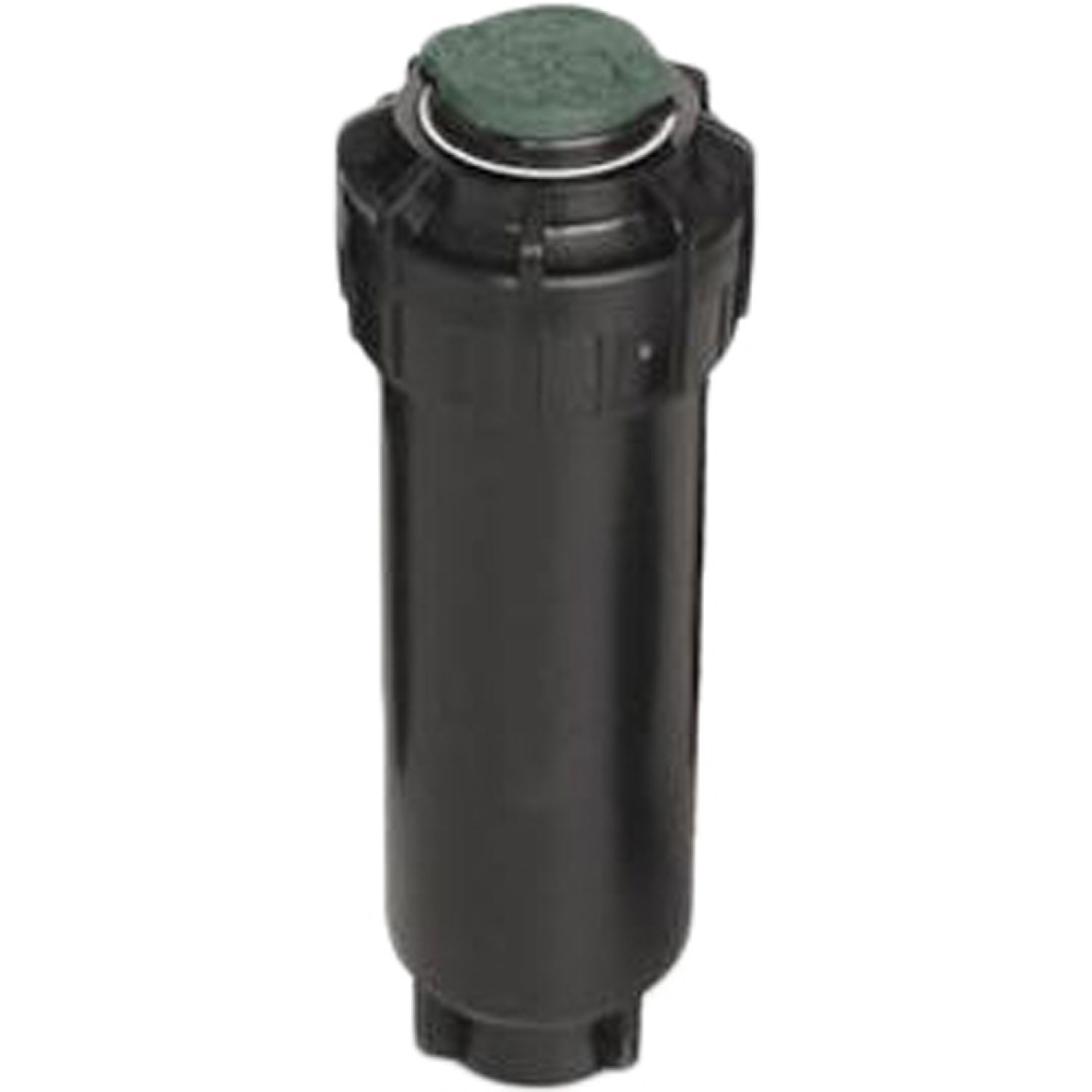

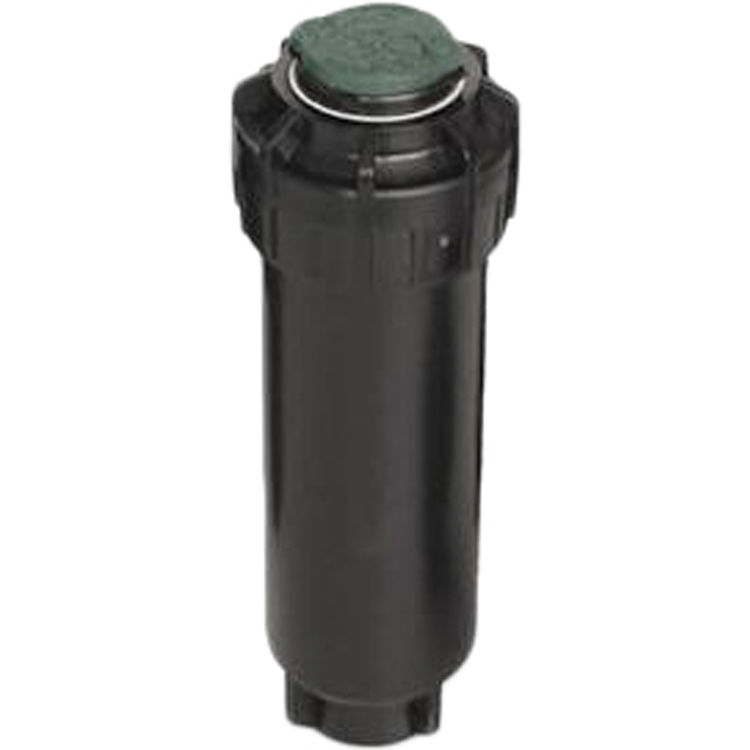

Rainbird 5004+PCSR 4" Part/Reverse Full Circle Pop-Up With SAM & PRS

Product Features

• 3/4" (20/27) NPT female bottom threaded inlet
• Flow Rate: 0.73 to 9.63 gpm (4,2 to 36,6 l/m)
• Full circle only adjustment 360 Degrees
• Heavy-duty cover assembly for extra durability.
• Heavy-duty retract spring assures positive pop-down.
• Improving nozzle distribution uniformity by operating the nozzle at optimum pressure
• In-stem pressure regulator (PRS) reduces operating pressure to 45 psi (3,1 bar) for optimal nozzle performance
• Maintenance-free design can be easily retrofitted into existing 5000/5000 Plus, T-Bird and Hunter PGP (using UPG model) rotor cases without digging up the entire body
• Optional Pressure Regulating Stem (PRS) which regulates pressure at the head, assuring optimum performance.
• Optional Seal-A-Matic (SAM) check valve which prevents water from pooling at the base of slopes or hillsides.
• Optional stainless steel riser helps deter vandalism on public turf areas (4" and 6" 5000 Plus / 5000 Plus PRS only)
• 40 - 360 Degrees arc rotation and reversing full circle rotation in one.
• Overall body height: Shrub: 7 3/4" (19,7cm) 4": 7 3/8" (18, 5 cm); 6": 9 5/8" (24,5 cm); 12": 16 7/8" (42,9 cm)
• Pop-up height: Shrub; 4" (10,2 cm); 6" (15,2 cm); 12" (30,5 cm)
• Precipitation rate: 0.20 to 1.01 inches per hour (5 to 26 mm/h)
• Pressure: 25-65 psi (1,7 to 4,5 bar)
• Pressure: 25-75 psi (1,7 to 5,2 bar)
• Pressure-activated multi-function wiper seal protects internals from debris and assures positive pop-up and retraction.
• PRS saves water by: Eliminating head-to-head pressure variations Eliminating misting due to high pressure Improving nozzle distribution uniformity by operating the nozzle at optimum pressure
• Radius adjustment screw allows up to 25% radius reduction without changing nozzles.
• Radius may be reduced up to 25% with radius reduction screw
• Radius: 25 to 50 feet (7,6 to 15,2 m)
• 5000, 5000 Plus and 5000 Plus PRS Series Rotors are available in 4", 6", 12", Shrub, and Stainless Steel (5000 Plus/5000 Plus PRS 4" & 6" only) models.
• Rain Curtain Nozzles.
• Reinforced flow path for additional side load strength.
• Reversing full and part circle adjustment 40 Degrees ? 360 Degrees
• Slip clutch mechanism for quick adjustment on installation.
• Standard rubber cover for extra protection. 5000 Plus/5000 Plus PRS feature a green cover while the 5000 features a black cover.
• The 5000 Plus features a Flow Shut-Off device to stop the flow of water to a particular head while the system is still in operation.
• Top-adjust arc adjustment requiring only a flat-blade screwdriver.
• True 4" (10 cm), 6" (15,2 cm) and 12" (30,5 cm) pop-up (measured from the cover to the nozzle).
• Additional O-rings and seals for extra protection in "gritty" water.
• Eliminating head-to-head pressure variations
• Eliminating misting due to high pressure
• Exposed surface diameter: 1 5/8" (4,1 cm)
• Faster maintenance with a new self-cleaning arc adjustment screw.
• Five-year trade warranty.
