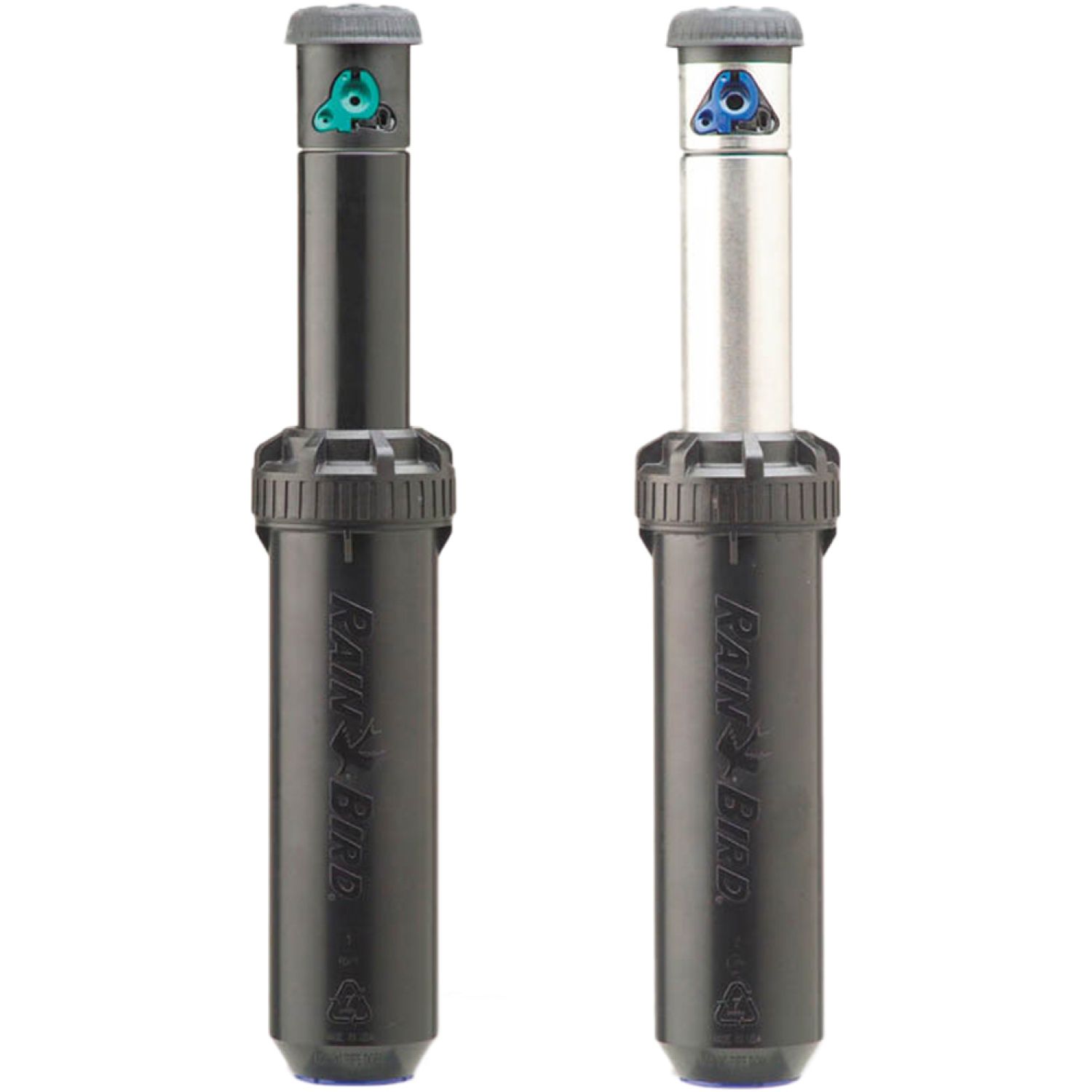

Rainbird 8005SS 1" Full/Part Circle Rotor Stainless Riser

SKU: 20347
Save 50% · Retail: $100.00

In Stock and Ready to Ship!
More Buying Options

Ships From Price Qty
Nevada Warehouse
Ships in 3-4 Days
$50.44/ea 3
Order From Manufacturer
Available to Ship in 2-3 weeks

About the Rainbird 8005SS

Rainbird 8005SS Part/Full Circle Stainless No Riser. The Rain Bird 8005SS is a 1" Full/Part Circle Rotor Pop-Up Sprinkler that features a Memory Arc rotor that returns to it's original arc setting, a non-strippable drive mechanism and brass reinforcing shaft of the nozzle turret to riser, making it resistant to most vandal damage, and a full/part circle operation in one unit to reduce inventory requirements.

Product Details

Product: Rotor
Manufacturer: Rainbird
Mpn # 8005SS
Weight 1.71 lbs.

Product Features

  • Brass reinforcing shaft of the nozzle turret to riser withstands vandal kick
  • Easy, wet or dry arc adjustment with slotted screwdriver through top of rotor from 50-degrees to 330-degrees part-circle, 360-degrees non-reversing full-circle
  • Five year trade warranty
  • Heavy duty retract spring ensures positive pop-down
  • Left and right side trips adjustable for ease of installation without turning the case and loosening the pipe connection
  • Nozzle outlet trajectory is 25
  • Nozzles are interchangeable from the front with no special tools
  • Purple rubber cover for non-potable applications
  • Optional stainless steel riser model helps deter vandalism on public turf areas
  • Overall diameter: 3-1/8" (7,9 cm)
  • Overall height: 10-1/8" (25,7 cm)
  • Pop-up height: 5" (12,7 cm)
  • Pressure: 50 to 100 PSI (3.5 to 6.9 bar)
  • Radius: 39 to 81 feet (11.9 to 24.7 m)
  • Rain Curtain nozzles for optimal distribution and close-in watering resulting in superior uniformity
  • Rain Curtain Nozzles: 04 - black 06 - light blue 08 - dark green 10 - gray 12 - beige 14 - light green 16 - dark brown 18 - dark blue 20 - red 22 - yellow 24 - orange 26 - white
  • SAM check device holds up to 10 feet (3.1 m) of head.
  • Seal-A-Matic (SAM) check device/riser to help prevent low head drainage
  • Self-adjusting turbine stator allows nozzle replacement with no other adjustments required
  • 1" (26/34) NPT or BSP female threaded inlet
  • Water-lubricated gear drive
