Rainbird LFV075 Rainbird LFV075 3/4 Low Flow Dv Control Valve

Rainbird LFV075 3/4 Low Flow Dv Control Valve

SKU: 42471
-34.4%
$ 28 .63 / ea
$ 43 .65 / ea
visa mastercard american-express discover paypal crypto
Qty
inventory_2 12 in Stock
add_shopping_cart Add To Cart
local_shipping In Stock and Ready to Ship
warehouse Ships from Cedar City Utah Warehouse
add More Buying Options  from $28.63
Manufacturer
$ 28 .63 / ea
local_shipping Available to Ship in 2-3 weeks
factory Orders from the Manufacturer
inventory_2 Unlimited Availability for Orders
add_shopping_cart Add To Cart
Free Sprinkler Design

About the Rainbird LFV075 3/4 Low Flow Dv Control Valve

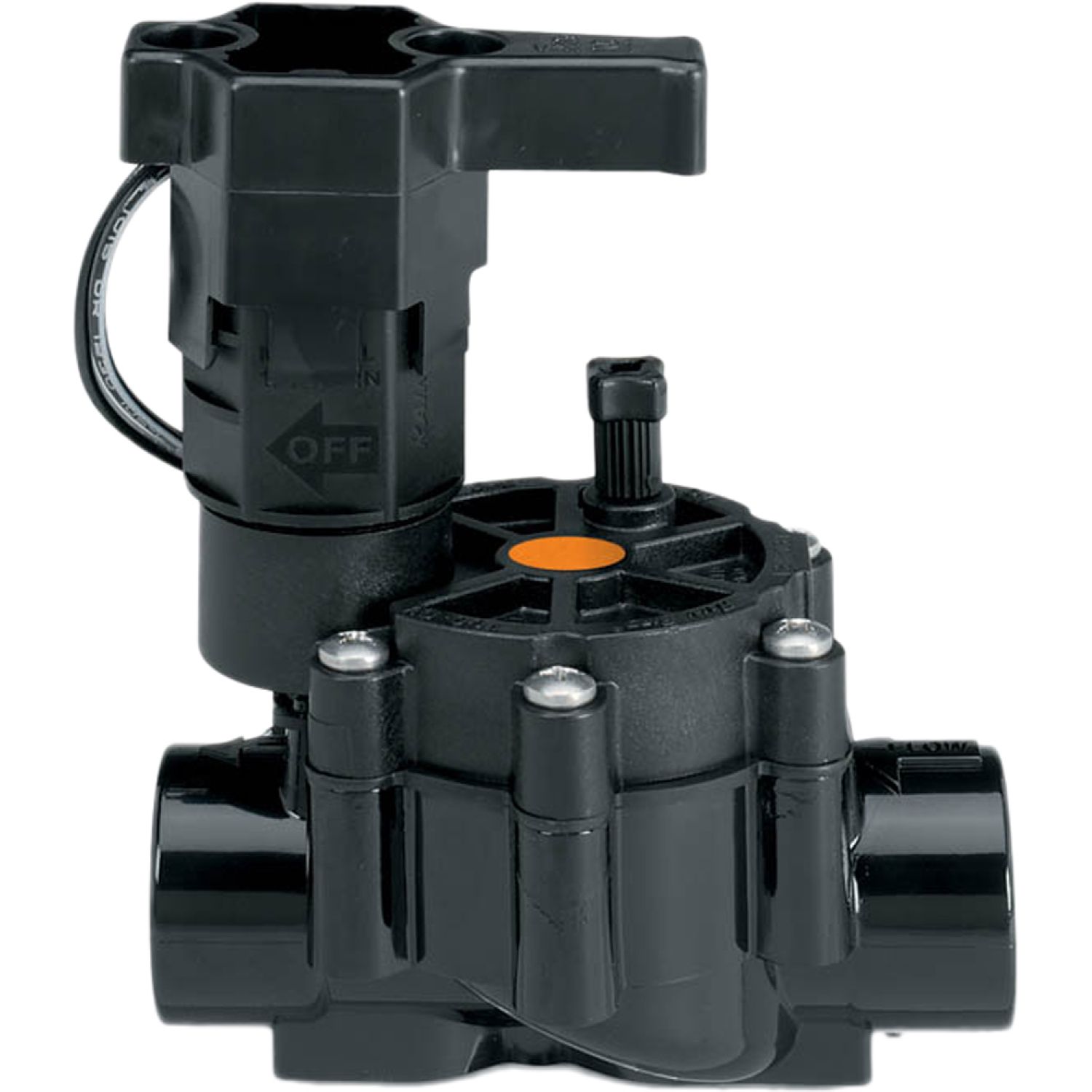

Rainbird LFV075 3/4 Low Flow Dv Control Valve. The Rain Bird LFV075 is a 3/4" Low Flow DV Control Valve. It features a unique "double-knife" diaphragm coupled with a 1/2" diameter seat for flawless operation at low flow rates, a double-filtered pilot flow design for maximum reliability, an external bleed to manually flush the system of dirt and debris during installation and system start up, and an internal bleed for spray-free manual operation.

Manufacturer: Rainbird
Sprinkler Valve Features: Globe Valve/ Angle Valve
Mpn # LFV075
Weight 0.95 lbs.
  • 24 VAC 50/60 Hz (cycles/sec) solenoid
  • Unique "double-knife" diaphragm coupled with 1/2" diameter seat for flawless operation at low flow rates.
  • Double-filtered pilot flow design for maximum reliability.
  • External bleed to manually flush the system of dirt and debris during installation and system start-up.
  • Flow: 0.20 to 8.0 gpm (0.6 to 30.0 l/m)
  • Holding current: 0.19 A (4.56 VA)
  • Inrush current: 0.30 (7.2 VA) at 60 Hz
  • Internal bleed for spray-free manual operation.
  • Low Flow Valve is available in 3/4" in-line model, and 3/4" Anti-Siphon Valve.
  • Pressure: 15 to 150 psi (1.0 to 10.3 bars)
