Rainbird LFV100 24 VAC 1" Low Flow DV Control Valve

SKU: 41890

$22.10/ea
Save 30% · Retail: $31.67

In Stock and Ready to Ship!


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$22.10/ea

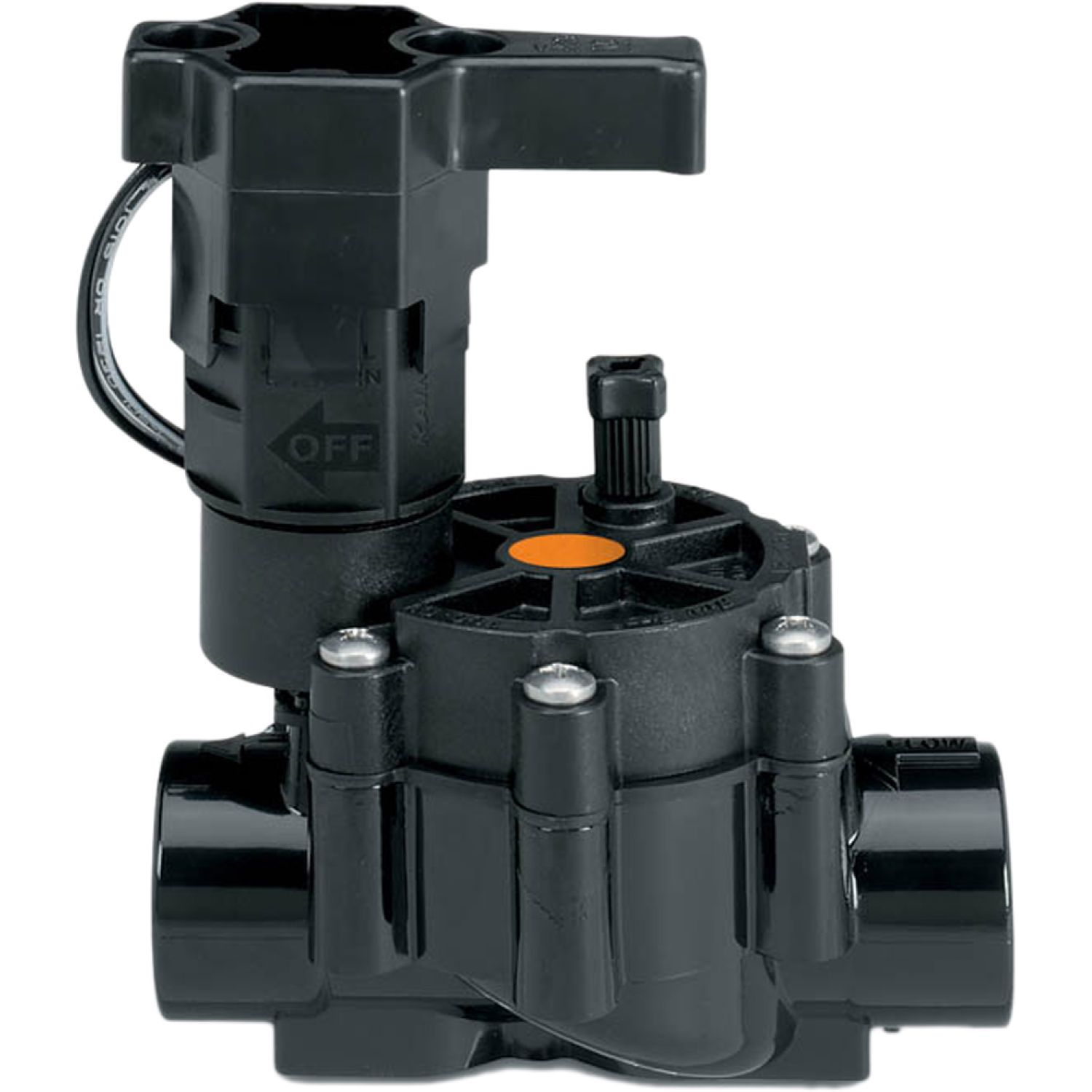

About the Rainbird LFV100

Rainbird LFV100 1 Low Flow Dv Control Valve. The Rain Bird LFV100 is a 1" Low Flow DV Control Valve. It features a unique "double-knife" diaphragm coupled with a 1/2" diameter seat for flawless operation at low flow rates, a double-filtered pilot flow design for maximum reliability, an external bleed to manually flush the system of dirt and debris during installation and system start up, and an internal bleed for spray-free manual operation.

Product Details

Manufacturer: Rainbird
Sprinkler Valve Features: Globe Valve/ Angle Valve
Mpn # LFV100
Weight 0.93 lbs.

Product Features

  • 24 VAC 50/60 Hz (cycles/sec) solenoid
  • Unique "double-knife" diaphragm coupled with 1/2" diameter seat for flawless operation at low flow rates.
  • Double-filtered pilot flow design for maximum reliability.
  • External bleed to manually flush the system of dirt and debris during installation and system start-up.
  • Flow: 0.20 to 8.0 gpm (0.6 to 30.0 l/m)
  • Holding current: 0.19 A (4.56 VA)
  • Inrush current: 0.30 (7.2 VA) at 60 Hz
  • Internal bleed for spray-free manual operation.
  • Low Flow Valve is available in 3/4" in-line model, and 3/4" Anti-Siphon Valve.
  • Pressure: 15 to 150 psi (1.0 to 10.3 bars)

Reviews

4.5 out of 5 rating is our rating for plumbersstock.com, we got that rating because we have lots of experience and great people with expertise in plumbing. BUT WE WANT YOUR HELP. This product doesn't have any reviews yet, and we don't want to write our own reviews. It is more valuable to us that the customers get to share their experience with our products. Please, if you have any experience with this product, take a moment to share and help someone else who is trying to make a decision. Thank you!

Questions & Answers

*PLUMBERSSTOCK EXPERT* responded:

As of June 09, 2016 we have 2 of this item in stock and available for immediate shipment. Any quantity purchased above 2 would have an extended lead time of 2 - 3 weeks. Thank you!
