Rainbird TSJ12075 Rainbird TSJ12075 12

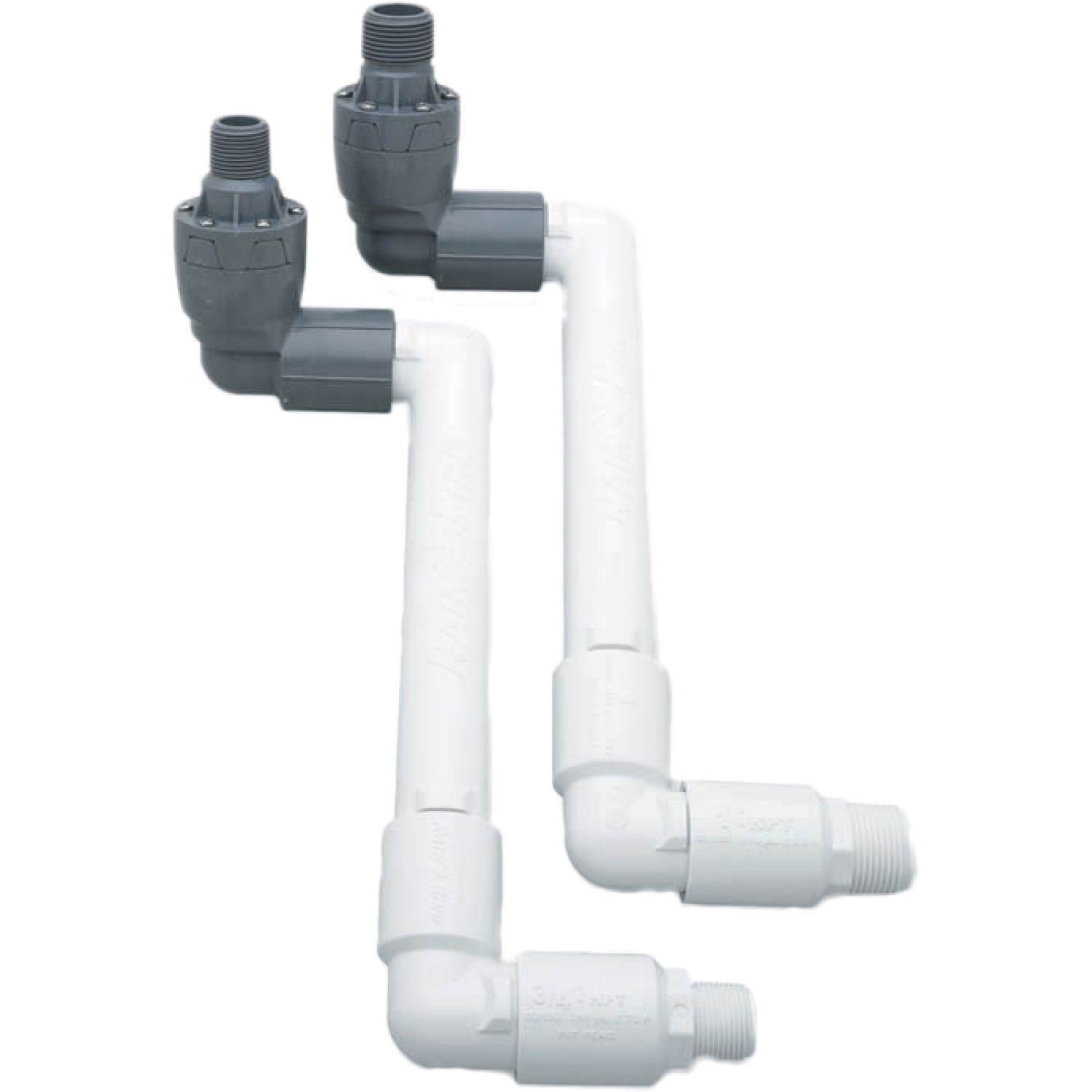

Rainbird TSJ12075 12" Long 3/4 M X M NPT Swing Joint

SKU: 41573
-43.1%
$ 17 .35 / ea
$ 30 .50 / ea
visa mastercard american-express discover paypal crypto
Qty
inventory_2 Unlimited Availability
add_shopping_cart Add To Cart
local_shipping Available to Ship in 2-3 weeks
factory Orders from the Manufacturer
Free Sprinkler Design

About the Rainbird TSJ12075 12" Long 3/4 M X M NPT Swing Joint

Rainbird TSJ12075 12 Long 3/4 M X M Npt Swing Joint. The Rain Bird TSJ12075 is a 12"-Long 3/4"-Diameter Swing Joint (Male x Male). This swing joint features no sharp inner corners, no internal obstructions, oversized threaded inlets and extra-large grips that make it easy to hand-tighten, a patented double-O-ring design that provides an extra layer of protection against leaks and keeps threads clean of debris during installation, and a patented low-pressure relief vent that prevents pressure from building up between the two o-rings when the swing joint is assembled in water which eliminates any blown o-rings.

Manufacturer: Rainbird
Length: 12"
Size: 3/4"
Mpn # TSJ12075
Weight 1.25 lbs.
  • Joint pressure Loss: 0,02 Bars at 0,4 l/s
  • Allows each rotor on a zone to operate at the same pressure, improving consistency and overall system performance.
  • Diaphragm is made of a durable fabric reinforced elastomer for long life.
  • Double O Ring provides extra protection against leaks and keeps threads clean of debris making hand tightening easy.
  • English: pressure Rating: 315 psi at 73 Joint pressure Loss: 0.3 psi at-gpm 1 Joint pressure Loss: 1.5 psi at 18 gpm; 2.5 psi at 23 gpm-Joint pressure Loss: 0.5 psi at 40 gpm; 1.6 psi at 70 gpm
  • Excellent structural integrity from the swept elbow design reduces the costs associated with fatiguer elated failures.
  • Installs quickly and easily, like all Rain Bird turf swing joints.
  • Maintain constant pressure at the rotor inlet for improved range of water application.
  • Maintains a constant, uniform pressure into the rotor regardless of nozzle used.
  • Metric: pressure Rating: 21,7 Bars at 22,8- Joint pressure
  • Oversized threaded inlets and large visible stops make hand tightening simple.
  • Joint pressure Loss: 0.3 psi at-gpm
  • Porous filter provides atmospheric reference without allowing contamination to enter, enabling the system to be buried in any kind of soil.
  • Preassembled units save the contractor time and reduce installation costs.
  • pressure Rating: 21,7 Bars at 22,8 C
  • Pressure Rating: 315 psi (21,7 Bars) @ 73 Degrees F (22,8 Degrees C) per ASTM D3139
  • pressure Rating: 315 psi at 73 F
  • Reduces misting, fogging, and other performance problems caused by high pressure.
  • Regulation pressure are preset to-nominal value for each TSJ-PRS:-45 psi (3,1 Bars) for 3/4" swing joints.-70 psi (4,8 Bars) for 1" swing joints.
  • Regulator housing is made of PVC that matches the high pressure rating of the Rain Bird turf swing joint and exceeds the pressure rating of rotors.
  • The TSJ-PRS combines the great flow characteristics of the Rain Bird turf swing joint with an inline pressure regulating outlet elbow for controlling and maintaining constant pressure right at the rotor inlet.
  • TSJ-PRS maximum flow: 22 gpm (1.4 l/s)
  • 1 1/2" joint pressure loss: 0.5 psi at 40 gpm; 1.6 psi at 70 gpm (0.03 bar at 2.5 l/s; 0.1 bar at 4.4 l/s)
  • Unique swept elbow flow characteristics optimize rotor performance.
  • 1" joint pressure loss: 1.5 psi at 18 gpm; 2.5 psi at 23 gpm (0.1 bar at 1.1 l/s; 0.2 bar at 1.5 l/s)
  • 1 Inch Joint pressure Loss: 0,1 Bars at 1,1 l/s; 0,2 Bars at 1,5 l/s
  • 1 Inch Joint pressure Loss: 1.5 psi at 18 gpm; 2.5 psi at 23 gpm
  • 1 Joint pressure Loss: 0,03 Bars at 2,5 l/s; 0,1 Bars at 4,4 l/s
  • 1 Joint pressure Loss: 0.5 psi at 40 gpm; 1.6 psi at 70 gpm
  • 3/4" joint pressure loss: 0.3 psi at 6 gpm (0.02 bar at 0.4 l/s)
