Rainbird XBD81 Xerigation Outlet Manifold (8-port)

SKU: 41023

Save 40% · Retail: $25.66

  Available to Ship in 4-5 weeks

Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks

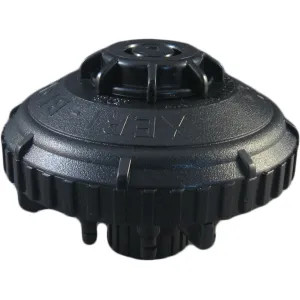

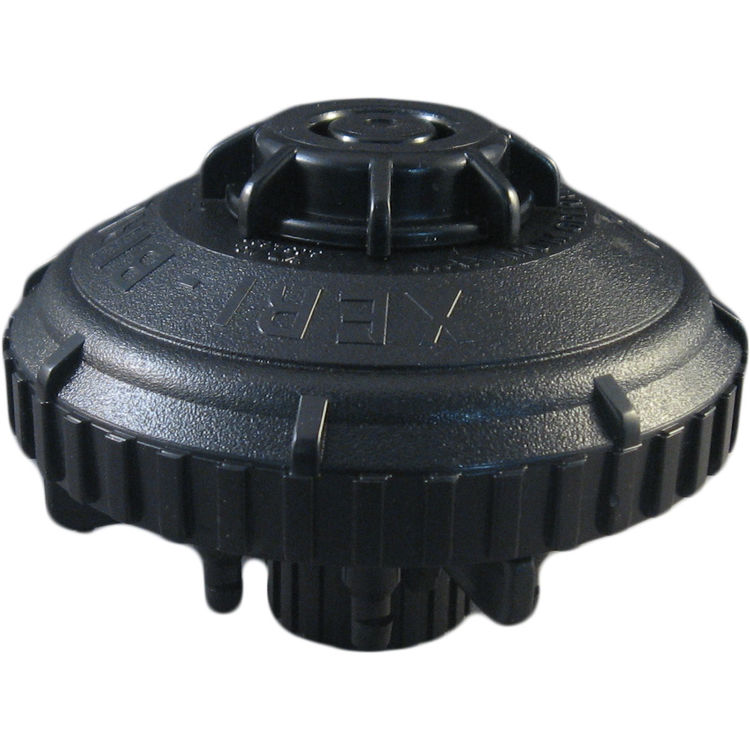

About the Rainbird XBD81

Rainbird XBD81 Xerigation Outlet Manifold. The Rain Bird XBD81 is a Xeri-Bird 8 Multi-Outlet Emission Device that comes with 7 removeable port plugs, 8 1-GPH Xeri-Bug Emitters (Factory Installed), and a filter. It features the ability to thread onto any 1/2" riser and deliver water to multiple locations for increased system flexibility, a Xeri-Bug emitter or PC Module adapter on each port for independent flows from 0.5 to 24 GPH, an integral 200 mesh filter which is easily serviced from the top of the unit, and 8 bottom-mounted sure-grip barbed outlets to securely retain 1/4" Distribution Tubing.

Product Details

Product: Emitters
Manufacturer: Rainbird
Use: Drip
Connection Type: Barbed
Mpn # XBD81
Shipping Dimensions 4.0" x 4.0" x 3.0"
Weight 0.36 lbs.

Product Features

  • Each port accepts a Xeri-Bug Emitter or PC Module for independent flows from 0.5 to 24 GPH (1.89 to 90.84 l/h) or use a self-piercing barb connector (SPB-025) for unrestricted flow
  • Eight bottom-mounted, sure-grip barbed outlets securely retain 1/4" distribution tubing (XQ)
  • Flow Rate: 0 to 24 GPH (0 to 90.84 l/h) per outlet
  • Threads onto any 1/2" riser and delivers water to multiple locations for increased system flexibility
  • Unique union base nut allows removal of the body from riser for easy installation and maintenance
  • Features an integral 200 mesh (75 micron) filter which is easily serviceable from the top of the unit



4.5 out of 5 rating is our rating for PlumbersStock, we got that rating because we have lots of experience and great people with expertise in plumbing. BUT WE WANT YOUR HELP. This product doesn't have any reviews yet, and we don't want to write our own reviews. It is more valuable to us that the customers get to share their experience with our products. Please, if you have any experience with this product, take a moment to share and help someone else who is trying to make a decision. Thank you!

Questions & Answers


Thank you for your interest in the Rainbird XBD81! According to the manufacturer, this 8-port Xerigation Outlet Manifold has 3 rings within. The smallest in size is black and measuring 1/2" in diameter, the middle is orange and measuring 1-1/4" in diameter with 1.6mm thickness, and the largest is orange which measures 3" in diameter with 1.6mm thickness. The manufacturer also recommended the XBD8SCRN Replacement 200 Mesh Filter Screen & O-rings repair kit if needed, it’s not yet available on our website but we can order it from them for you. Just contact one of our knowledgeable customer service representatives @ 435-868-4020 or through e-mail @ Please refer to the specification sheet and the manufacturer’s catalogue if you have more questions. Once you’ve made your selection, always remember to click Add to Cart to confirm your order, enter your zipcode and you’ll be all set!
