16X5 White Stamped 2-Way Vent Cover – Shoemaker 850-0 Series

SKU: 126580


Manufacturer, ships quickly!

This product is NON-RETURNABLE. Please make sure you understand the item and the dimensions before ordering. By Clicking "Keep in Cart" below you are acknowledging that you understand that this product can not be returned.

16X5 White Stamped 2-Way Vent Cover – Shoemaker 850-0 Series

SKU: 126580

Ships From Price Qty
Order From Manufacturer
Manufacturer, ships quickly!

About the Shoemaker 850-0-16X5

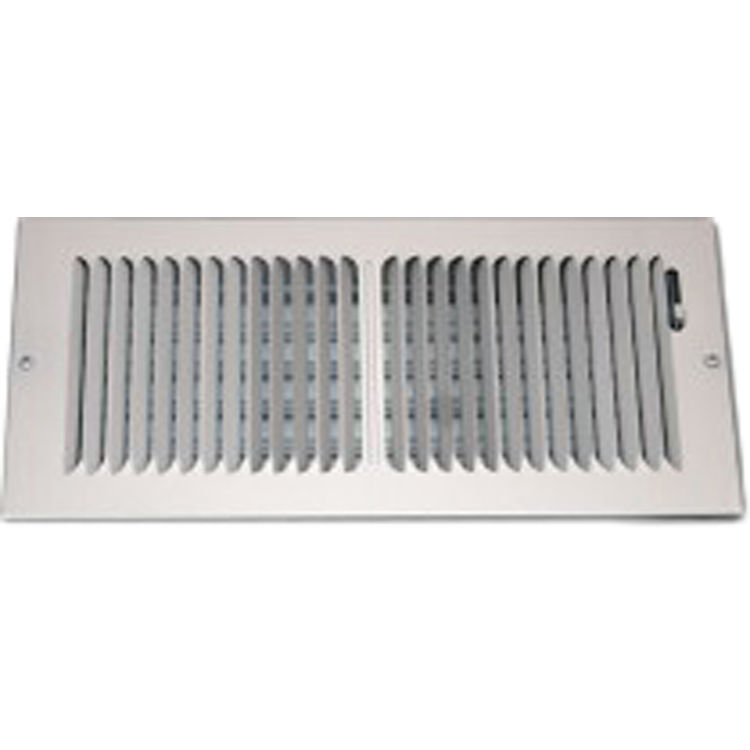

This White 16" x 5" Shoemaker 850-0 Series Vent Cover is designed to fit and cover a 16" wide by 5" high opening. Shoemaker has a complete line of products designed for homes, offices, stores, and many other commercial applications. The quality and simplicity of this stamped 2-way diffuser are only two of the many reasons why Shoemaker Manufacturing leads the field in innovative air-grille design for real world applications. The Shoemaker 850-0 Series vent cover comes with a lever operated opposed blade damper, a device that regulates airflow by linked sections of adjacent blades that rotate in the opposite direction. Compared to other damper types, an opposed blade damper maintains a more even airflow. It also provides better control over the airflow in all operating positions. For noise-free operation, this 2-way diffuser is designed with half-inch stabilized fan shaped louvers. Shoemaker is always looking for new ways to bring modern or classical design to your home. The Shoemaker 850-0 Series Stamped 2-Way Diffuser can be ordered with "F" Torx center pin tamper-proof screws for added security. Be sure to measure the hole opening size instead of measuring the face plate of your old grille. This grille is designed to cover a 16" x 5" existing hole or duct. Refer to the Specification Sheet for more information.

Product Details

Product: Air Grille and Registers
Manufacturer: Shoemaker
Use: Ducting and Venting
Mpn # 850-0-16X5
Weight 3.20 lbs.

Product Features

  • Optional tamper-proof screws are available
  • Optional designer colors: almond, black velvet, bronze, Camaro silver, coffee tan, Navajo white, vanilla
  • Optional metal plating finishes: Antique brass, black nickel, oil rub bronze, pewter, polished brass, polished chrome, satin nickel
  • Steel multi-shutter damper
  • 850-O - steel lever operated opposed blade damper
  • All component parts, rivets, linkage and handle enclosed in valve to assure easy operation
  • Countersunk mounting holes for flush appearance with color matching phillips posi-drive screws
  • For ceiling or sidewall applications
  • Soft white
  • Stamped 1/2 inch fan-shaped louvers for heating or cooling


4.5 out of 5 rating is our rating for PlumbersStock, we got that rating because we have lots of experience and great people with expertise in plumbing. BUT WE WANT YOUR HELP. This product doesn't have any reviews yet, and we don't want to write our own reviews. It is more valuable to us that the customers get to share their experience with our products. Please, if you have any experience with this product, take a moment to share and help someone else who is trying to make a decision. Thank you!

Questions & Answers


Howdy! Thank you for posting your question here on PlumbersStock concerning the Shoemaker 850-0-16X5 Vent Cover. Based on this Specification Sheet, the actual size is 1-5/8" more than the nominal size. Fitting a 16" W by 5" H opening, this vent cover has a rough-in or nominal size of 16" x 5". If we add 1-5/8" to its dimensions, that would give us 17-5/8" W and 6-5/8" H, its actual dimensions. Please don't hesitate to contact us if you have any further question or concern about this product. We thank you for choosing We are always happy to serve you!
