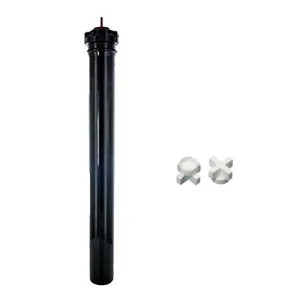

About the Toro 102-2834 570ZXF Series Pop-Up Sprinkler 12"
Toro's 102-2833
is a 12” Pop-Up Sprinkler with check valve from the 570ZXF Series. This sprinkler head features a zero-flush wiper seal which
eliminates flushing on system start up. This allows more sprinklers to be
installed on the same line as well as reducing water waste. This 12” pop-up
sprinkler can be used with hundreds of
Toro nozzles for a variety of combinations and provides for a wide range of
flexibility. The X-Flow
Technology prevents over 99% of water that would be wasted if
the nozzle was damaged or removed. This allows for maintenance to be done on
the system without turning it off.
This Pop-Up
Sprinkler has a 1 5/8” diameter body with a replaceable 2” cap. It can
handle a flow rate range of .05 GPM up to 4.5 GPM and has a pressure rating of 40 - 50 PSI.
This sprinkler head has a spray radius range of 2’ - 26’. It comes with the 570CV check valve that can handle up to 10’ of
elevation change and prevents low-head drainage. Toro 570Z Series Pop-Ups also
come with a stainless
steel retraction
spring that is corrosion-resistant
and a 2 year
manufacturer’s warranty.
