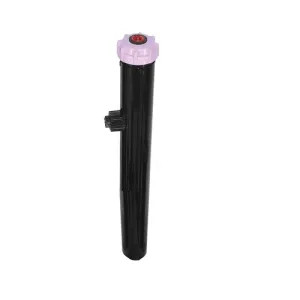

About the Toro 102-3117 570Z Series Pop-Up Sprinkler 12" efffluent and side inlet
Toro's 102-3117 is a 12” Effluent Pop-Up Sprinkler with reclaimed cap and side inlet from the 570Z Series for use with reclaimed water. This sprinkler head features a zero-flush wiper seal which eliminates flushing on system start up. This allows more sprinklers to be installed on the same line as well as reducing water waste. This 12” pop-up sprinkler can be used with hundreds of Toro nozzles for a variety of combinations and provides for a wide range of flexibility.
The Toro 102-3117 570Z Series 12” Pop-Up Sprinkler with reclaimed cap has a 1 3/4” diameter body with a replaceable 2” cap. It can handle a flow rate range of .05 GPM up to 4.5 GPM and has a pressure rating of 40 - 50 PSI. This sprinkler head has a spray radius range of 2’ - 26’. It also has the option of installing the 570CV check valve that can handle up to 10’ of elevation change and prevents low-head drainage.
Toro 570Z Series Pop-Ups also come with a stainless steel retraction spring that is corrosion-resistant and a 2 year manufacturer’s warranty.
