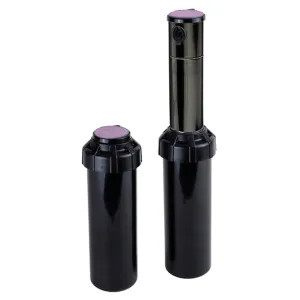

About the Toro T5PE Gear-Driven Rotor with 5" Popup, Effluent

The Toro T5PE is a gear-driven, 5" popup rotor sprinkler from the T5 Series. It has a lavender-colored rubber cover to indicate the usage of an effluent, reclaimed water system. The Toro T5PE has a 3/4" NPT inlet. This gear-driven, 5" popup rotor sprinkler is for use with reclaimed, non-potable water and has a pressure rating of 25 - 65 psi. The rotor assembly comes standard with a 3.0 gpm nozzle that has a 36' - 40' spray radius, but the flow rate and spray radius can be altered. Each Toro T5PE rotor comes with a nozzle tree of 8 standard-trajectory nozzles (25 degrees) and 4 low-angle nozzles (10 degrees). The spray arc can be set at a minimum of 40 degrees through a full-circle maximum of 360 degrees. A small slotted screw driver is all you need to adjust the arc from the top of the sprinkler, while it is popped up or down. This Toro T5PE rotor has a 5-year warranty.

Product: Rotor
Manufacturer: Toro Irrigation
Mpn # T5PE
Shipping Dimensions 7.5" x 3.0" x 3.0"
Weight 0.95 lbs.
  • For effluent irrigation systems, this rotor has a lavender-colored rubber cover to indicate the usage of non-potable, reclaimed water.
  • Top Adjust Arc Set: The T5 can be set between a minimum arc of 40 degrees and a full-circle of 360 degrees. Arc changes are made from the top of the sprinkler while popped up or down by using a small slotted screwdriver.
  • Optional RapidSet Arc Adjustment: With the optional T5 RapidSet, all arc adjustments (40 - 360 degrees) can be made quickly, with a few twists of the nozzle turret, using no tools. The RapidSet slip clutch prevents gear damage caused by vandalism or inexperienced users.
  • Airfoil Technology Nozzles: The T5 comes with a full set of 8 standard-trajectory nozzles (25 degrees) and 4 low-angle nozzles (10 degrees) that utilize patent-pending Airfoil technology, which creates a zone of low pressure just below the main stream to gently guide water downward for unmatched uniformity, without forcefully washing out seeds.
  • An optional check valve is available with a hold back strength of 7' (2.1 m) of elevation change.
  • The top of the sprinkler is covered with a heavy-duty rubber cap to minimize impact injuries and reduce liability.
  • The 5" (127 mm) popup easily replaces many competitive 4" (102 mm) units in the same footprint but delivers an extra inch (25 mm) of popup height.
  • Factory installed 3.0 gpm nozzle (unless specified).
  • Radius: 25-50 feet (7.6 - 15.2 m)
  • Inlet: 3⁄4" (19 mm) NPT
  • Body Height: Lawn pop-up: 7 1/2" (191 mm); Shrub: 7 3/4" (197 mm); High-Pop: 16 7/8" (429 mm)
  • Body Diameter: Lawn pop-up: 2 1/4" (57 mm); Shrub: 2 1/4" (57 mm); High-Pop: 2 1/4" (57 mm)
  • Cap Diameter: Lawn pop-up: 2 5/8" (67 mm); Shrub: N/A; High-Pop: 2 5/8" (67 mm)
  • Flow Rate: 0.76 - 9.63 gpm
  • Recommended Operating Pressure: 25-65 psi (1.7 - 4.8 bar)
  • Maximum Operating Pressure: 75 psi (5.2 bar)
  • 5-Year Warranty
