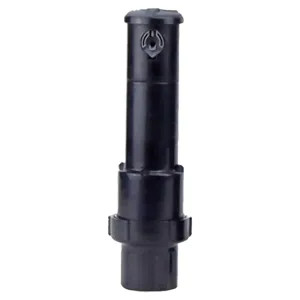

Toro T5S-RS Toro T5 RapidSet Shrub Rotor - T5S-RS

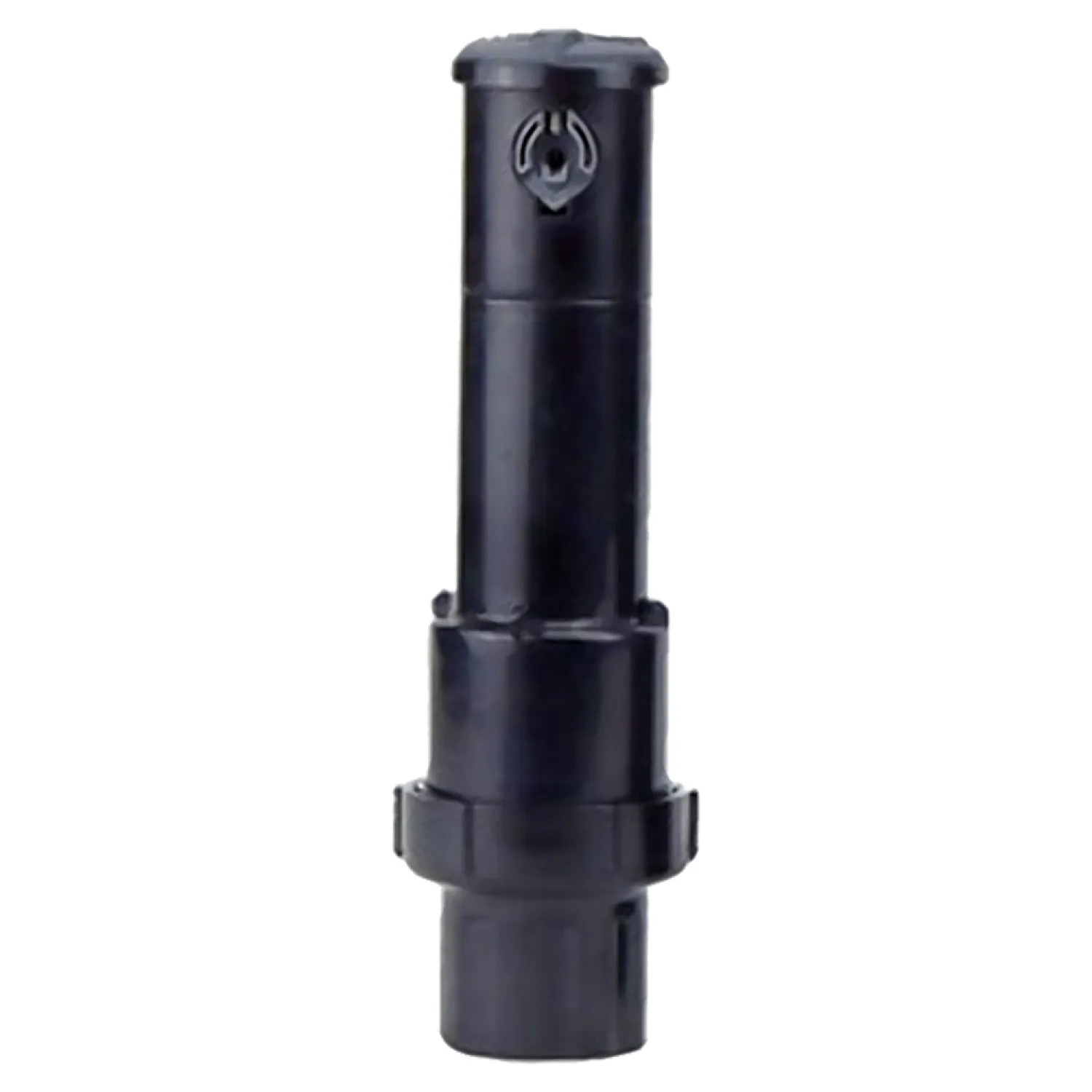

View 2 of Toro T5S-RS Toro T5 RapidSet Shrub Rotor - T5S-RS
View 3 of Toro T5S-RS Toro T5 RapidSet Shrub Rotor - T5S-RS

Product Options

Toro T5 RapidSet Shrub Rotor - T5S-RS

SKU: 507550
$ 4.19 / ea
Save 74% · Retail: $16.40

Exception ocurred: "file_put_contents(../resources/views/storeblade/product_pricing_leadtime.blade.php): failed to open stream: Permission denied"! In Stock and Ready to Ship


Ships From Price Qty

About the Toro T5 RapidSet Shrub Rotor - T5S-RS

This Toro T5S-RS T5 RapidSet shrub rotor has a check valve. The RapidSet slip clutch helps prevent gear damage and allows quick, easy arc adjustments from 40 to 360 degrees with NO TOOLS required. All T5 RapidSet Series rotors have a 3/4" inlet and come with nozzle trees that include 8 standard-trajectory nozzles (25 degrees) and 4 low-angle nozzles (10 degrees). AirFoil technology in the nozzles creates a low-pressure irrigation zone that gently guides water downward, just below the main stream, to uniformly distribute water. This Toro T5S-RS T5 RapidSet shrub rotor has a 5-year warranty.

Manufacturer: Toro Irrigation
Product: Rotor
Product Collection: T5 RapidSet
Color: Black
Style: Adjustable Circle
Flow Rate: 0.74 - 9.70 Gallons per Minute
Degree: 40-360 Degrees
Pressure Rating: 75 PSI
Mpn # T5S-RS
Weight 1.00 lbs.
  • RapidSet Arc Adjustment: 40 degrees to 360 degrees full circle with NO TOOLS required.
  • RapidSet slip clutch makes setting arc simple and prevents gear damage caused by vandalism or inexperienced users.
  • 5" Popup (127 mm) gives extra inch (25 mm) of nozzle clearance and easily replaces most competitive 4" popup rotors (102 mm) in the same footprint.
  • An optional check valve is available with a hold-back strength of 7 feet (2.1 m) of elevation change.
  • Trajectory: Nozzle tree includes 8 standard nozzles (25 degrees) and 4 low-angle nozzles (10 degrees).
  • Airfoil Technology: Unique nozzle-geometry delivers uniform distribution of water.
  • Factory installed 3.0 gpm nozzle (pre-installed 1.5, 2.0, and 2.5 gpm nozzle options available).
  • Radius: 25-50 feet (7.6 - 15.2 m)
  • Inlet: 3⁄4" (19 mm) NPT
  • Body Height: Lawn pop-up: 7 1/2" (191 mm); Shrub: 7 3/4" (197 mm); High-Pop: 16 7/8" (429 mm)
  • Body Diameter: Lawn pop-up: 2 1/4" (57 mm); Shrub: 2 1/4" (57 mm); High-Pop: 2 1/4" (57 mm)
  • Cap Diameter: Lawn pop-up: 2 5/8" (67 mm); Shrub: N/A; High-Pop: 2 5/8" (67 mm)
  • Flow Rate: 0.74 - 9.70 gpm
  • Operating Pressure Range: 25-65 psi (1.7 - 4.8 bar)
  • Recommended Operating Pressure: 45 psi (3.1 bar)
  • 5-Year Warranty
