Viega 15904 Viega 15904 6-Port Stainless Steel Manifold, 1-1/4

Printer friendly page

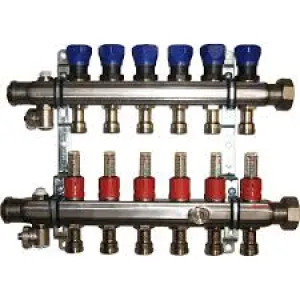

Viega 15904 6-Port Stainless Steel Manifold, 1-1/4" Union

SKU: 38484
Save 44% · Retail: $642.35

  Available to Ship in 4-5 weeks

Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks

About the Viega 15904

The Viega 15904 is a 6-port manifold systematically engineered to be used in closed-loop hydronic heating, cooling, and snow melting systems. It is made of corrosion-resistant stainless steel for maximum durability. This preassembled 1-1/4" diameter stainless supply and return manifold come attached to two 6-5/8" spacing brackets for compact remote mounting.

The Viega 15904 is equipped with a shut-off balancing valve and a flow meter, ensuring that the design flow rate, which is 2 GPM, is achieved at all times. It also comes with an air bleeder and a purge bar, which are connected and factory tested. This 6-port manifold has 1-1/4" Union connections and 1" NPT removable end caps.

Viega is a company that designs and manufactures plumbing- and material-related products that are driven by quality, integrated with both proven and innovative technology. PlumbersStock offers a wide range of products from Viega from fittings to manifolds. If you want quality and longevity, you will not go wrong with Viega. Get yours now here at PlumbersStock!

Product Details

Manufacturer: Viega
Product: Manifold
Use: Hydronic Heating
Connection Size: 1-1/4"
Connection Type: NPT
Flow Rate: 2.0 GPM
Pressure Rating: 100 PSI
Mpn # 15904
Shipping Dimensions 23.0" x 14.5" x 4.0"
Weight 8.00 lbs.

Product Features

  • High quality stainless steel
  • Pre-assembled
  • Bracket
  • Air bleeder
  • Purge valve
  • Supply shut off balancing valve
  • Supply flow meter valve
  • 6-port manifold
  • SVC, union connection, female pipe thread
  • 2 GPM at 100 PSI
  • 180-degree maximum temperature
  • Backed with Viega's written warrannty
