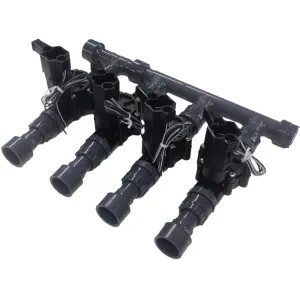

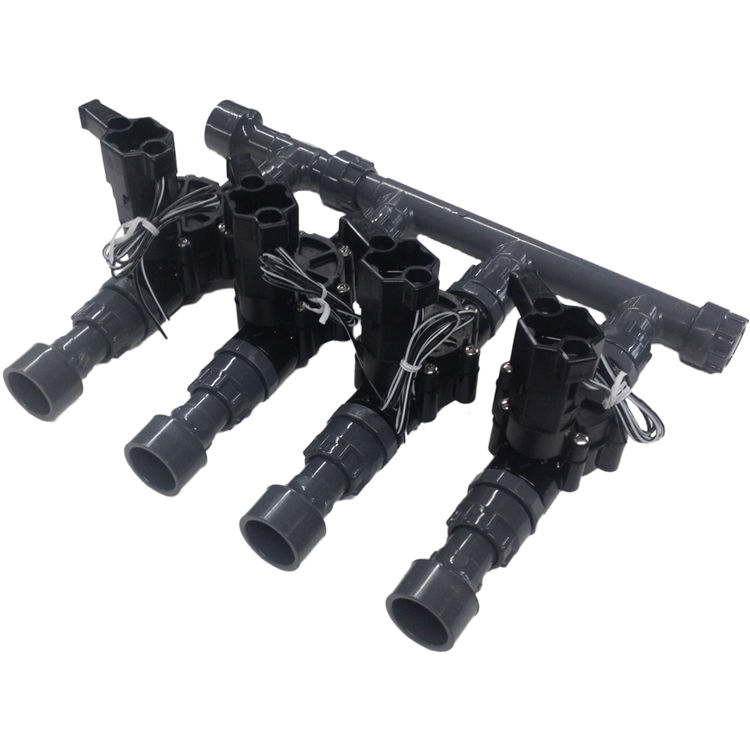

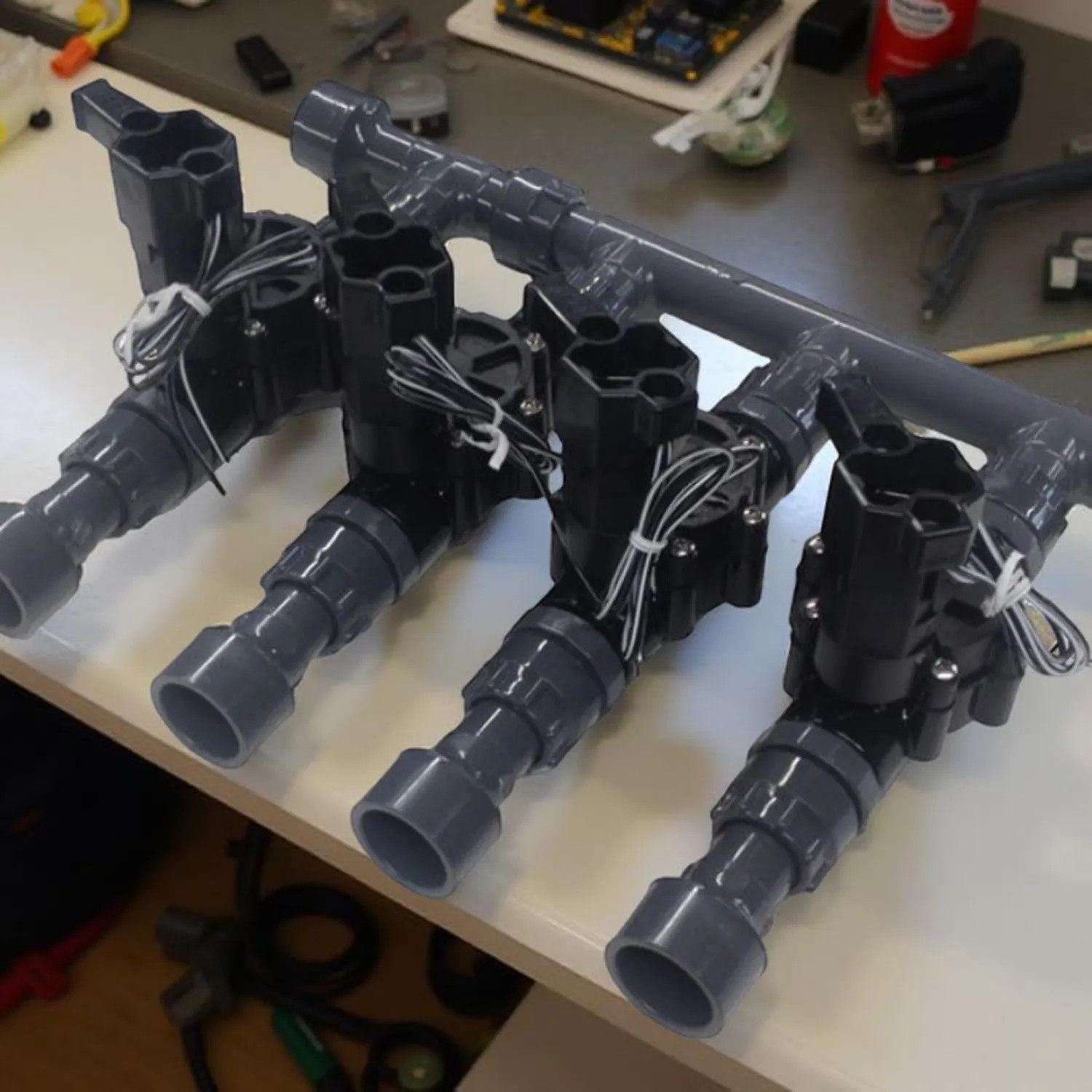

Rain Bird 100DV-DMF4 1" Dura Manifold 4 Valve Set-Up with Rainbird 100DV Valves

SKU: 108541
   based on 1 Reviews
$149.99/ea
 Free Shipping!

In Stock and Ready to Ship


Ships From Price Qty
Order From Manufacturer
In Stock and Ready to Ship
$149.99/ea

About the Pstock 100DV-DMF4

Expand your sprinkler zones with this Rain bird 100DV valve with the Dura DMF4 1" manifold in a 4-valve setup. With this setup, you don't have to stress yourself in choosing a valve and a manifold separately.


Rain bird's 100DV series comes with features beneficial to your sprinkler system and, along with the Dura 1" manifold, will surely increase the lifespan and decrease maintenance of your sprinkler system. The Rain bird 100DV offers a low-power encapsulated solenoid which improves energy-efficiency without decreasing performance and a balanced-pressure diaphragm (Buna-N) for added durability. It's Buna-N diaphragm comes with a 200-micron self-cleaning water filter pilot and captive spring which reduces downtime due to dirt in the system. Dirt and debris can easily be removed thanks to its external bleed flushing capabilities. Optimum reliability is assured by a double-filtered pilot-flow design, an internal bleed for spray-free manual operation, and can even operate in Xerigation and low-flow applications when the RBY filter is installed upstream.


Rain bird and Dura are both tested and proven products in their respective field, and PlumbersStock has seen it fit to pair those products together to create a ready-to-use, already-assembled sprinkler valve manifold for you. No hustle and less trouble.

Product Details

Product: Manifold
Manufacturer: Rainbird
Type: Valve Set
Trade Tool Type: Landscape & Garden
Mpn # 100DV-DMF4
Weight 8.50 lbs.

Product Videos

How Do Irrigation Valves Work?
Manual operation of Rain Bird valves

Product Features

  • 4-valve manifold setup
  • 1 in. (26/34) standard in-line configuration
  • Double-filtered pilot-flow design for maximum reliability
  • Balanced-pressure diaphragm for long life
  • External bleed to manually flush system of dirt and debris during installation and system start-up
  • Internal bleed for spray-free manual operation
  • Energy-efficient, low-power encapsulated solenoid with captured plunger and 90-mesh (200 micron) solenoid filter
  • Works with any standard sprinkler timer
  • Buna-N diaphragm with self-cleaning 90 mesh (200 micron) pilot water filter and captive spring
  • Operates in low-flow and Xerigation applications when the RBY filter is installed upstream
  • 1.25 in. (3,2 cm) stainless steel phillips head screws
  • Accepts latching solenoid for use with Rain Bird battery-operated controllers
  • 0.2 to 40 GPM
