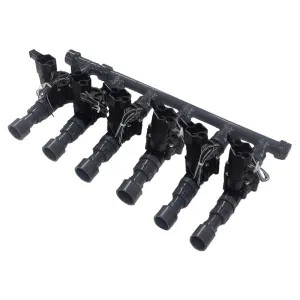

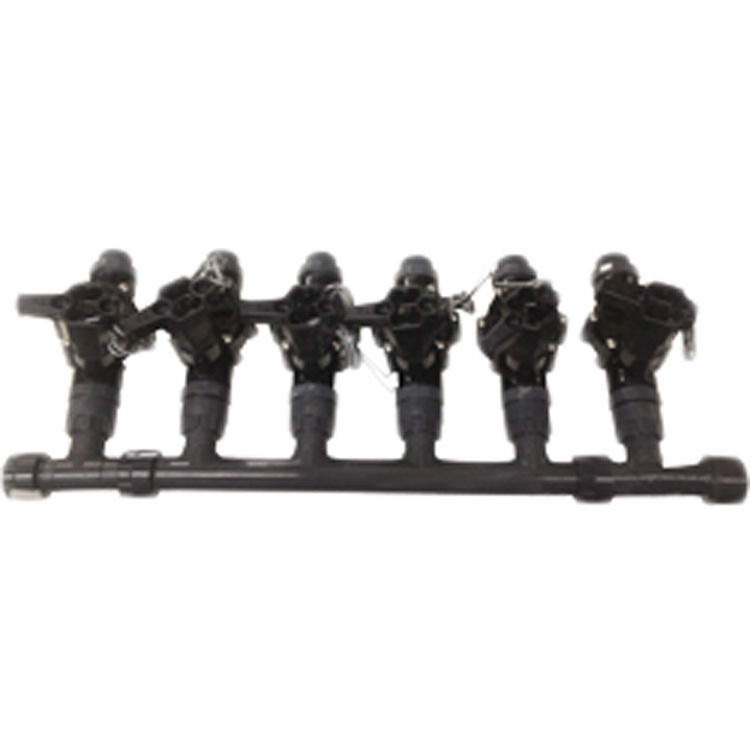

Rain Bird 100DV-DMF6 1" Dura Manifold 6 Valve Set-Up with Rainbird 100DV Valves

SKU: 108543

$131.91/ea
Save 47% · Retail: $246.85

In Stock and Ready to Ship
More Buying Options


Ships From Price Qty
Nevada Warehouse
Available to Ship in 3-5 days
$131.91/ea 4
Order From Manufacturer
Available to Ship in 6-8 weeks
$131.91/ea

About the Pstock MANIFOLD6100DV

Expand your sprinkler zones with this Rain bird 100DV valve with the Dura DMF6 1" manifold in a 6-valve setup. With this setup, you don't have to stress yourself in choosing a valve and a manifold separately.

Rain bird's 100DV series comes with features beneficial to your sprinkler system and, along with the Dura 1" manifold, will surely increase the lifespan and decrease maintenance of your sprinkler system. The Rain bird 100DV offers a low-power encapsulated solenoid which improves energy-efficiency without decreasing performance and a balanced-pressure diaphragm (Buna-N) for added durability. It's Buna-N diaphragm comes with a 200-micron self-cleaning water filter pilot and captive spring which reduces downtime due to dirt in the system. Dirt and debris can easily be removed thanks to its external bleed flushing capabilities. Optimum reliability is assured by a double-filtered pilot-flow design, an internal bleed for spray-free manual operation, and can even operate in Xerigation and low-flow applications when the RBY filter is installed upstream.

Rain bird and Dura are both tested and proven products in their respected field, and PlumbersStock has seen it fit to pair those products together to create a ready-to-use, already-assembled sprinkler valve manifold for you. No hustle and less trouble.


Product Details

Product: Manifold
Type: Valve Set
Trade Tools: Landscape & Garden
Color: Black
Mpn # MANIFOLD6100DV
Weight 12.50 lbs.

Product Features

  • 6-valve manifold setup
  • 1 in. (26/34) standard in-line configuration
  • Double-filtered pilot-flow design for maximum reliability
  • Balanced-pressure diaphragm for long life
  • External bleed to manually flush system of dirt and debris during installation and system start-up
  • Internal bleed for spray-free manual operation
  • Energy-efficient, low-power encapsulated solenoid with captured plunger and 90-mesh (200 micron) solenoid filter
  • Works with any standard sprinkler timer
  • Buna-N diaphragm with self-cleaning 90 mesh (200 micron) pilot water filter and captive spring
  • Operates in low-flow and Xerigation applications when the RBY filter is installed upstream
  • 1.25 in. (3,2 cm) stainless steel phillips head screws
  • Accepts latching solenoid for use with Rain Bird battery-operated controllers
  • 0.2 to 40 GPM

Reviews

4.5 out of 5 rating is our rating for PlumbersStock, we got that rating because we have lots of experience and great people with expertise in plumbing. BUT WE WANT YOUR HELP. This product doesn't have any reviews yet, and we don't want to write our own reviews. It is more valuable to us that the customers get to share their experience with our products. Please, if you have any experience with this product, take a moment to share and help someone else who is trying to make a decision. Thank you!

Questions & Answers

*PLUMBERSSTOCK EXPERT* responded:

Thank you for your interest in our Dura Manifold 6 valves set-up with the Rainbird 100DV valves! According to the manufacturer, you will need the Dura 08303-131 reducing nipple/adapter to have the ¾” output. This manifold system only has a 1” output and input. Please refer to the specification sheet if you have more questions for the Rainbird 100DV valves. If you need assistance in creating an efficient irrigation system for your lawn and garden, PlumbersStock is offering that for FREE! Simply visit our Sprinkler Design Center to get started. Once you’ve made your selection, always remember to click Add to Cart to confirm your order, enter your zipcode and you’ll be all set! For availability inquiries, or to better understand lead and ship times, please contact one of our knowledgeable customer service representatives @ 435-868-4020 between 8:00 AM to 7:00 PM MT or through e-mail @ support@plumbersstock.com. You can also sign up for our Newsletter!

*PLUMBERSSTOCK EXPERT* responded:

Hi! Thank you for your interest in our Dura Manifold 6 valves set-up with the Rainbird 100DV valves. It has a swivel connection. If this is what you're looking for, feel free to click on the Add to Cart button. Enter your zip code to get a shipping cost estimate and proceed to checkout to begin the ordering process. If you need assistance in creating an efficient irrigation system for your lawn and garden, PlumbersStock is offering that for FREE! Simply visit our Sprinkler Design Center to get started. Thanks for choosing PlumbersStock.com as your online shopping buddy. Have a great day!

*PLUMBERSSTOCK EXPERT* responded:

Good day! We appreciate your interest in our Dura Manifold 6 valves set-up with the Rainbird 100DV valves. No, the Input is a 1" solvent weld connections and the outlet is 1" manifold thread. It is designed to be added upon if needed. You will need a 1" Female adapter to conver to NPT. Feel free to click on Add to Cart, enter your zip code to get a shipping cost estimate, and proceed to checkout to begin the ordering process. If you need assistance in creating an efficient irrigation system for your lawn and garden, PlumbersStock is offering that for FREE! Simply visit our Sprinkler Design Center to get started. Thanks for choosing PlumbersStock.com as your online shopping buddy. Have a great day!

*PLUMBERSSTOCK EXPERT* responded:

Hi, there! Thank you for inquiring with us. Yes, Rainbird does not recommend the use of a 2-wire system for the DV/DVF Series of irrigation valves. The difference is that DVF models feature a unique patented easy-to-turn pressure assisted flow control mechanism. But for the most part, they're almost identical. You can take a look at this valve installation manual for further details. Thank you and we hope to see you again here at PlumbersStock.com!
