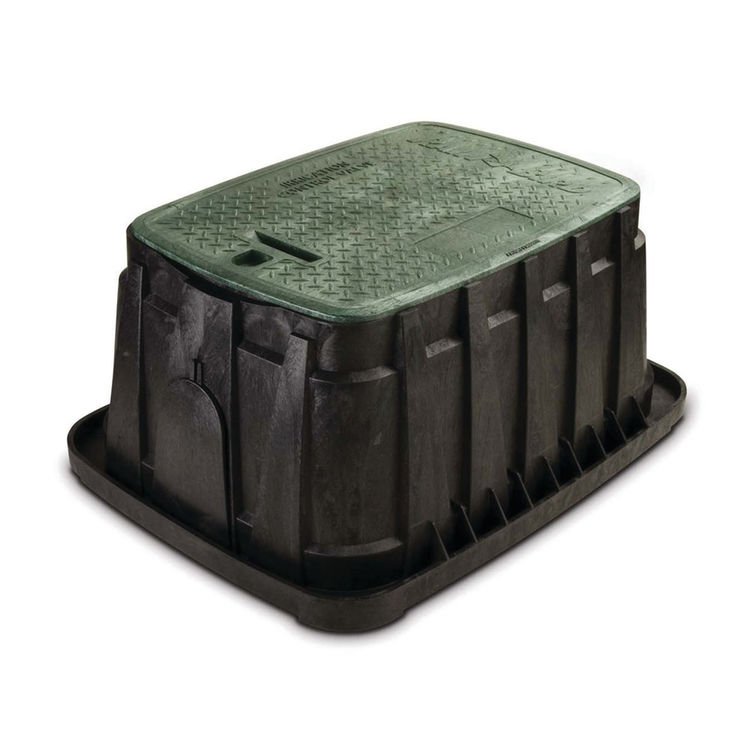

Rain Bird VBJMB - Jumbo Valve Box w/ Green Lid

SKU: 7510
   based on 2 Reviews
Save 20% · Retail: $72.71

In Stock and Ready to Ship
More Buying Options

Ships From Price Qty
Nevada Warehouse
Available to Ship in 3-5 days
$58.35/ea 22
Order From Manufacturer
Available to Ship in 1-2 weeks

About the Rainbird VBJMB

Save with a discount price on the Rain Bird VB-JMB Jumbo Valve Box w/ Green Lid at PlumbersStock. This is a rectangular Jumbo valve box with a green lid. This valve box meets or exceeds the industry standards for strength and durability. It features beveled lid edges that help prevent damage to lids from lawn equipment. For use with any sprinkler system designs

Product Details

Product: Parts and Accessories
Use: Water
Shipping Dimensions 13.0" x 25.0" x 19.0"
Weight 16.00 lbs.
Shipping Dimensional Weight 35.01 lbs.

Product Features

  • Shovel access slot on body allows for easy lid removal.
  • Wrench grip on lid makes it easier to remove the lid
  • Easily removable knock-outs simplify pipe placement and reduce installation time. Two large center knock-outs accommodate up to 3.5" diameter pipe. (Extensions do not have knock-outs.)
  • Knock-out retainers hold removed knock-outs in place above the pipe to help keep dirt out during backfill.
  • Corrugated sides provide strength both before and after knock-outs are removed.
  • Beveled lid edges help prevent damage to lids from lawn equipment.
  • Bolt hole knock-out in the lid keeps insects out of the box when bolt is not used.
  • Available lid colors are green, black and purple (to indicate non-potable water).


Rated 5 out of 5 based on 2 reviews

 Rated 5 by John H.
Great product
Originally posted on Sep/2016

Great Item Rated 5 by anonymous
A large box that is deep. Two easy opening on two ends, but I had to cut some extra slots in the box to allow me to get the box deep enough in the ground as my lines were not deep enough and was keeping the box too high. Even though I cut some slots in the box, it is still very solid.
Originally posted on Sep/2016

Questions & Answers


Good day! This Specification Sheet doesn't specifically tell about the lid's dimensions but if you base it on this video, the lid will most likely match with this Rainbird VBJMB valve box's maximum top opening dimensions. According to that same document, this valve box has maximum top opening dimensions of 22.3" x 15.8". If this is what you need, order it now by clicking on Add to Cart and entering the required information. If you want to get FREE assistance in creating an efficient irrigation system, you may also visit our Sprinkler Design Center. Thank you for seeking answers from!


Thank you for your interest in the Rain Bird VB-JMB Jumbo Valve Box. Yes, they are. This valve box can be stacked or interlocked for larger and deeper applications. For more information, please refer to the Specification Sheet posted at the "Resources" section of this page. If you're interested in buying this product, don't hesitate to click on*Add to Cart to start the ordering process. Valve box extensions are also available. There is the VB-STD-6EXT, the standard 6" extension, and the VB-JMB-6EXT, the jumbo 6" extension. These valve box extensions are not yet on but feel free to contact our Customer Service Department at 435-868-4020 from 7 AM to 7 PM MST (Mon-Fri) or through They will be happy to assist you. Happy shopping!
