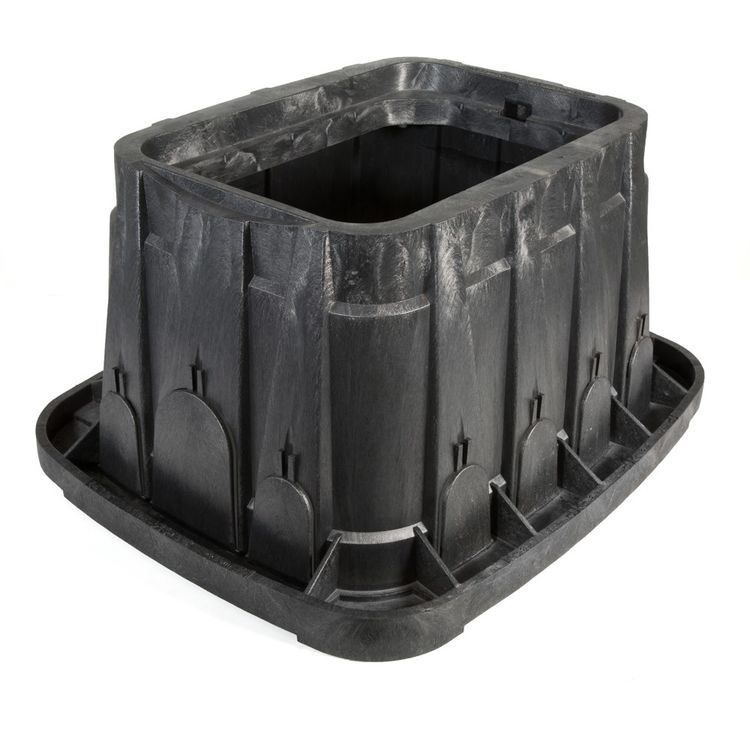

RainBird VB-STD-B (A11403) Standard Valve Box, Body Only

SKU: 41645
Minimum Quantity: 1

$22.83/ea
Save 30% · Retail: $32.74

In Stock and Ready to Ship!


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$22.83/ea

About the Rainbird VBSTDB

The RainBird VB-STD-B standard rectangular valve box (part number A11403) is the body only and does not include a lid. This valve box body is designed to protect in-ground irrigation valves and other subsurface system components; and it can be stacked bottom-to-bottom with another standard valve box for a deeper installation of system parts. Constructed of durable, high-density polyethylene (HDPE), this RainBird VB-STD-B valve box body resists damage from impact, UV light, weather, moisture, and soil contact. All of the black-colored parts of RainBird valve boxes are built from 100% recycled HDPE, making them environmentally friendly and LEED compliant. RainBird VB Series valve boxes feature corrugated sides, giving them greater compression strength and increased stability under heavy loads. Inferior valve boxes require bricks underneath to prevent settling, but the wide flange base of VB Series boxes reduces settling and eliminates the cost and labor of installing bricks. Outside dimensions of the RainBird VB-STD-B (part number A11403) are 12.1" high and 17.5" long x 13.0" wide at the top, and measure 23.2" x 19.3" at the base. On the inside, the openings are 14.5" x 9.4" at the top and 18.7" x 14.1" at the bottom. A total of 13 knock-outs are easy to remove for placing pipe, and they can be slipped back into their retainers above pipes to stop backfill dirt from getting inside. This high-quality product is protected by a 5-year warranty. Founded in 1933, RainBird has a long-standing commitment to "The Intelligent Use of Water" and provides the industry's broadest range of irrigation products and services for agriculture, commercial developments, golf courses, sports venues, and homes in over 130 countries worldwide.

Product Details

Product: Boxes and Covers
Manufacturer: Rainbird
Color: Black
Material: Plastic
Shape: Rectangle
Use: Irrigation
Mpn # VBSTDB
Shipping Dimensions 23.2" x 19.3" x 12.1"
Weight 11.10 lbs.
Shipping Dimensional Weight 30.72 lbs.

Product Videos


Product Features

  • Model VB-STD-B includes the valve box body only, no lid.
  • Installation flexibility with interlocking, bottom-to-bottom stacking of valve boxes (optional extension models also available) for larger and deeper applications.
  • Easily removable knock-outs simplify pipe placement and reduce installation time.
  • Knock-out retainers hold removed knock-outs in place above pipes to keep backfill dirt out of valve box.
  • Two large center knock-outs (one on each end) accommodate up to 3.5" diameter pipe, and eleven small knock-outs accommodate up to 2.0" diameter pipe. Optional extensions do not have knock-outs.
  • Made of sturdy, high-density polyethylene (HDPE) structural-foam resin, this valve box has superior resistance to impact, UV light, weather, moisture, and chemical action of soils.
  • All black bodies and black lids are constructed from 100% recycled materials, making them earth-friendly and LEED compliant.
  • Corrugated sides protect valves with maximum durability, compression strength, and stability under heavy loads.
  • Wide-flange base anchors the box to grade and minimizes settling.
  • Shovel access slot on body allows for easy lid removal.
  • Available lid colors are green, black, and purple (to indicate non-potable water).
  • Height: 12.1" (30.7 cm)
  • Top Opening: 14.5" x 9.4" (36.8 cm x 23.9 cm)
  • Top Outer Dimensions: 17.5" x 13.0" (44.4 cm x 33.1 cm)
  • Bottom Opening: 18.7" x 14.1" (47.6 cm x 35.9 cm)
  • Bottom Outer Dimensions: 23.2" x 19.3" (59.0 cm x 49.0 cm)
  • Industry-best, 5-year warranty.
